Part Number: LSAP-MM-6MTPDZ

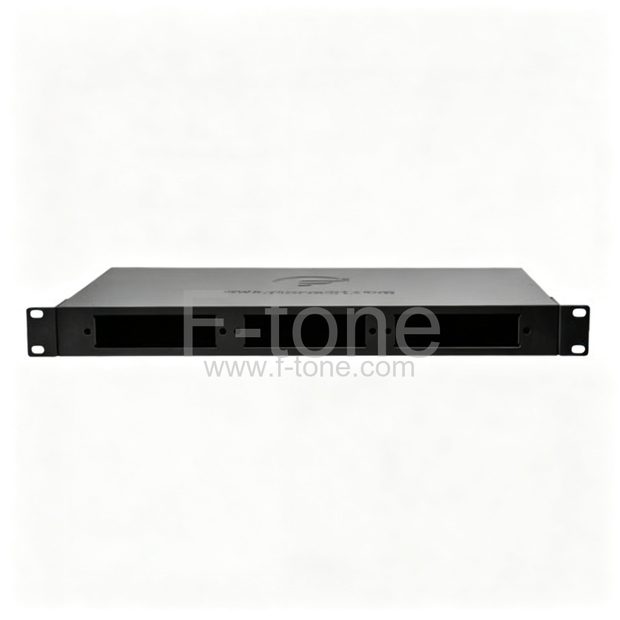

6-pack MPO/MTP Leviton LightSpace Compatible (LGX footprint) Fiber Adapter Panels (FAPs)
FT002 SERIES ADAPTER PANELS
Our F-tone offers FT002 series adapter panels for use in many of our inside and outside plant enclosures. Our standard plates come in 6-, 8- and 12-pack for LC, SC, ST, or MTP connectors and shall be made of metal or plastic with a powder coated finish. Simple captive push/pull fasteners make these plates easy to install and remove for service.
Features of FT002 SERIES ADAPTER PANELS
- Available in 6-, 8-, and 12-packs
- Available in SC, ST, LC, and MTP®
- Compatible with Leviton Lightspace molded fiber adapter panels
- Captive push/pull fasteners allow for quick, tool-free installation and removal
- Phosphor bronze sleeve used on multimode, Zirconia ceramic sleeve used on 50/125 μm laser
- Industry standard style (LGX® footprint) adapter plates fit in all LightSpace wall-mount, rack-mount, rack-mount enclosures, and NIDsCompatible with: DP Series Optical Distribution Enclosures; DPC Series Optical Distribution & Splice Enclosures; CPC Series Customer Premise Enclosure NIDs (502H & 3500)
Specifications
- Connection styles: MTP
- Dimensions:5.11”x1.12”x0.275”(L * W * T)
- Color: Black
- Fibers:72 fibers
- Pack:6 pack
- Fiber Type: Multi- Mode
- Adapter Plate Material:Metal
F-tone.Com MPO/MTP Leviton Compatible Fiber Adapter Panels (FAPs)
| 6 Pack MPO/MTP Leviton Compatible Fiber Adapter Panels (FAPs) | |||||
| F-tone FAPS# | SERIES | FIBER TYPE | COLOR | KEY-UP/KEY-DOWN & KEY-UP/KEY-UP | MFG PART# |
| LSAP-MM-6MTPDZ | LightSpace | MM | Black | key-up/key-down | APLW6-6MP |
| AP-6MTPSX-UUD | Opt-X | SM/MM | key-up/key-down | 5F100-6MP* | |
| key-up/key-up | 5F100-6MB* | ||||
| 8 Pack MPO/MTP Leviton Compatible Fiber Adapter Panels (FAPs) | |||||
| F-tone FAPS# | SERIES | FIBER TYPE | COLOR | KEY-UP/KEY-DOWN & KEY-UP/KEY-UP |
MFG PART# |
| AP-8MTPSX-UUD | Opt-X | SM/MM | Black | key-up/key-down | 5F100-8MP* |
| key-up/key-up | 5F100-8MB* |
Packaging of Fiber Adapter Panels
F-tone provide exquisite appearance, high quality packaging for fiber adapter panels at different sizes, this packaging can protect your product from getting damaged largely. What’s more,the logo on the packaging can be customized as requirement.
- Connection styles: MTP
- Dimensions:5.11”x1.12”x0.275”(L * W * T)
- Color: Black
- Fibers:72 fibers
- Pack:6 pack
- Fiber Type:Muti- Mode
- Material:Metal
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
