Part Number: MCAC-24B1.1

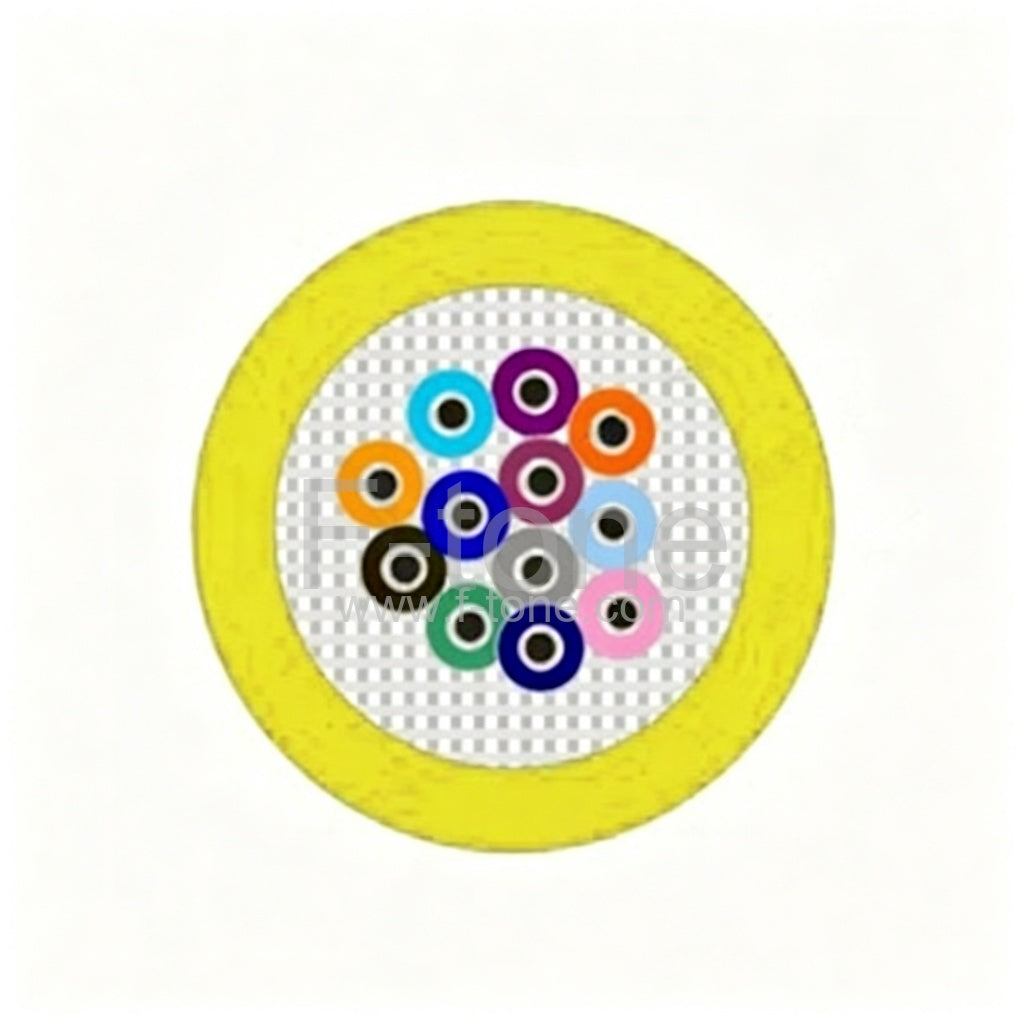

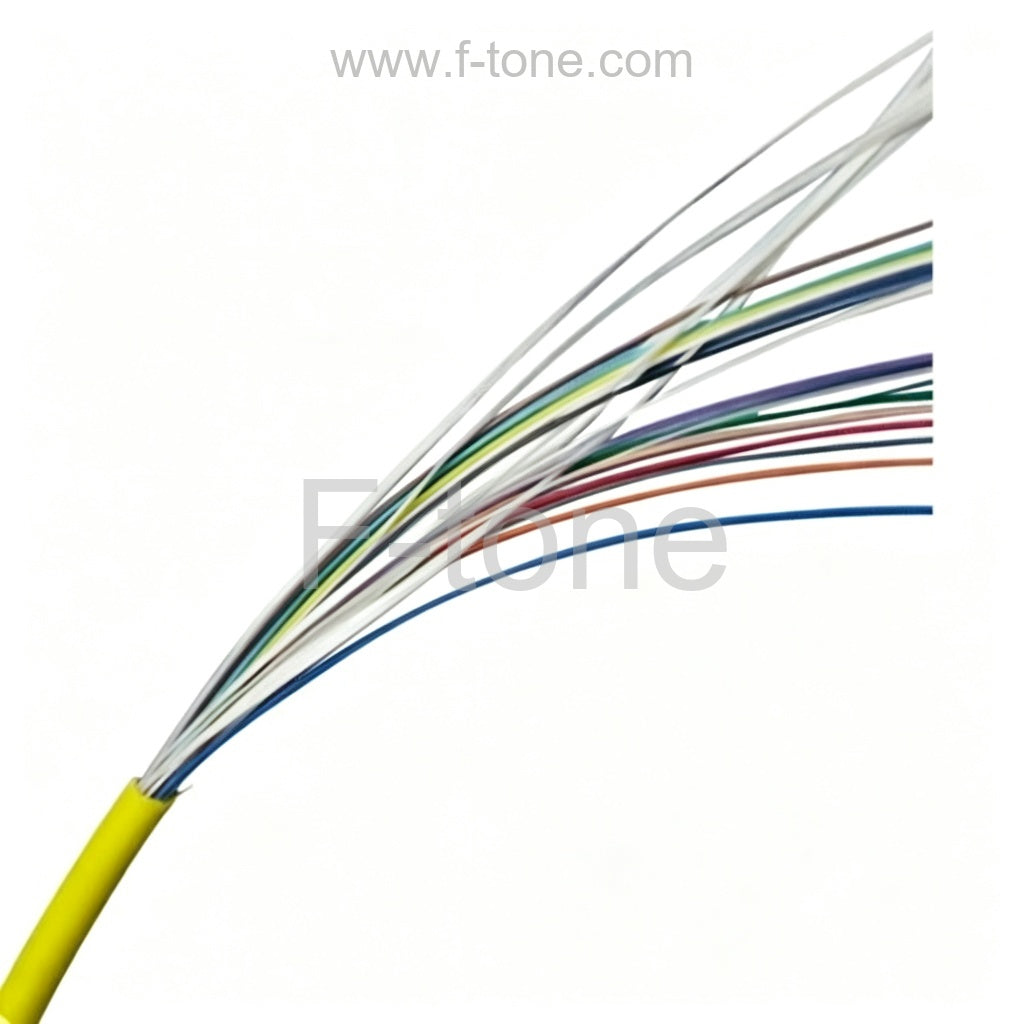

24 Fibers Singlemode Armored Fiber Optic Cable Multi-core Tight Butter Indoor Fiber Cable
This cable is suitable for indoor level and vertical cabling, it could be laid out directly along with indoor wall and ceil. 1~2 fibers cable could work as armored jumper and pigtails.
The cable consist of several 0.6mm tight buffer fibers, armored flexible metal tube, a layer of Kevlar yarn, and a outer jacket.
Item Details
- Fiber Count : 12 Fibers
- Fiber Type: Single-mode G.652D
- Outer Jacket: LSZH
Cable Structure
- Good mechanical property and environment property.
- Soft, agility, convenience for connect.
- LSZH Jacket provide good fame resistant performance.
- Flexible metal tube and outer jacket provide good performance of high compression resistant,high tensile resistant,rat –bite resistant.
- This cable is suitable for indoor level and vertical cabling, it could be laid out directly along with indoor wall and ceil. 1~2 fibers cable could work as armored jumper and pigtails.
- The cable consist of several 0.6mm tight buffer fibers, armored flexible metal tube, a layer of Kevlar yarn, and a outer jacket.
- Single-mode:9/125µm; Multi-mode: 62.5/15µm & 50/125µm Optional.
- Pigtails and Patch cord
- Ideal for use in optical device, equipment
- Ideal for use in optical distribution frame
Package
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
| Cable Count | Out Sheath Diameter |
Weight | Minimum Allowable Tensile Strength (N) |
Minimum Allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage Temperature |
|||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 1 | 3 | 12 | 200 | 100 | 5000 | 3000 | 20D | 10D | -40+60 |
| 2 | 3 | 18 | 200 | 100 | 5000 | 3000 | 20D | 10D | -40+60 |
| 4 | 4 | 70 | 300 | 150 | 5000 | 3000 | 20D | 10D | -40+60 |
| 6 | 4.5 | 70 | 300 | 150 | 5000 | 3000 | 20D | 10D | -40+60 |
| 8 | 5 | 80 | 400 | 200 | 5000 | 3000 | 20D | 10D | -40+60 |
| 12 | 6 | 100 | 400 | 200 | 5000 | 3000 | 20D | 10D | -40+60 |
| G.652 | 50/125µm | 62.5/125µm | ||
| Attenuation (+20°C) (dB/km) |
@850nm | ≤3.0 | ≤3.0 | |
| @1300nm | ≤1.0 | ≤1.0 | ||
| @1310nm | ≤0.36 | |||
| @1550nm | ≤0.22 | |||
| Bandwidth (Class A) (MHz·km) | @850nm | ≥600 | ≥200 | |
| @1300nm | ≥1200 | ≥600 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc (nm) | ≤1260 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
