Part Number: MEMS-VOA-M-Mini-1064

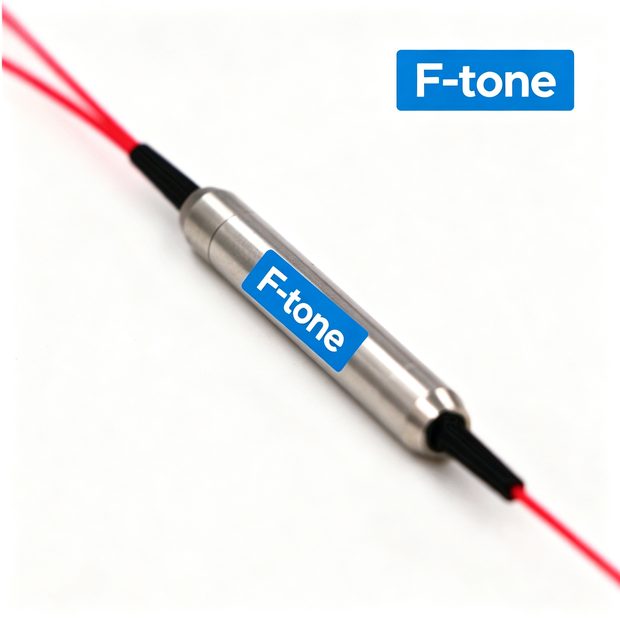

MEMS Variable Optical Attenuator 0-30dB 1064nm Multimode Min, multimode attenuator
Multi-Mode VOA is a VOA special product in Mini-VOA family supporting multi-mode laser attenuation. Based on the base design for single-mode VOA, special considerations are given in design and manufacturing process to achieve the desired performance in multi-mode operation. TheMMVOA is an critical component for multi-mode laser system with uncompromised performance. multimode attenuator
Features
•Miniature design in a TO46 package
•Hermetically sealed
•Low insertion loss (IL)
•Large attenuation range
•High attenuation accuracy
•Low power consumption
•Fast response time
•High optical power handling
•Telcordia GR-1209 & GR-1221 compliant
Dimension
Ordering Information
| Drive Voltage: |
Attenuation Type: |
Wavelength Range: |
Attenuation Range: |
Fiber Type: | Connector Type: |
Fiber Protection: | Fiber Length: |
|---|---|---|---|---|---|---|---|
| M 6.5V | B Bright | O 1310nm | 20 20dB | 1 50/125 | 0 None | 0 No jacket | 1: 1m |
| D Dark | S 850nm | 2 62.5/125 | 1 FC/UPC | 1 0.9mm OD | |||
| 2 FC/APC | jacket | ||||||
| 3 SC/APC | |||||||
| 4 LC/UPC |
| Parameter | Specification | Unit | |
|---|---|---|---|
| FiberType | CorningHI1060 | um | |
| WavelengthRange | 1060±10 | nm | |
| AttenuationRange | Min | 30 | dB |
| InsertionLoss(withoutConnector) | Max | 0.8 | dB |
| OpticalReturnLoss | Min | 45 | dB |
| TotalOpticalPower | Max | 500 | mW |
| DriveVoltage(DC) | Max | 6 | V |
| FiberLength | Min | ＞100 | cm |
| PackageDimension(DXL) | (Φ)5.4mm*(L)28mm | mm | |
| Configuration | Bright/Dark | ||
| OperatingTemperature | -5~70 | ℃ | |
| StorageTemperature | -40~85 | ℃ | |
| PowerConsumption | 10 | mW | |
| FiberPackage | 250umbarefiber | ||
| FiberMarking | Inputport:Red |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
