Part Number: MFMC-DF-SM-G60-FA

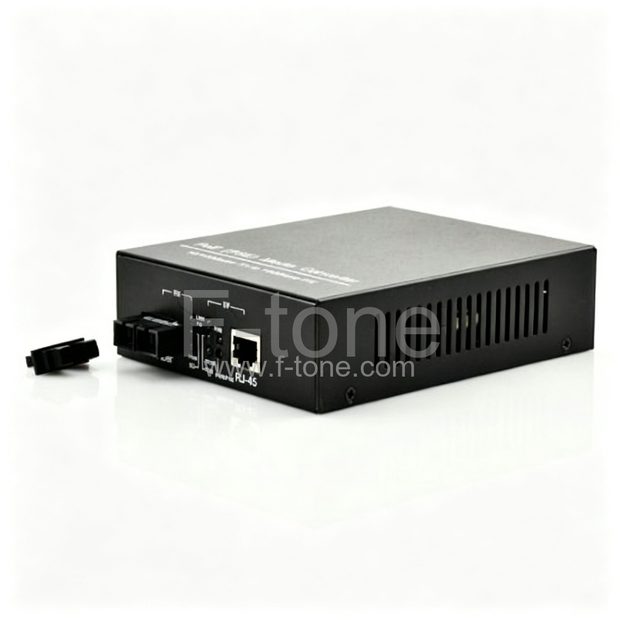

Mini Gigabit Media Converter 1000M Dual Fiber 60km
Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.
F-tone.COM supply 10/100Base Ethernet Fiber Media Converters, 1000Base Gigabit Fiber Media Converter,SFP Fiber Media Converter, Options in singlemode dual fiber, multimode dual fiber and singlemode single fiber. We also supply Media Coverter Chassis, the 1U height 12 slots media converter rack mount chassis specially designed for accommodating chassis-based mini Media Converters
Features
- AutoCross™: Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.
- Link Pass Through: Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal.
- Automatic Link Restoration: The media converters will automatically re-establish link in all network conditions.
- Jumbo Frames is available for the 1000M media converter with 1 RJ45 port + 1 fiber port. Any questions, please feel free to contact us at [email protected] for more details.
Key Features
- 1000Base-TX UTP to 1000Base-FX fiber media convertion
- Support IEEE802.3U, IEEE802.3z, 1000Base-TX/FX standards
- Choice of SC, LC, BiDi or other connectors for multimode and singlemode
- DIP switch to set different configurations
- Compact package size
Applications:
1000M Ethernet Network Distances
It use the 1000BASE-T to 1000BASE-X speed setting (back-to-back) to extend the distance between two 1000BASE-T devices up to 80km. using single mode fiber without a repeater.
Technical Specifications
| Data Rates | 1000Mbps |
|---|---|
| (IEEE802.3U IEEE802.3z 1000Base-Tx) | |
| 1000Mbps (1000Base-FX) | |
| Input Power Requirements: | |
| Input voltage | DC 5-12V |
| Power consume | 3 Watts maximum |
| Environmental Conditions: | |
| Operating temperature | 0℃ to 40℃ |
| Cooling | free air convection |
| Storage temperature | -20℃ to +85℃ |
| Operating Humidity | 90% max, non-condensing |
| Mechanical Specifications: | |
| Case Material | Iron |
| Case Color | Black |
| Net Weight | 150g approx. /unit |
| Dimensions | 60 (W) x 20 (H) x 90 (L) (mm) |
Label Customized
Note: We can design Fiber Media Converter label for your company according to your requirements. Print any logo in the label is for free. If you need to print your company logo on the equipments, MOQ is 1000pcs.
please contact [email protected] for more details.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
