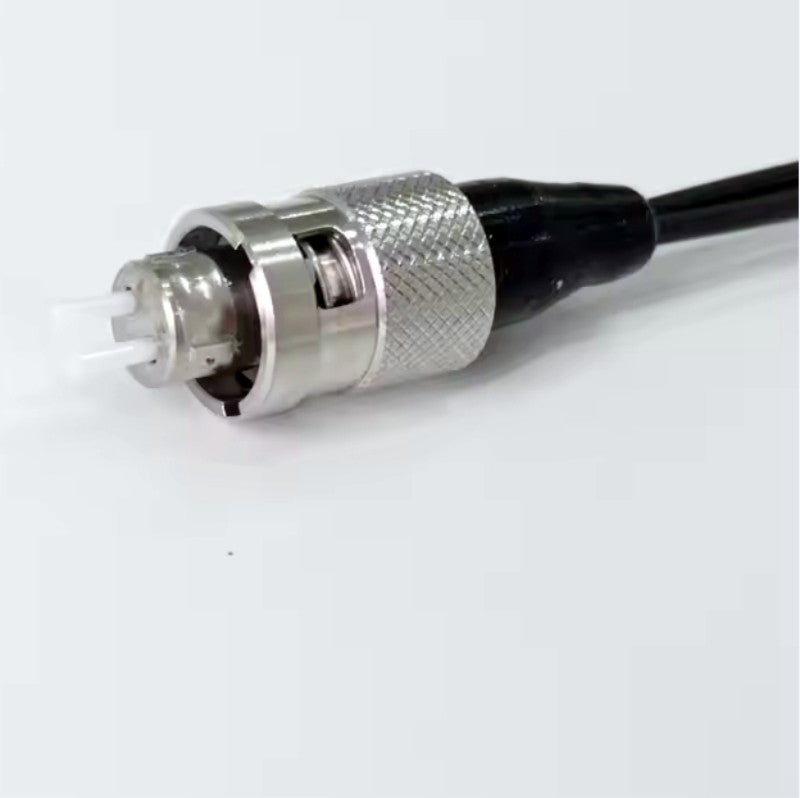

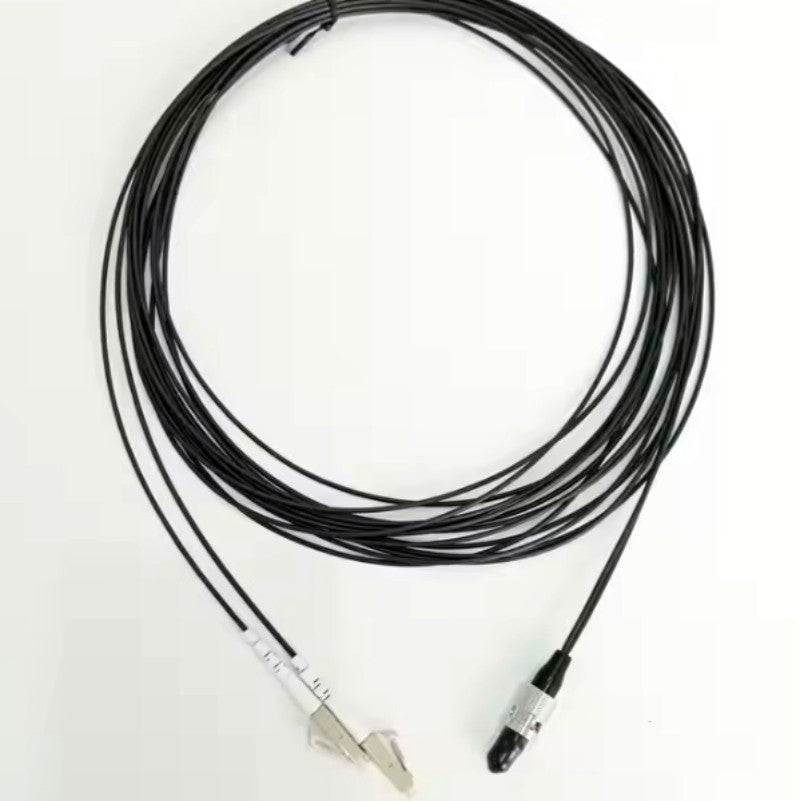

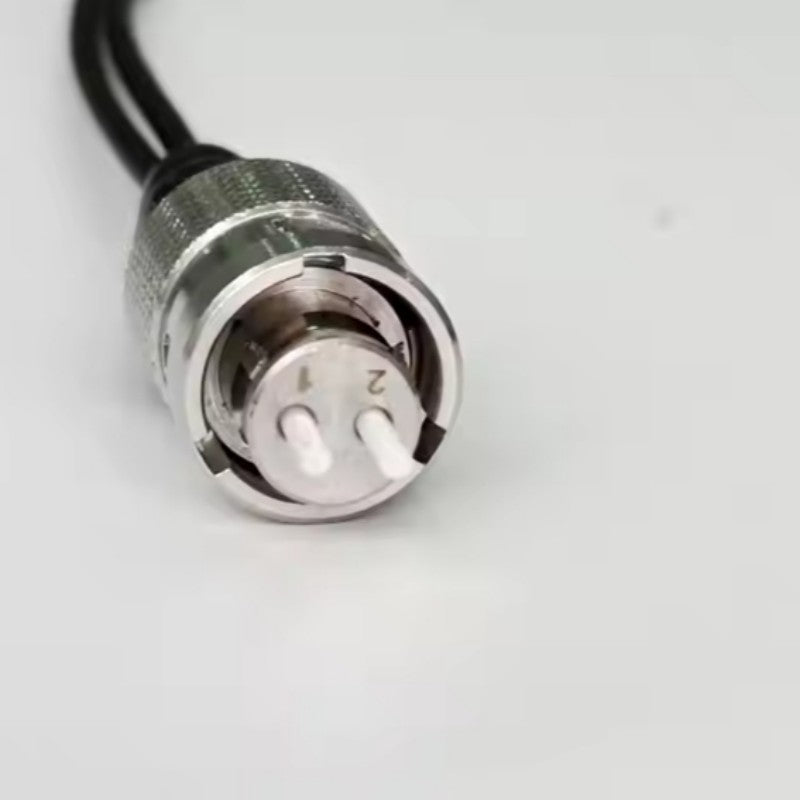

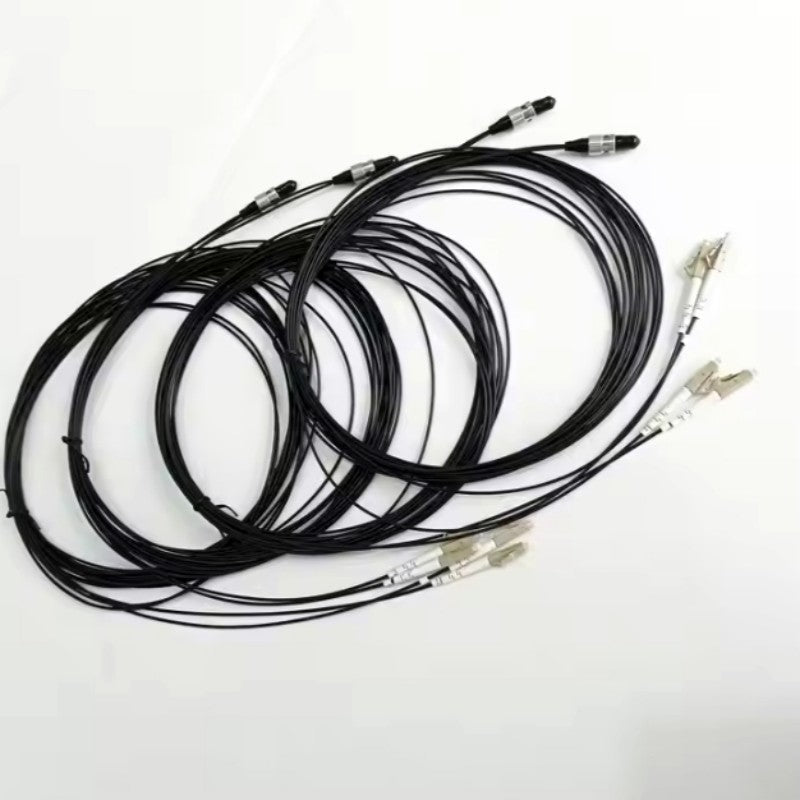

MINI Size JYS Series 2cores Fiber Connectors GZLD/2 Plug

MINI Size JYS Series 2cores Fiber Connectors GZLD/2 Plug

View full details

MINI Size JYS Series 2cores Fiber Connectors GZLD/2 Plug

Key attributes
Industry-specific attributes

Type Connector
Application Power
Gender Other

Other attributes

Place of Origin ChengDu,China
Brand Name F-tone Networks
Model Number GZLD/2
Material Stainless Steel
MOQ 2pcs
Keywords small fiber connector
Temperature Range -40 ~+85
Package PE Bag + Carton
Shipping by Buyer's Choice
Warranty 1 Year
Payment T/T
Brand F-tone

Packaging and delivery

Selling Units: Single item
Single package size: 10X10X5 cm
Single gross weight: 1.000 kg

Product descriptions from the supplierJYS Series Fiber connectors Parameter

Parameter Index Requirement
Insertion Loss single mode ≤0.6dB;multi mode ≤0.5dB
WorkingTemperature -40°C--+85°C
shocking 2940m/s²
Vibration 10-2000Hz, power spectral density 0.2G²/Hz
Mechanical life 500times
Salt spray property 48H

JYS Series Fiber connectors Connecting ways

JYS Series JYSK22N02 2CORES PLUG AND SOCKEJYS Series JYSK22N04 2CORES PLUGJYS Series GZLD/2 2CORES PLUGJYS Series JYSK22A15 2CORESPLUG AND SOCKET JYS PLUG AND SOCKET ConnectingJYS Series Connectors Assamblies ShowJYS Series Connectors Assamblies ShowImportant Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
