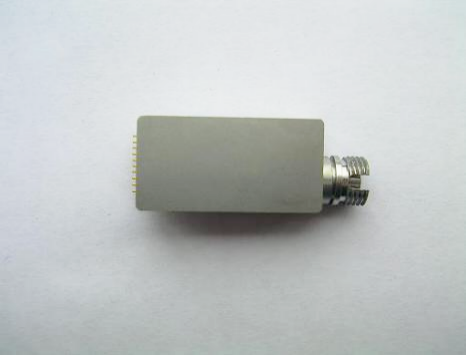

MINISFF BIDI Optical Transceiver
● Industrial-grade temperature range with anti-vibration design
● Pin and mounting dimensions are fully compatible with STRATOS products
● FC/ST interfaces optional
● More compact structural design
● +3.3V single power supply
● Surface-mount I/O pins adapted for high-speed signal integrity
● Equipped with received data signal detection function
Application
The MINISFF pluggable series of micro optical transceivers are suitable for high-reliability and high-efficiency digital optical fiber communication applications; with a transmission rate of up to 10Gbps, they are widely used in miniaturized and compactly designed digital optical communication systems.
Ordering Information
| Model | Wavelength (nm) | Data Rate | Transmission Distance (km) | Digital Diagnostic | X |
| FTMF-B1303-40x | tx1310/rx1550 | 155M | 40 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-B1503-40x | tx1550/rx1310 | 155M | 40 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-B1312-20x | tx1310/rx1550 | 1.25G | 20 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-B1512-20x | tx1550/rx1310 | 1.25G | 20 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-B1324-20x | tx1310/rx1550 | 2.5G | 20 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-B1524-20x | tx1550/rx1310 | 2.5G | 20 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-B271X-10x | tx1270/rx1330 | 10G | 10 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-B331X-10x | tx1330/rx1270 | 10G | 10 | N | E:Commercial grade I: Industrial grade M: Military grade |
Note: Pigtail length can be customized.
Mechanical Dimensions(mm)
Note: Undesignated tolerances: ±0.25mm
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
