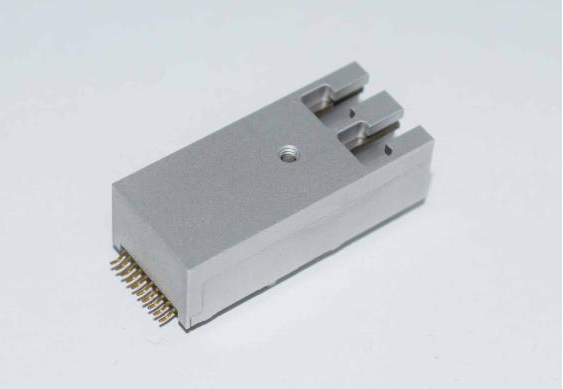

MINISFF Dual-fiber Optical Transceiver
● Industrial-grade temperature range with anti-vibration design
● Pin and mounting dimensions are fully compatible with STRATOS products
● More compact structural design
● +3.3V single power supply
● Equipped with received data signal detection function (except for FTMF-131X-10Dx/FTMF-151X-80Dx)
Application
The MINISFF pluggable series of micro optical transceivers are suitable for high-reliability and high-efficiency digital optical fiber communication applications; with a transmission rate of up to 10Gbps, they are widely used in miniaturized and compactly designed digital optical communication systems.
Ordering Information
| Model | Wavelength (nm) | Data Rate | Transmission Distance (km) | Digital Diagnostic | X |
| FTMF-1312-10x | 1310 | 1.25G | 10 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-1512-H2x | 1550 | 1.25G | 120 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-131X-10Dx | 1310 | 10G | 10 | Y | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-151X-80Dx | 1550 | 10G | 80 | Y | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-Cxx24-40x | 1270～1610(20nm间隔) | 2.5G | 40 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-Cxx62-20x | 1270～1610(20nm间隔) | 6.25G | 20 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-Cxx1X-10x | 1270～1610(20nm间隔) | 10G | 10 | N | E:Commercial grade I: Industrial grade M: Military grade |
Note: Undesignated tolerances: ±0.25mm
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
