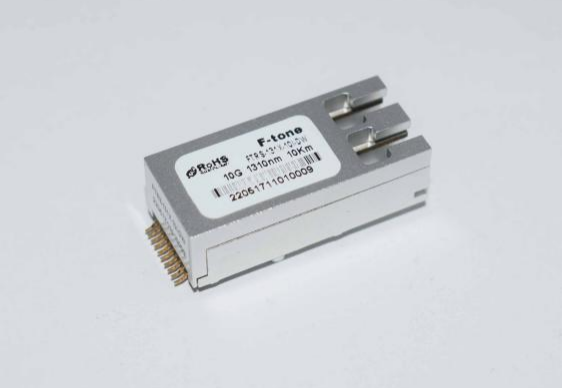

MINISFF Dual-fiber Optical Transceiver, MMF
● Industrial-grade temperature range with anti-vibration design
● Pin and mounting dimensions are fully compatible with STRATOS products
● More compact structural design
● +3.3V single power supply
● Surface-mount I/O pins adapted for high-speed signal integrity
● Equipped with received data signal detection function (except for FTMF-851X-02Dx)
Application
The MINISFF pluggable series of micro optical transceivers are suitable for high-reliability and high-efficiency digital optical fiber communication applications; with a transmission rate of up to 10Gbps, they are widely used in miniaturized and compactly designed digital optical communication systems.
Ordering Information
| Model | Wavelength (nm) | Data Rate | Transmission Distance (km) | Digital Diagnostic | X |
| FTMF-8512-02x | 850 | 1.25G | 0.5 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-8542-02x | 850 | 4.25G | 0.3 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-8562-02x | 850 | 6.25G | 0.3 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-851X-02x | 850 | 10G | 0.3 | N | E:Commercial grade I: Industrial grade M: Military grade |
| FTMF-851X-02Dx | 850 | 10G | 0.3 | Y | E:Commercial grade I: Industrial grade M: Military grade |
Note: Undesignated tolerances: ±0.25mm
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series
HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series
-
AVAGO HFBR-2521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-2528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price
Power and Wavelength Testing
Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
