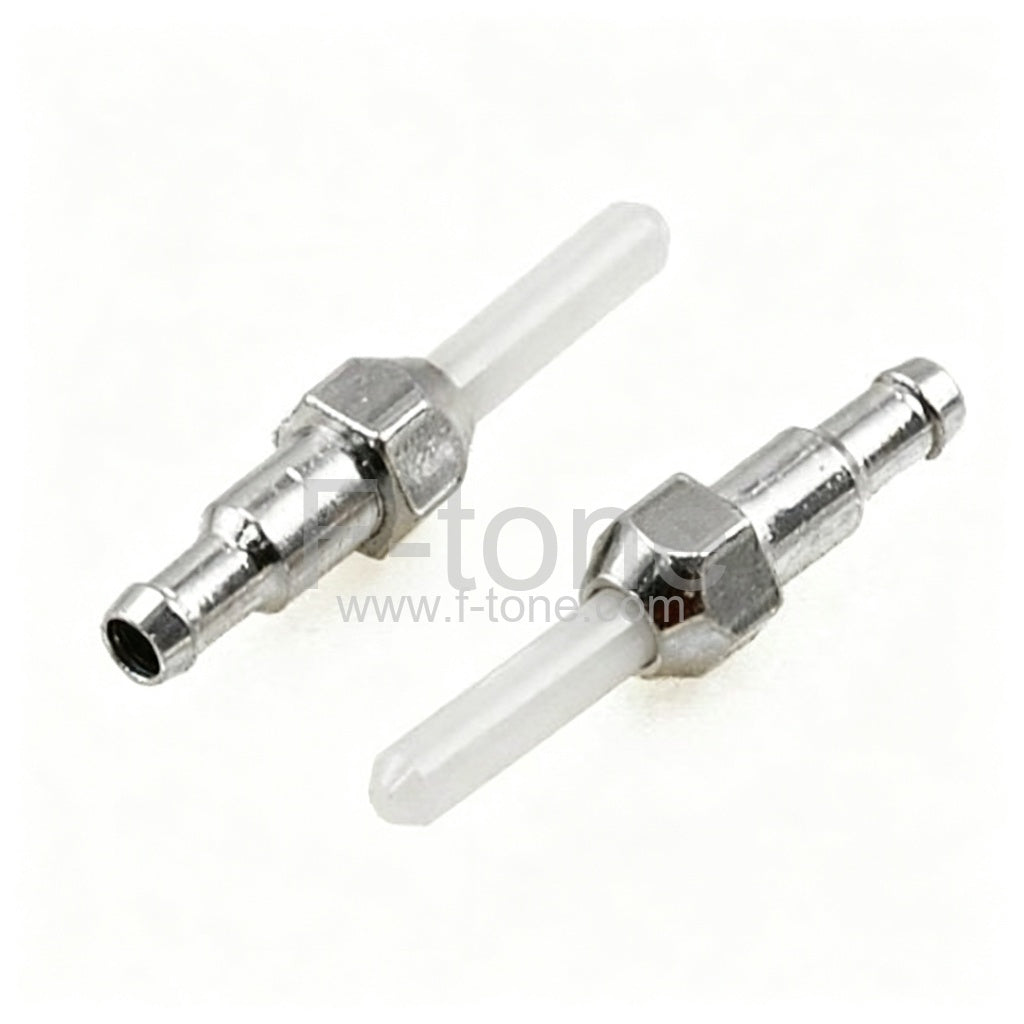

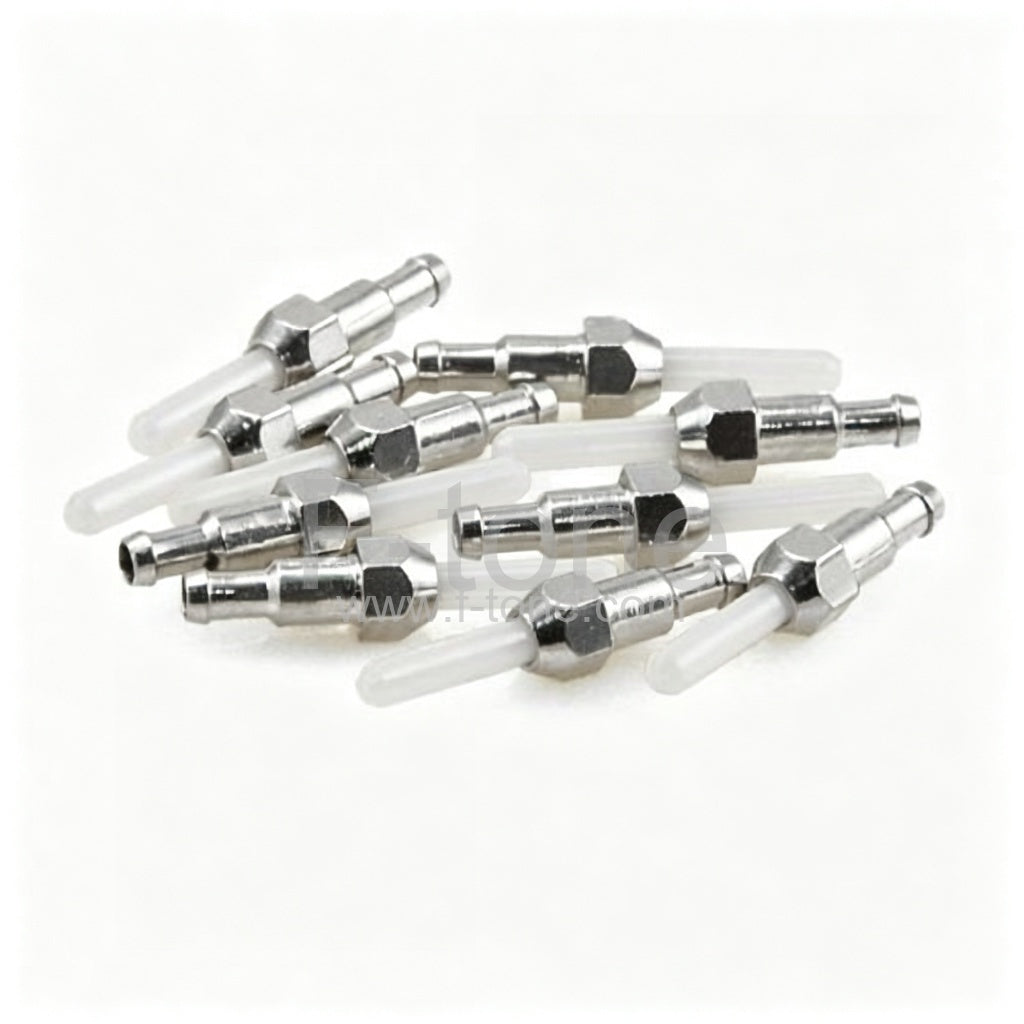

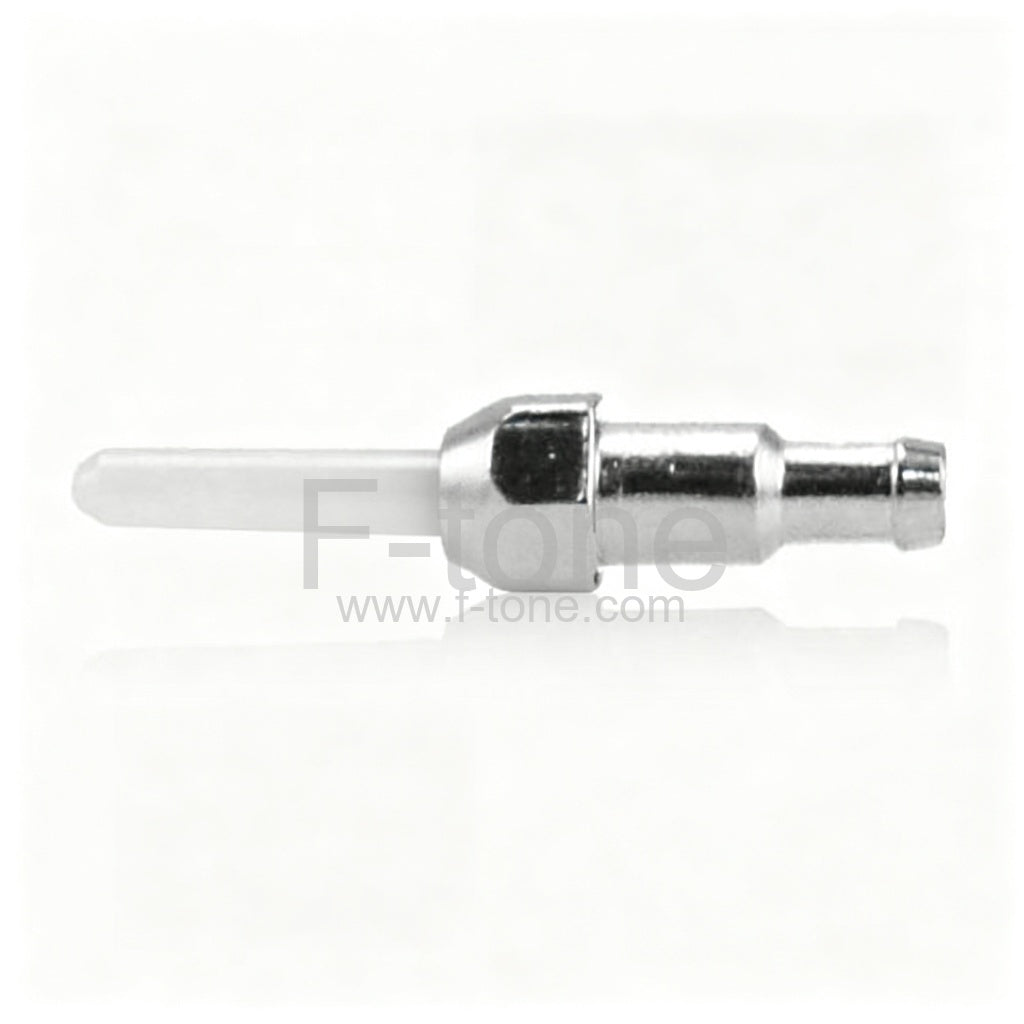

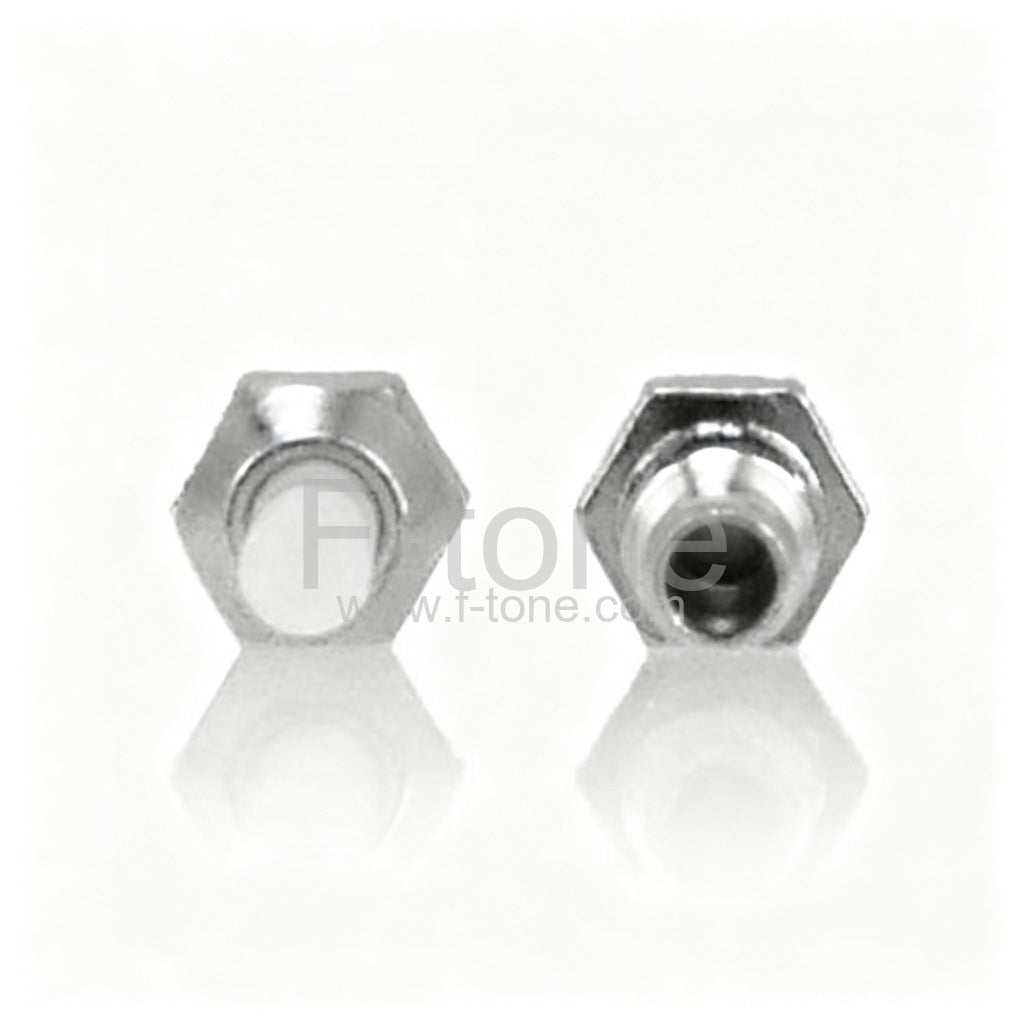

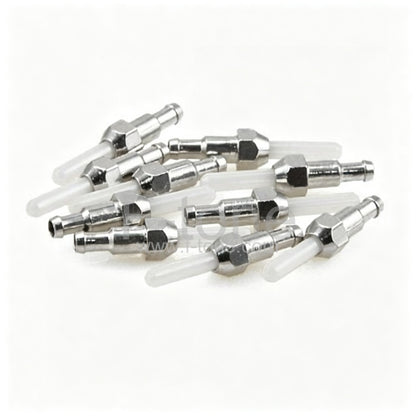

1.25mm OD Multi-mode Ceramic Ferrule for LC Fiber Connector 1.0um

1.25mm OD Multi-mode Ceramic Ferrule for LC Fiber Connector 1.0um

View full details

Part Number: MM-LC-10-FM

1.25mm OD Multi-mode Ceramic Ferrule for LC Fiber Connector 4.0um

Specification:

Outer diameter: （1.2499±0.0001）mm
Inner diameter: (0.126～0.129）mm
Concentricity: ≤4.0μm
Insertion loss:≤0.2dB
return loss:≥60dB
length:（6.50±0.01）mm

Features:

Good compatibility
Accurate mechanical dimensions
Good reliability and stability
Compliant with RoHS, Bellcore, IEC

Application:

Telecommunication
CATV
LAN (including FTTx)
Data network


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
