Part Number: MOFMM-OM5-MBWB-X

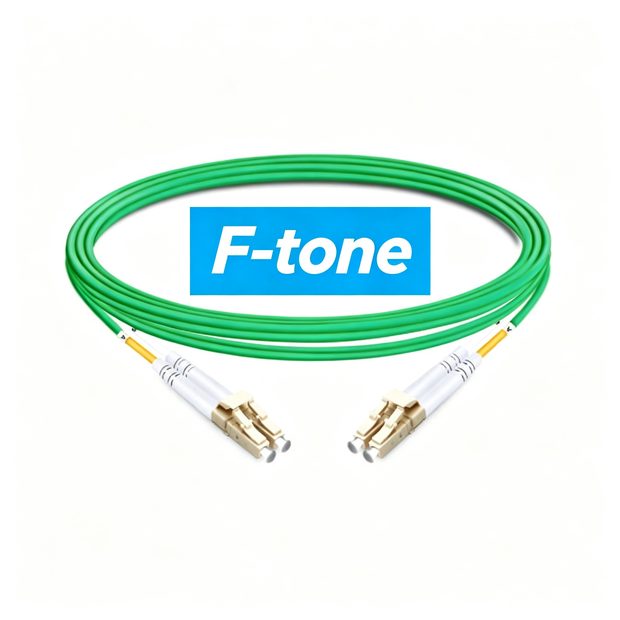

MaxBand® WideBand OM5 Bending Insensitive Multimode Fiber 50.4km Length in Spool
MaxBand® WideBand OM5 Bending Insensitive Multimode Fibre is a 50µm laseroptimized multimode fibre designed for short wavelength division multiplexing (SWDM) applications. Unlike legacy OM4 multimode fibre with high bandwidth at 850nm, MaxBand® OM5 Bending Insensitive Multimode Fibre has high bandwidth in the 850-950nm window and maintaining backward compatiblity with legacy OM4 fibre. WideBand OM5 and multi-wavelength transceivers are a viable solution for 100Gb/s and 400Gb/s multiwavelength systems.
MaxBand® WideBand OM5 Bending Insensitive Multimode Fibre complies with or exceeds ISO/IEC 11801-1 OM5 specification, IEC 60793-2-10 A1-OM5 specification, and TIA- 492AAAF A1-OM5 specification.
| Features | Benefits and Applications |
|---|---|
| ● Designed for multi-wavelength systems ● High bandwidth in the wavelength range of 850 nm - 950 nm ● Backward compatiblity with legacy OM4 fibre |
● Support single-wavelength and multi-wavelength transmission system from 40 Gb/s to 400 Gb/s |
| ● Superior geometry uniformity ● Low attenuation ● High bandwidth ● Low differential mode delay (DMD) |
● Data centers ● Data storage networks ● High-performance computing centers a ● Office centers ● Local area networks (LAN) |
| ● Very low macro-bending sensitivity | ● Supports the use and installation of optical cables with a small bending radius |
| ● Coated with proprietary dual layer UV curable acrylate | ● High resistance to micro-bending ● Optimized performance in tight-buffer cable applications ● Stable performance over a wide range of environmental conditions |
Specification
| Characteristics | Conditions | Specified Values | Units | |
|---|---|---|---|---|
| Geometry Characteristics | ||||
| Core Diameter | -- | 50±2.5 | [μm] | |
| Core Non-Circularity | -- | ≤5.0 | [%] | |
| Cladding Diameter | -- | 125.0±1.0 | [μm] | |
| Cladding Non-Circularity | -- | ≤0.6 | [%] | |
| Coating Diameter | -- | 245±7 | [μm] | |
| Coating/Cladding Concentricity Error | -- | ≤10.0 | [μm] | |
| Coating Non-Circularity | -- | ≤6.0 | [%] | |
| Core/Cladding Concentricity Error | -- | ≤1.0 | [μm] | |
| Delivery Length | -- | up to 17.6 | [km/reel] | |
| Optical Characteristics | ||||
| Attenuation | 850nm | ≤2.4 | [dB/km] | |
| 953nm | ≤1.7 | [dB/km] | ||
| 1300nm | ≤0.6 | [dB/km] | ||
| Overfilled Modal Bandwidth | 850nm | ≥3500 | [MHz·km] | |
| 953nm | ≥1850 | [MHz·km] | ||
| 1300nm | ≥500 | [MHz·km] | ||
| Effective Modal Bandwidth | 850nm | ≥4700 | [MHz·km] | |
| 953nm | ≥2470 | [MHz·km] | ||
| Application support distance on | -- | -- | -- | |
| 1.6T-SR8.2 | 850/910nm | 100 | ||
| 800G-SR4.2 | 850/910nm | 100 | [m] | |
| 400GBASE-SR4.2 | 850/910nm | 150 | [m] | |
| 100Gb/s WDM1 | 850-950nm | 150 | [m] | |
| Numerical Aperture | -- | 0.200±0.015 | -- | |
| Group Refractive Index | 850nm | 1.482 | -- | |
| 1300nm | 1.477 | -- | ||
| Zero Dispersion Wavelength(λ0) | -- | 1297-1328 | [nm] | |
| Zero Dispersion Slope(S0) | -- | ≤4（-103）/（840（λ0/840)4) | [ps/(nm2·km)] | |
| Macrobending Loss2 | -- | @850nm | @1300nm | -- |
| 2 Turns @ 15 mm Radius | -- | ≤0.1 | ≤0.3 | [dB] |
| 2 Turns @ 7.5 mm Radius | -- | ≤0.2 | ≤0.5 | [dB] |
| Backscatter Characteristics | 850nm & 1300nm | |||
| Step（Mean of Bidirectional Measurement） | -- | ≤0.10 | [dB] | |
| Irregularities Over Fibre Length and Point Discontinuity | -- | ≤0.10 | [dB] | |
| Attenuation Uniformity | -- | ≤0.08 | [dB/km] | |
| Environmental Characteristics | 850nm & 1300nm | |||
| Temperature Cycling | at -60℃ to 85℃ | ≤0.10 | [dB/km] | |
| Temperature-Humidity Cycling | at -10℃ to 85℃ and 4% to 98% RH | ≤0.10 | [dB/km] | |
| Water Immersion | at 23℃ for 30 days | ≤0.10 | [dB/km] | |
| Dry Heat | at 85℃ for 30 days | ≤0.10 | [dB/km] | |
| Damp Heat | at 85℃ and 85% RH for 30 days | ≤0.10 | [dB/km] | |
| Mechanical Specification | ||||
| Proof Test | -- | ≥9.0 | [N] | |
| -- | ≥1.0 | [%] | ||
| -- | ≥100 | [kpsi] | ||
| Coating Strip Force | typical average force | 1.5 | [N] | |
| peak force | ≥1.3, ≤8.9 | [N] | ||
| Dynamic Stress Corrosion Susceptibility Parameter（nd, typical） | -- | 20 | -- | |
Remarks: 1. Support distance with SWDM transceivers http://www.swdm.org/msa/
2. The launch condition for the macrobending loss measurement fulfils that described in IEC 61280-4-1.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
