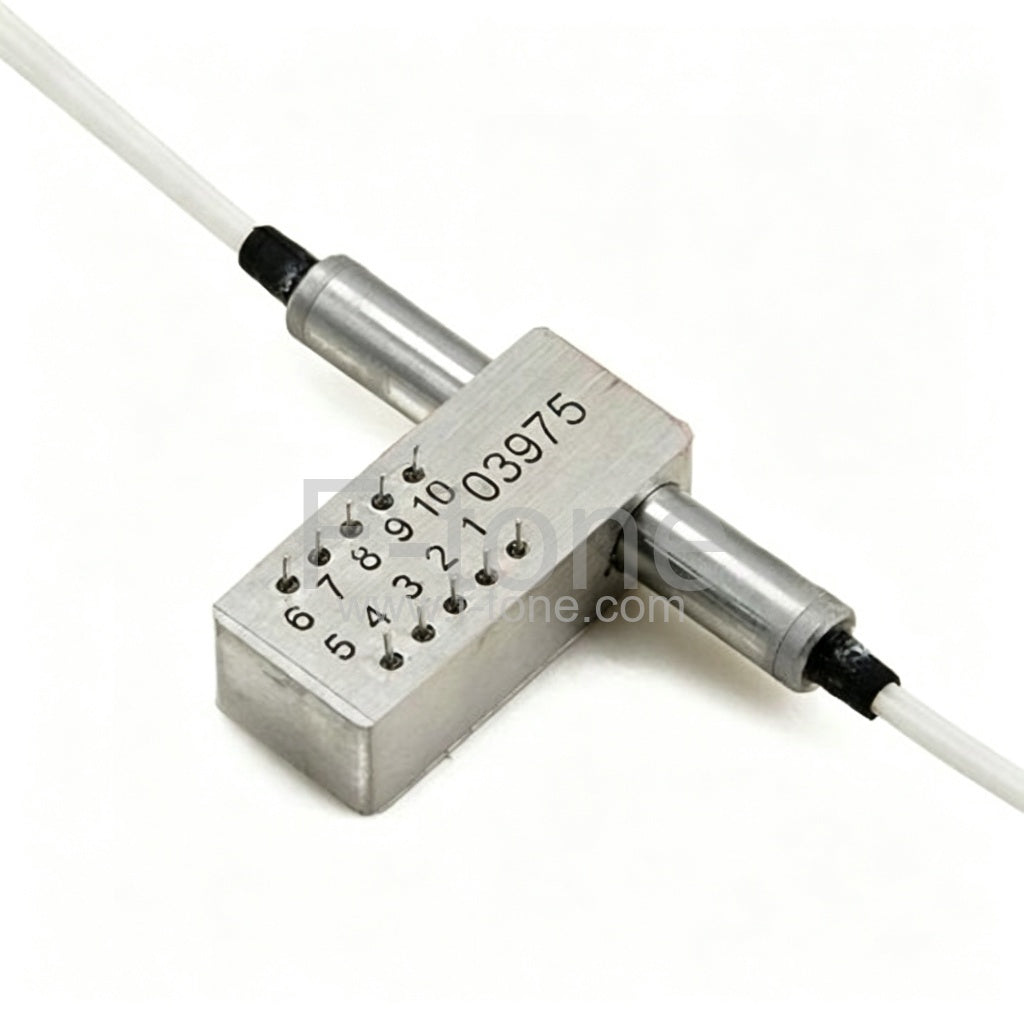

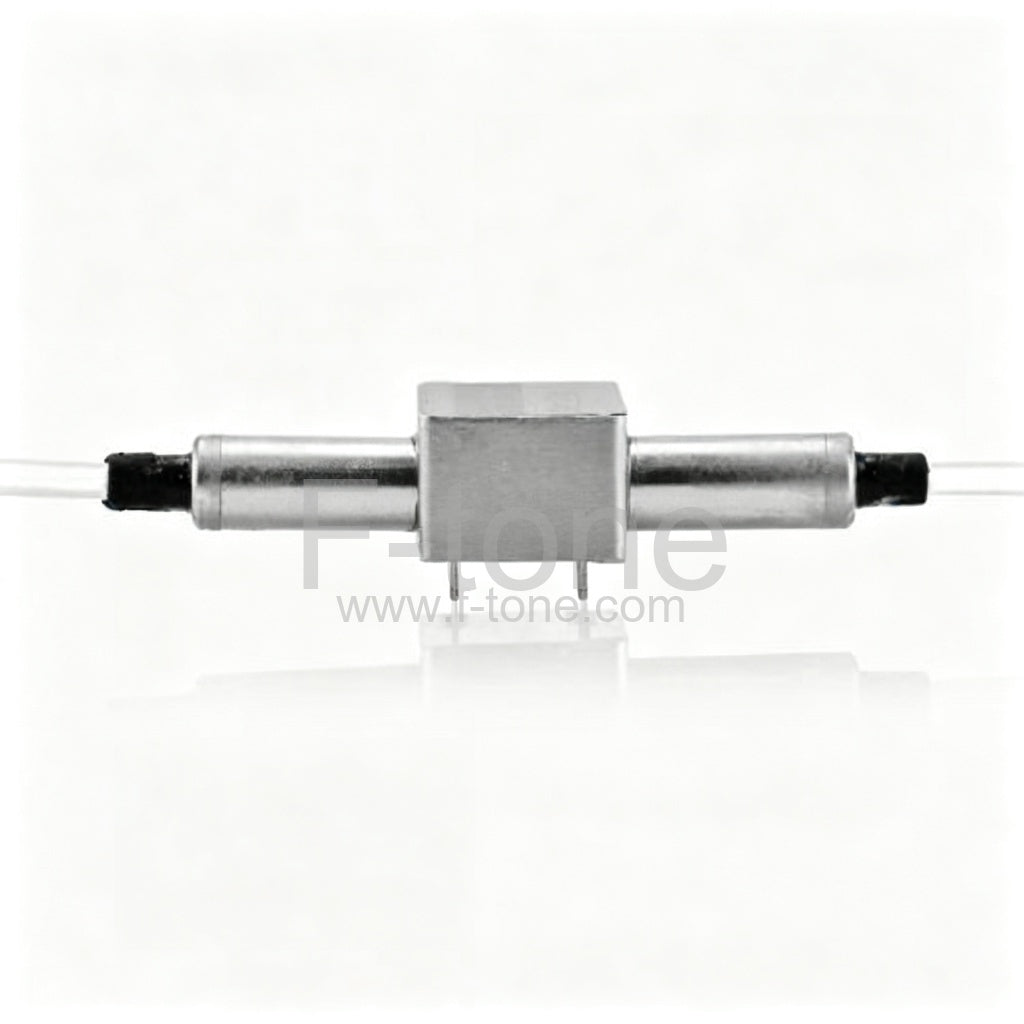

2x2 MEMS Optical Switch

Part Number: MSW-2x2-A-B-C-D-E

MEMS Optical Switch 2x2 in SMF or MMF optional, 5V, 1.0dB loss

F-tone's 2x2 MEMS Bi-directional Fiber Optical switch, based on Microelectromechanical Systems (MEMS) technology, is a compact optical switch which connect optical channels by redirecting 1 incoming optical signals into 4 selected output fibers. The switching state is highly stable against environmental variations of temperature and vibration due to its unique design. This novel design significantly reduces packaging requirement, and simplifies driving electronics, offering unprecedented high stability as well as an unmatched low cost.

F-tone offers most affordable high performance MEMS optical switches. The MEMS technology offers extremely low electrical power consumption, high durability (> 1x10^9 cycles), no stiction, and high resistance to shock & vibration. Laser welded assembly ensures repeatability and ruggedness in field applications. Our MEMS Switches are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. Currently configurations includes 1x2, 1x4, 1x8 and 1x16 configurations for single-mode or multimode fibers, available in either latching or non latching variants.

Specifications

Mechanical Dimensions (Unit: mm)

Electrical Driving Requirements

This series of switches is designed to meet the most demanding Carrier-class and out-door optical switching applications.
Together with contorl electronics, the switch can be controlled through digital interfaces. F-tone also offers External TTL and External IIC interfaces as an option-please contact F-tone sales at [email protected].

* DP: Driving Pulse Voltage

Attention! Outside this range could damage the device.
Order Information：MSW-1x4-A-B-C-D-E

For example: MSW-1x4-SM-13-S-15-FP
Questionnaire for Custom Parts:

All these customize information, please back to top to find the option for choose. If there any other special requirements, please feel free to contact us at [email protected].

• A. Which fiber type are you using? (Single-mode or Multimode)
• B. What wavelengths are you using? (Specify in nanometers)
• C. What size jacketing? (250 micron OD acrylate coating; 900 micron OD hytrel jacket)
• D. How long should the fibers be? (Fiber length, in meters, 1 meter is standard)

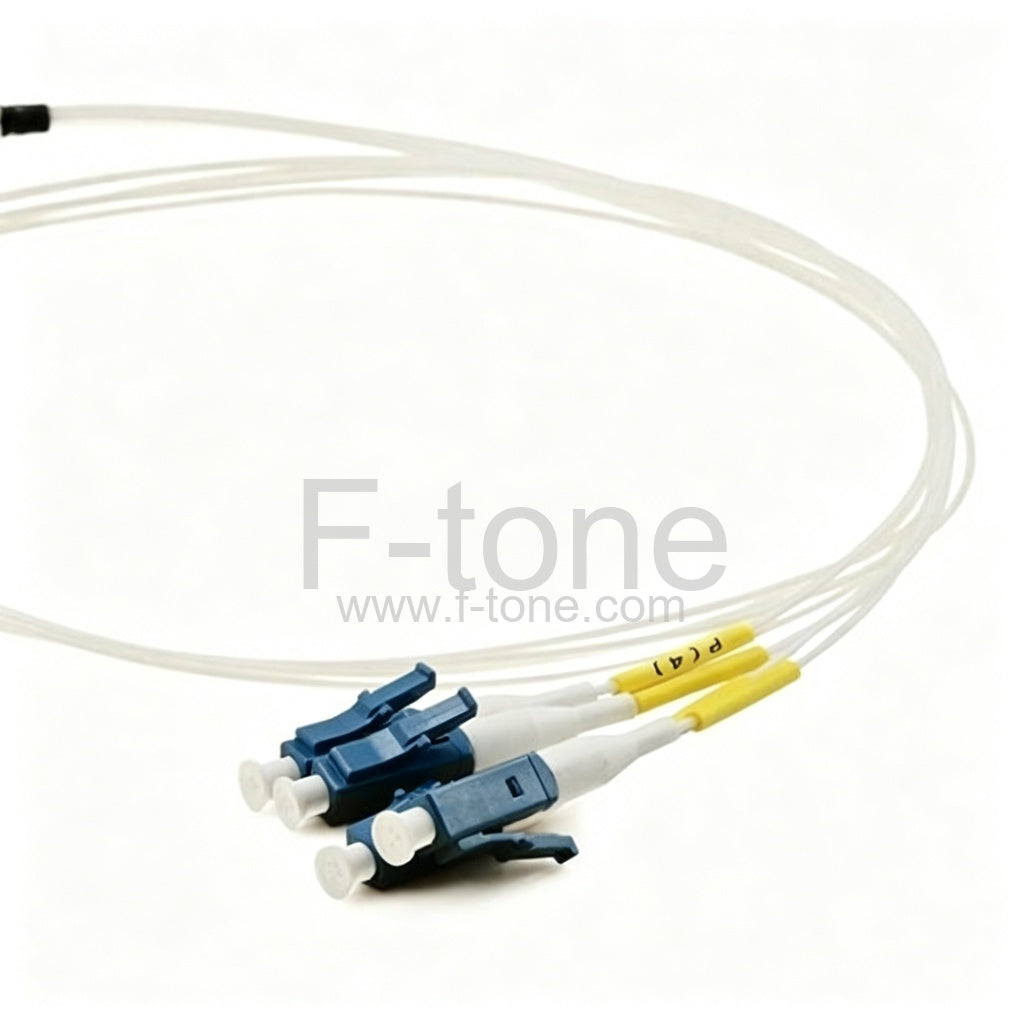

• E. What type of connectors do you need? (Connector codes for each port, Input and output connections)

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
