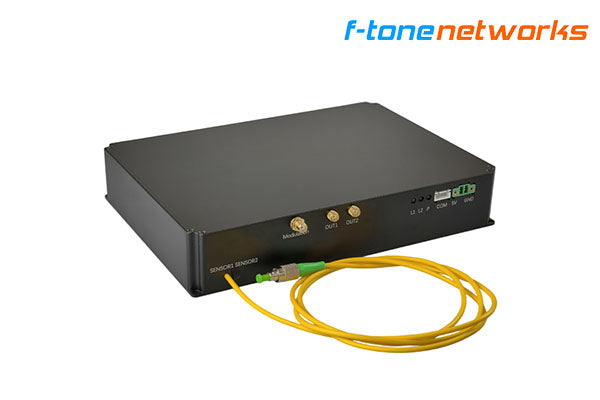

Narrow-pulse DAS integrated module with 3-meter spatial resolution

Narrow-pulse DAS integrated module with 3-meter spatial resolution

View full details

Narrow-pulse DAS integrated module with 3-meter spatial resolution

Product Introduction

This DAS integrated module is a DAS module capable of modulating and outputting narrow pulses; it can achieve a pulse width of 20ns, the measured spatial resolution reaches 3 meters, the monitoring distance is 10km, and the frequency signal is 80M. Therefore, it only needs to be paired with a 250M sampling rate acquisition card to work.

Product features
● The adjustable pulse width range is wide, enabling pulse width modulation from 20ns to 200ns.
● At a pulse width of 20ns, a spatial resolution of 3 meters can be achieved for a 10km optical cable.
● Even at a pulse width of 20ns, it can still be paired with a 250M acquisition card, offering high cost-effectiveness.

Application
● Scenarios with short distance and high spatial resolution
● Scenarios with high spatial resolution but sensitive to cost


kernel parameter

Parameter Name Value Remarks
Monitoring Distance ＜40km Supports 10 km monitoring under 20 ns pulse width
Channel Count 1/2
Pulse Width 20ns‑200ns
Spatial Resolution 3m‑10m
Laser Linewidth ＜3kHz
Intermediate‑frequency Signal 80MHz
Polarization Diversity Support Supported Not equipped by default, optional upon customer request
Output Port Count 1/2 1 for single‑mode optical path; 2 for polarization‑diversity optical path
Output Signal Analog voltage signal
Output Interface SMA female connector
Supply Voltage 12V
Module Debug & Control Protocol Modbus





Professor Wu from F-tone Networks was selected as one of the top 2% global scientists for four consecutive years from 2022 to 2025 (https://elsevier.digitalcommonsdata.com/datasets/btchxktzyw/6)



This product only displays a portion of the parameters (161). If you need more information, please contact us.



F-tone Networks Technical Support:

Email:una@f-tone.com

WhatsApp and WeChat: +86177 6116 3895

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
