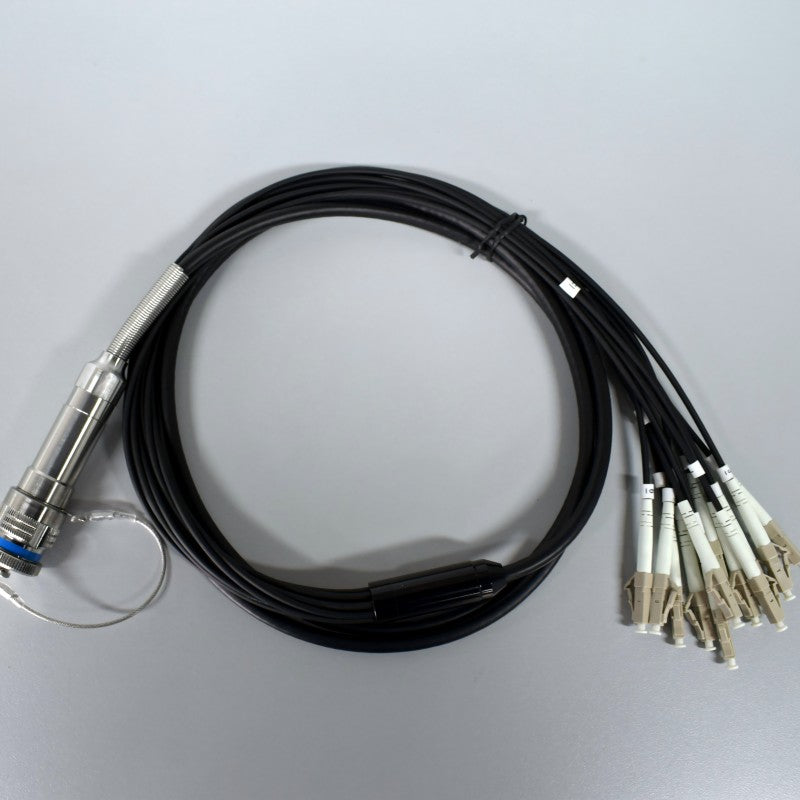

ODC Tactical waterproof connector

ODC Tactical waterproof connector

View full details

ODC Tactical waterproof connector

ODC outdoor waterproof connector with screw locking mechanism to ensure safe and reliable connection, the design guide pins, you can use one hand blind mating connector installation simple and quick to do. Products reach the level of protection IP67 waterproof, waterproof, dust protection and anti-corrosion protection can be well suited for outdoor use environments. Stainless steel shell, ODC specifications are: 2/4cores.
Mainly used: outdoor harsh environment fiber optic communications, communication base stations, intelligent substation, BMD equipment, railway signal control, mines and other harsh environments.
Specifications
Connection Drawing
ODC Assembly Ordering Info：
[Ordering info example]
(1) ODC02P-ODC02P-L100m-SM4.0
Both end is ODC02P Plug, length is 100m 4.0mm 2core Tactical Armored Optical Cable.
[Ordering info example]
(1) ODC02P-2ST-L1/0.3m-SM3.0
End A is ODC02P Plug，End B is 2ST connector, length is 3/0.3m, SM armored tactical branch cable, O.D. is 3.0mm
[Ordering info example]
（1）ODC02S-2ST-L0.5m-SM3.0
End A is ODC02S socket，End B is 2ST connector, length is 0.5m, SM indoor branch cable, O.D. is 3.0mm


Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
