Part Number: ODVA-PC

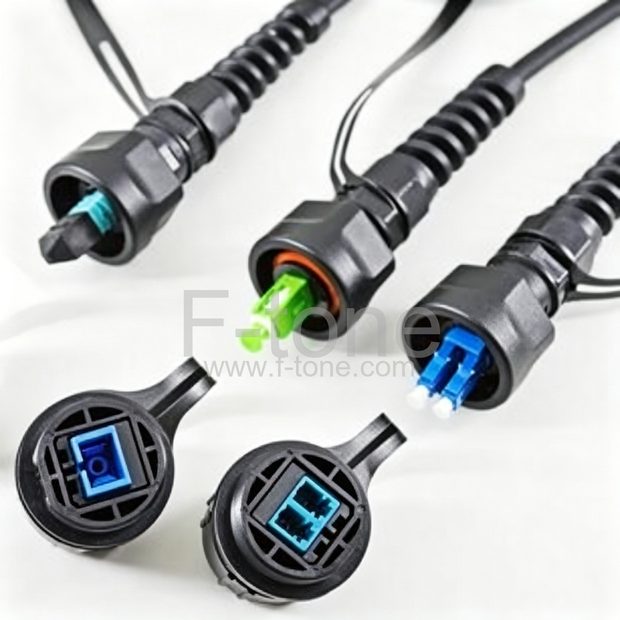

ODVA Patch Cord with DX LC,SX SC and MPO
ODVA BBU RRU Patch Cable is for CPRI application , that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivity.
ODVA BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling these patch cables are always sealed with rugged fiber terminal junction boxes tat meet the requirements of more antennas on a wireless tower. With the development of distributed antenna ODVA systems(DAS), connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.
Features
- 2 fibers singlemode or multimode
- Compact design with 2×1.25mm ferrules
- Built-in socket with square or hexagonal flange
- Extension connector for cable chaining
- Screwed locking mechanism
- Easy and safe intallation
- Water proof,dust proof and corrosion resistant
- Water proof protection caps
- EMI protected
- RoHs compliant
- Fulfills performance standard IEC 61753-1 Cat.E
- Cable Length: 1M
- Connector: ODC plug to LC/SC/ST/FC
Specifications
| Technology | Full ceramic ferrule and sleeve | |
|---|---|---|
| Housing material | Nickel plated brass | |
| Mechanical performance | ODC plug | ≤1000 N tensile load≤30 N static side load |
| ODC socket | ≤30 N tensile load | |
| Installation torque force | min.1Nm | max.2Nm |
| Operating temperature | IEC 61300 – 2 - 22 | -40℃ up to +85℃ |
| Mating durability | 1000 cycle | |
| Ingress protection(mate) | IEC60529 | Ip 68 |
| Salt mist | IEC61300-2-26 | 30 days passed |
| Vibration | IEC61300-2-1 | Pass 10-500Hz/10g |
| Shock | IEC61300-2-9 | Pass 100g |
Optical Performance
| Insertion loss IEC61300-3-34 |
Singlemode | Typ. ≤0.30dB | 97% ≤0.45dB |
|---|---|---|---|
| Multimode | Typ. ≤0.30dB | 97% ≤0.50dB | |
| Return loss | Singlemode | ≥50dB |
Mechanical Drawing
Sample Picture
