Part Number: OM1-24F-AB-FT-24F

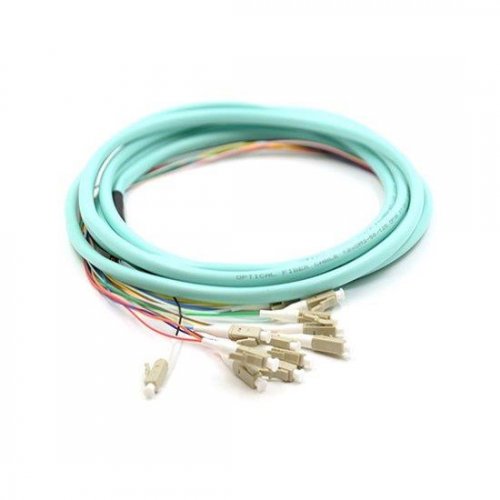

24-fiber 3.0mm 62.5/125 OM1 Multimode LC/SC/ST/FC Armored Bunch Pigtail
Fiber Optic Armoured Pigtail are with stainless steel tube inside the outer jacket to protect the central unit of the cable. So they will not get damage even they are stepped by an adult and bit by rodents.
Key Features
Mini armored-protectionHigh pull & pressure endurancePrevent bite by rodentsTorsion damage resistanceStrong and flexible, easy to useOFNR (Riser) RatedStandard boot on each end
Applications
TelecommunicationsCATV, LAN, MAN, WAN, Test & MeasurementMilitary industryMedical
Specification
| Parameters | Specification | |||
|---|---|---|---|---|
| Fiber Type (um) | 24 fiber multimode 62.5/125 | |||
| Connector | FC/SC/ST/LC optional | |||
| Cable Jacket | Armored/Military Tactical | |||
| Insertion Loss (dB) | ≤ 0.20 | |||
| Return Loss (dB) | ≥ 35 | |||
| Operating Temperature | -40 ~ +80 ° C | |||
| Storage Temperature | -40 ~ +85 ° C | |||
| Color | Grey | |||
Custom Information
F-tone offers custom-made pigtails with a wide variety of options:
a. “Unjacketed” fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.
-
Pigtail with jacket -
Pigtail without jacket -
Fan-out pigtail -
Customized color pigtail -
Customized 100 meters pigtail
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
