Part Number: OM2-SX-FM

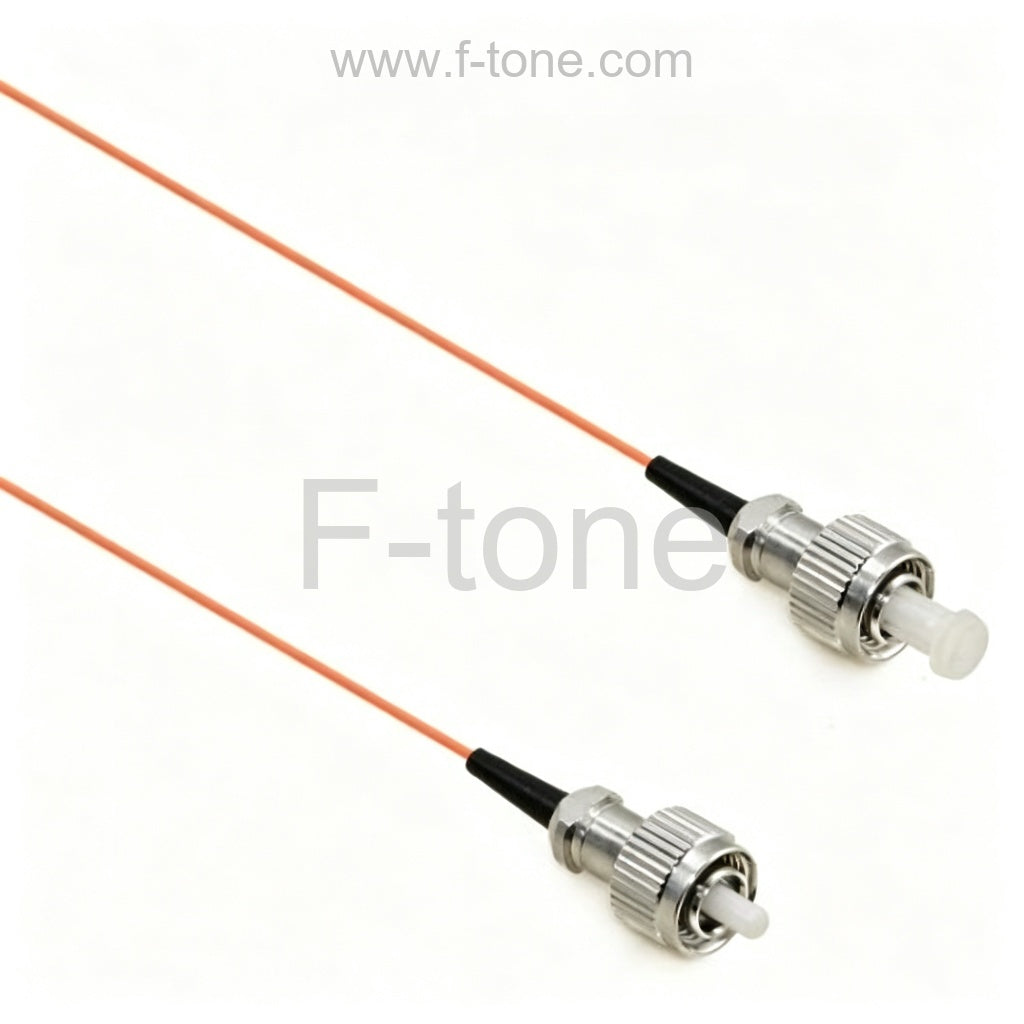

Simplex 50/125 Multimode LC/SC/ST/FC Pigtail
Fiber pigtail cables provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line.
F-tone.COM provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3 types, simplex fiber, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.
Key Features
- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High temperature stability
- Compliant to IEC, TIA/EIA, NTT and JIS specifications
Specifications
These MULTIMODE 50/125 simplex fiber pigtails have an ST or SC, FC, LC connector on one end. They are commonly used for splicing on to outside plant or riser rated fiber optic cables.
Custom Information
F-tone offers custom-made pigtails with a wide variety of options:
a. “Unjacketed” fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
