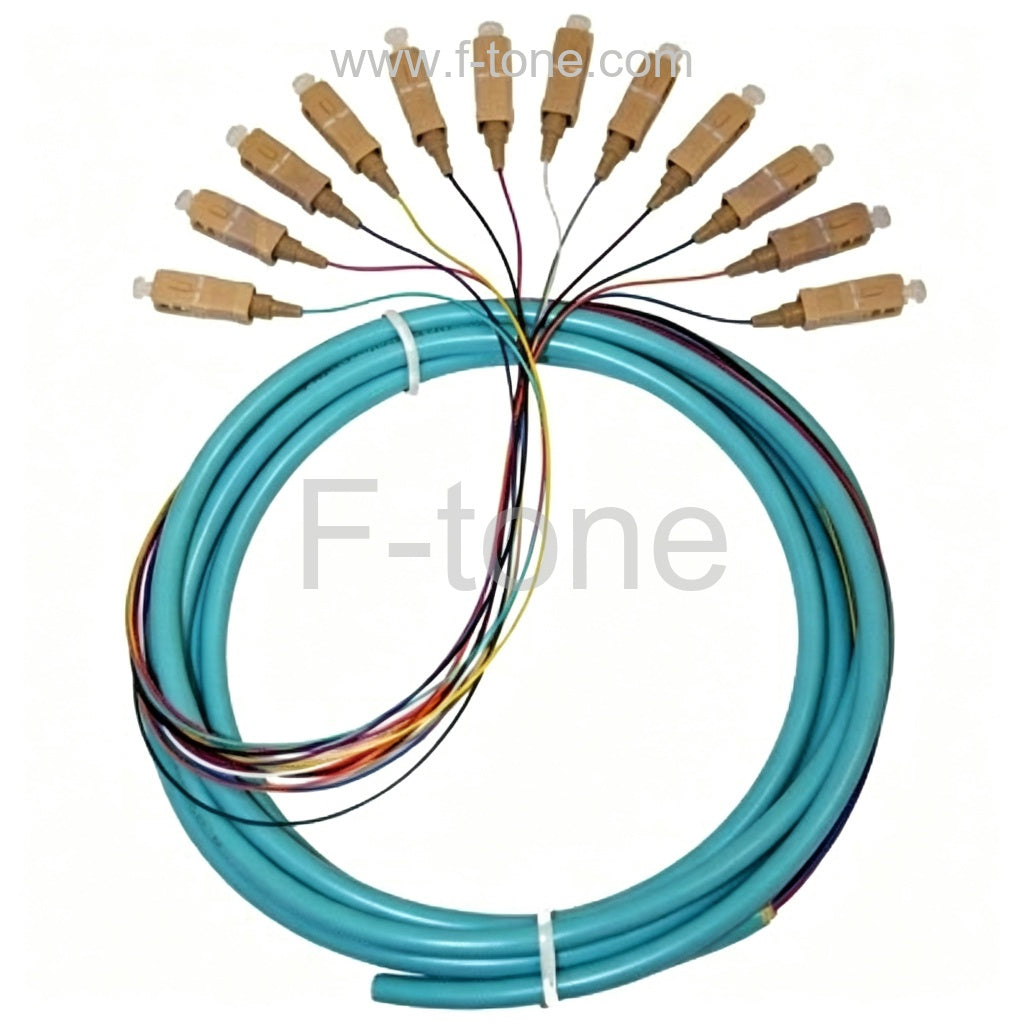

6-Fiber OM3 Multimode Ribbon Fan-out LC/SC/ST/FC Pigtail

Part Number: OM3-6F-R-FM

6-Fiber 50/125 OM3 Multimode Ribbon Fan-out LC/SC/ST/FC Pigtail

Ribbon fan-out patch cord provide a stable and reliable connection for single mode fiber.
F-tone.COM provide wide degree flexibility on fiber pigtails, including single-mode, multimode and 10G 50/125um OM3, OM4 types, simplex fiber, duplex, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24 fibers, 48 fibers and so on. Our pigtails are available in different connectors like FC, SC, ST and LC. These fiber pigtails can be with fan-out kits and full compliant to Telcordia, EIA/TIA and IEC standards.
Warm Tips:
1.The 12 cores ribbon pigtail is usual, and it is available. But other cores（4 cores, 6 cores, 8 cores and so on）ribbon pigtail are unusual. If you need it, please feel free to enquiry us at [email protected].
2.The default fiber diameter for the cable is 0.9mm,if you'd like to customize other types as 2.0mm,3.0mm,please kindly enquiry us. The diameter refers to the thickness of the cable,the size is able to match the corresponding equipment port.

Key Features

• Low Insertion Loss
• High Return Loss
• Good Repeatability
• Good Exchangeability
• Good Temperature Stability

Applications

• ODF
• Optic-fiber Communication Systems
• Computer Networks
• Optical Access Networks
• Test Equipment

Specification

Kind Note: The picture is for single mode, only for reference.

Custom Information

F-tone offers custom-made pigtails with a wide variety of options:
a. “Unjacketed” fiber pigtails usually installed inside ODF unit.
b. Multi-Strand fiber pigtails without a jacket are ideal for fusion splicing.
c. Multi-Strand fiber pigtails with fan-out are designed for patch panels or cable ducts where space-saving is required.
d. 2, 4, 6, 8, 12, 24 and 48 Strand fiber counts available.
Note :All pigtails can be customized in any fiber type, length, connectors and fiber counts for your requirement.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
