Part Number: OM3-SC-ST-DX-FT-2M-PVC

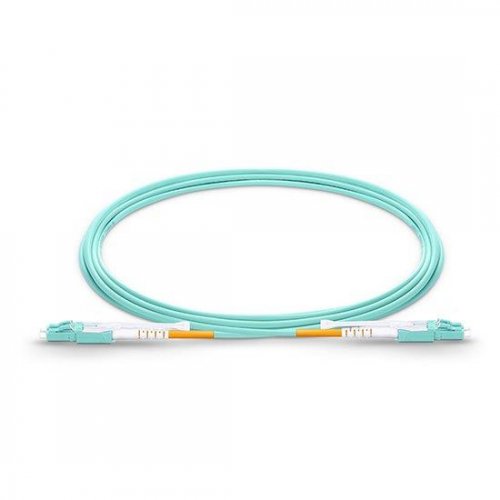

High Quality and Cost-effective 10G 50/125 m OM3 Multimode Fiber Patch Cable
The 10G 50/125 m OM3 multimode fiber patch cable meets RoHS compliant, and all cables are 100%optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
F-tone also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
| Connector | SC to ST | Jacket OD | 2.0mm |
|---|---|---|---|
| Fiber Mode | 50/125 m | Jacket Color | Aqua |
| Polish | UPC to UPC | Wavelength | 850/1310nm |
| Fiber Type | Duplex | Jacket Material | PVC |
| Insertion loss | 0.3dB | Interchangeability | 0.2dB |
| Return loss | 50dB | Vibration | 0.2dB |
| Operating temperature | -40~75C | Storage temperature | -45~85C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G.651 |
Quality Certification
Quality and standards are the foundation of F-tone. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
F-tone has passed many quality system verification, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Each cable is 100%optically inspected and tested for insertion loss before you receive it.
Product Highlights
Industry Standard Flammability Rating OFNR (Riser) Jacket Fiber Patch Cable
The industry standard duplex fiber connector meets EIA/TIA 604-2 with ceramic ferrule for high speed cabling networks.
-
- Zirconia Ceramic Ferrule Optimum IL and RL
-
- 2.0mm Cable Boot, Provides Maximum Protection
-
- Printing helps clarify and recognize different cables
High Quality Fiber Patch Cable Guarantee
Packing & Labeling
This easy to take and well-protected fiber optical cable package has been labeled and marked by F-tone.COM as default. Customized label or package solution are available on request.
-
-
Waterproof LDPE(Low-density polyethylene) plastic packing for each cable.
-
-
Labeled the specifications of the item for easy identifications.
-
-
K=K Corrugated Carton for carton package, providing maximum protection of your items.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
