Part Number: OM4-E20-E20-DX-MM

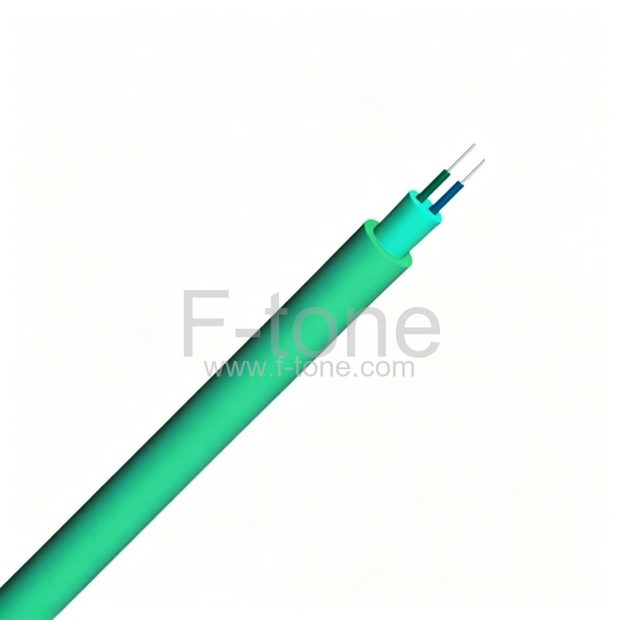

High Quality and Cost-effective 10G 50/125μm OM4 Multimode Fiber Patch Cable
The 10G 50/125μm OM4 multimode fiber patch cable meets RoHS compliant, and all cables are 100%optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
F-tone also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
Item Details
| Connector: E2000 to E2000 | Jacket OD: standard 2.0 (default)/0.9/3.0mm |
|---|---|
| Fiber Mode: 50/125μm | Jacket Color: Aqua |
| Polish: UPC to UPC | Wavelength: 850/1310nm |
| Fiber Type: Duplex | Jacket Material: PVC(default)/LSZH/OFNP |
| Insertion loss: ≤0.3dB | Interchangeability: ≤0.2dB |
| Return loss: ≥50dB | Vibration: ≤0.2dB |
| Operating temperature: -40~75°C | Storage temperature: -45~85°C |
| Fiber Grade: G652D (G657A1 can also be offered, please contact [email protected] for price and details.) | |
How to correctly choose between PVC, LSZH and OFNP
PVC Cable: PVC cable resistant to oxidation and degradation, is used for horizontal runs between the table.
It is also work for vertical runs if the building features a contained ventilation system running through the duct work.
LSZH Cable: LSZH cable has a special flame-retardant coating, and excellent fire safety characteristics of low smoke, low toxicity and low corrosion.
It is same to PVC cable for horizontal runs between the table.
OFNP Cable: OFNP cable is a space within the building created by building components, designed for the movement of environmental air, complies with the NFPA fire safety.
It is usually work for vertical runs between floors.
How to Choose The Right Fiber Optic Cable Type
| Designation | Fiber Dia. (μm) |
Type | Fast Ethernet 100BASE-FX |
1 Gigabit Ethernet 1000BASE-SX |
1 Gigabit Ethernet 1000BASE-LX |
10 Gigabit Ethernet 10GBASE |
40 Gigabet Ethernet 40GBASE-SR4 |
100 Gigabet Ethernet 100GBASE-SR4 |
|---|---|---|---|---|---|---|---|---|
| OM1 | 62.5/125 | Multimode | 2000 Meters | 275 Meters | 550 Meters (mode conditioning patch cable required) |
33 Meters | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 550 Meters | 82 Meters | Not supported | Not supported | ||
| OM3 (Laser Optimized) | 50/125 | Multimode | 550 Meters | 300 Meters | 100 Meters | 100 Meters | ||
| OM4 (Laser Optimized) | 50/125 | Multimode | 400 Meters | 150 Meters | 150 Meters | |||
| Singlemode | 9/125 | Singlemode | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm |
PS: The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig/second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable, it is 4700 MHz.km while for OM3, it is 2000 MHz.km.
Custom and OEM
1. Customize Jacket Materials
| PVC | OFNP | LSZH | OFNR |
2. Customize Cable Color
| Red | Blue | Grey | Purple |
3. Customize Cable Connector
| D4 | SMA905 | VF45 | MU |
4. Customize Cable Length
| 5M | 10M | 50M | 100M |
5. OEM Label, Printing and Boot Color
NOTE: If you need customize others, welcome to contact [email protected].
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
