Part Number: OSFP-800G-LR8-FM

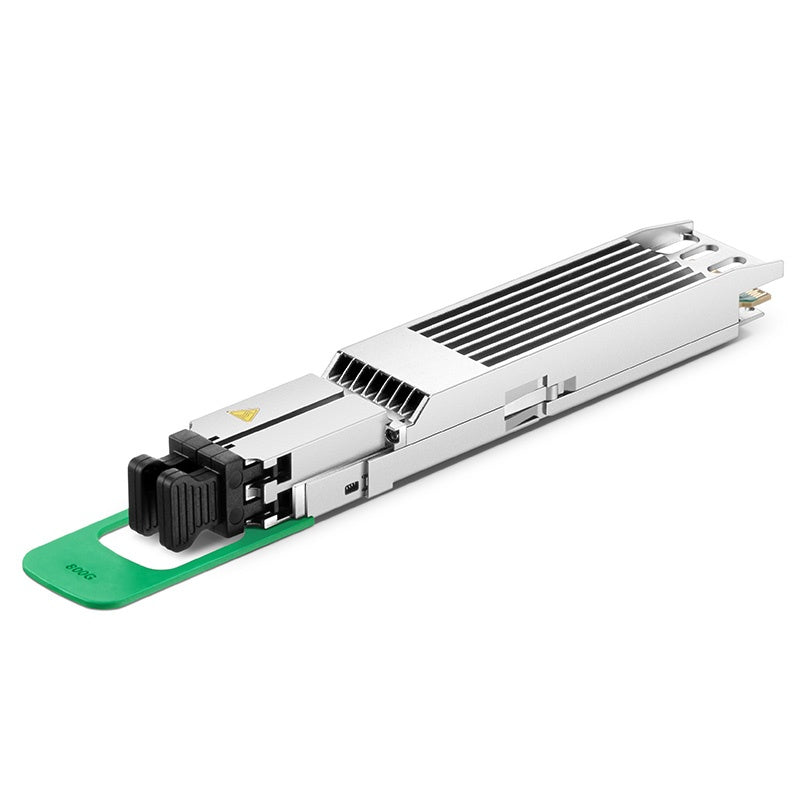

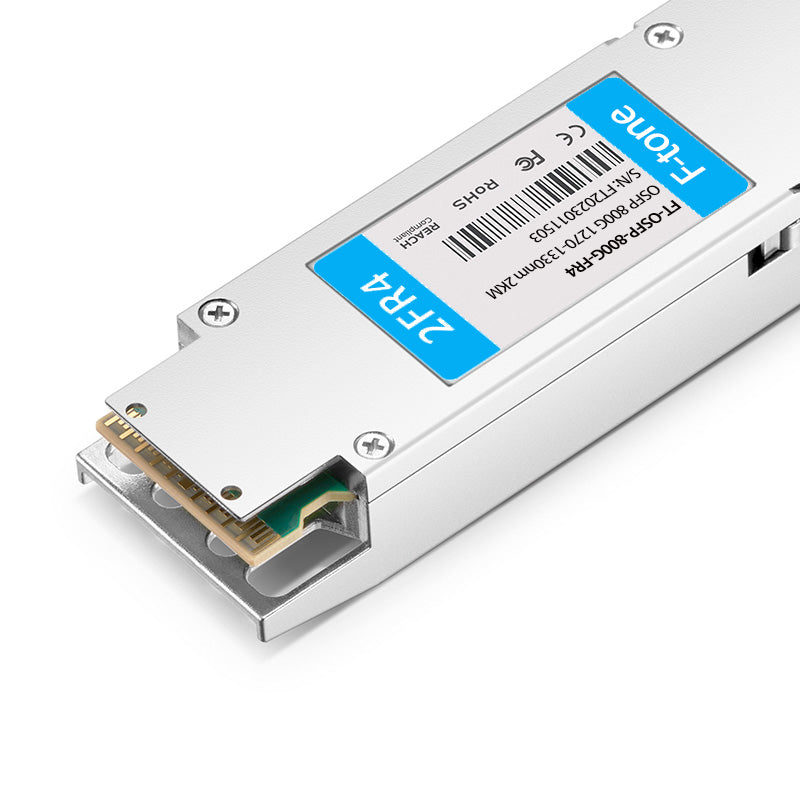

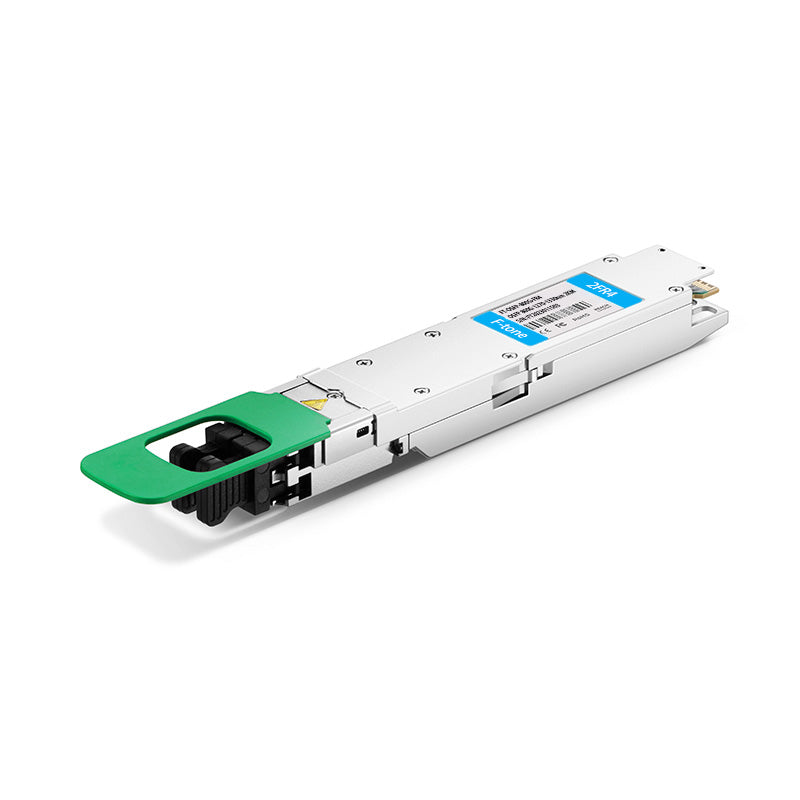

OSFP-800G-LR8 OSFP 8x100G LR Optical Transceiver Module (1310nm MPO-16 SMF 10km DDM)
F-tone OSFP 8x100G LR transceiver modules are designed for 800 Gigabit Ethernet links over 10 km of single-mode fiber. The module has 8 independent channels of electrical input/output, each operating at up to 106.25Gbps. This transceiver consists of two transmitter/receiver units, with each operating on a set of wavelengths on the ITU G.694.2 CWDM grid at 1310nm. The module's transmitter path consists of a bidirectional PAM4 re-timer ASIC integrated with a silicon photonic laser and two 4-channel modulator drivers. On the receiver path, 8 photodiodes and two 4-channel TIA arrays are used, along with a PAM4 re-timer.
Product Details
| F-tone P/N | OSFP-800G-LR8 | Vendor Name | F-tone |
|---|---|---|---|
| Form Factor | OSFP | Max Data Rate | 850Gbps(8x 106.25Gbps) |
| Wavelength | 1310nm | Max Distance | 10km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | MTP/MPO-16 | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | -1.9~+4.8dBm | Receiver Sensitivity | ˉ-8.2dBm |
| Operation Temperature | 0 to 70～C (32 to 158～F) | Maximum Power | <> |
| Protocols | CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu | Application | 800G Ethernet, Data Center Interconnect, Infiniband Interconnects |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
