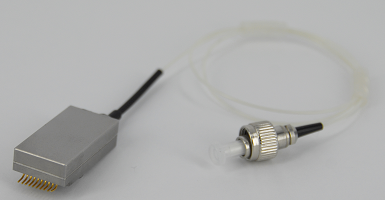

Other Special Series Optical Modules

Other Special Series Optical Modules

View full details

Other Special Series Optical Modules

Features
● Some products can support SD SDI / HD SDI / 3G SDI
● Customizable package structure
● Industrial temperature range
● RoHS compliant
● Module models such as dual-transmit and dual-receive are available
● +3.3V single power supply
Application
The module can be widely used in various digital optical communication systems, such as Gigabit Ethernet, Fibre Channel, etc.

Ordering Information

Model  Wavelength (nm) Data Rate Transmission Distance (km) Digital Diagnostic X
FTMF-BT151332-10Dx tx1550、1310 3Gb/s 10 Y E:Commercial grade
I: Industrial grade
M:  Military grade
FTMF-BR131532-10Dx rx1310、1550 3Gb/s 10 Y E:Commercial grade
I: Industrial grade
M:  Military grade
FTMF-BT131532-02x tx1310、1550 3Gb/s 2 N E:Commercial grade
I: Industrial grade
M:  Military grade
FTMF-BR151332-02x rx1550、1310 3Gb/s 2 N E:Commercial grade
I: Industrial grade
M:  Military grade
FTMF-BT131532-10x tx1310、1550 3Gb/s 10 N E:Commercial grade
I: Industrial grade
M:  Military grade
FTMF-BRCxxxx32-10x 1260～1620 3Gb/s 10 N E:Commercial grade
I: Industrial grade
M:  Military grade
FTMF-8532-5HDx 850 1.25Gb/s 500 Y E:Commercial grade
I: Industrial grade
M:  Military grade

Note: Pigtail/LC/ST pigtail interfaces are optional, and the pigtail length can be customized.

Mechanical Dimensions(mm)

Note: Undesignated tolerances: ±0.25mm

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
