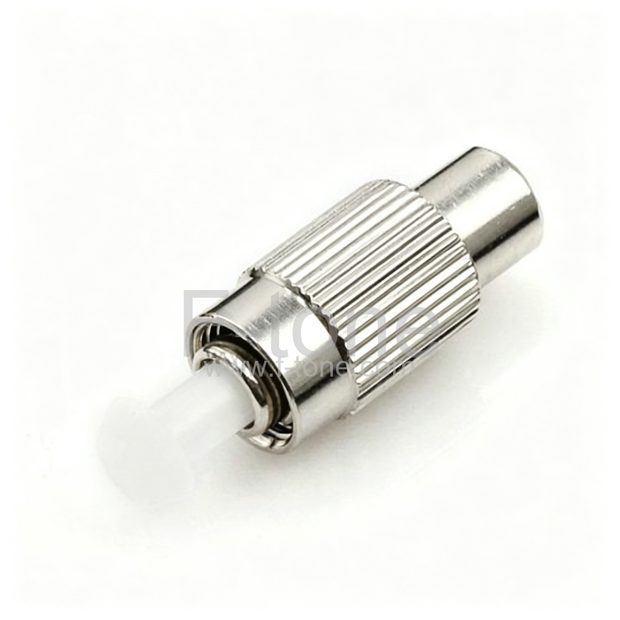

Part Number: PC-1550PMR-P1
Polarization-Maintaining Retroreflector 1440 - 1625 nm, FC/APC Connector
Polarization-Maintaining Retroreflectors
| Item #a | Fiber | Wavelength Range |
MFDb | Insertion Loss (Max)c |
Extinction Ratio (Min) |
Cladding Diameter |
Coating Diameter |
NA | Connectord |
|---|---|---|---|---|---|---|---|---|---|
| P1-630PMR-P01 | PM630-HP | 620 - 850 nm | 4.5 ± 0.5 µm @ 630 nm |
2.4 dB | 18 dB | 125 ± 2 µm | 245 ± 15 µm | 0.12 | FC/PC |
| P5-630PMR-P01 | FC/APC | ||||||||
| P1-780PMR-P01 | PM780-HP | 770 - 1100 nm | 5.3 ± 1.0 µm @ 850 nm |
2.0 dB | 18 dB | 125 ± 2 µm | 245 ± 15 µm | 0.12 | FC/PC |
| P5-780PMR-P01 | FC/APC | ||||||||
| P1-1060PMR-P0 | PM980-XP | 970 - 1550 nm | 6.6 ± 0.5 µm @ 980 nm |
1.4 dB | 22 dB | 125 ± 1 µm | 245 ± 15 µm | 0.12 | FC/PC |
| P5-1060PMR-P1 | FC/APC | ||||||||
| P1-1550PMR-P1 | PM1550-XP | 1440 - 1625 nm | 10.1 ± 0.4 µm @ 1550 nm |
1.0 dB | 22 dB | 125 ± 2 µm | 245 ± 15 µm | 0.12 | FC/PC |
| P5-1550PMR-P1 | FC/APC |
- All specifications based on unterminated fiber data.
- Mode Field Diameter (MFD) is a nominal, calculated valued, estimated at the operating wavelength using a typical value of NA and cutoff wavelength of the fiber.
- This insertion loss represents the input and output passes combined.
- Connectors are keyed and aligned to the slow axis.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
