Part Number: PC-PMDCA2

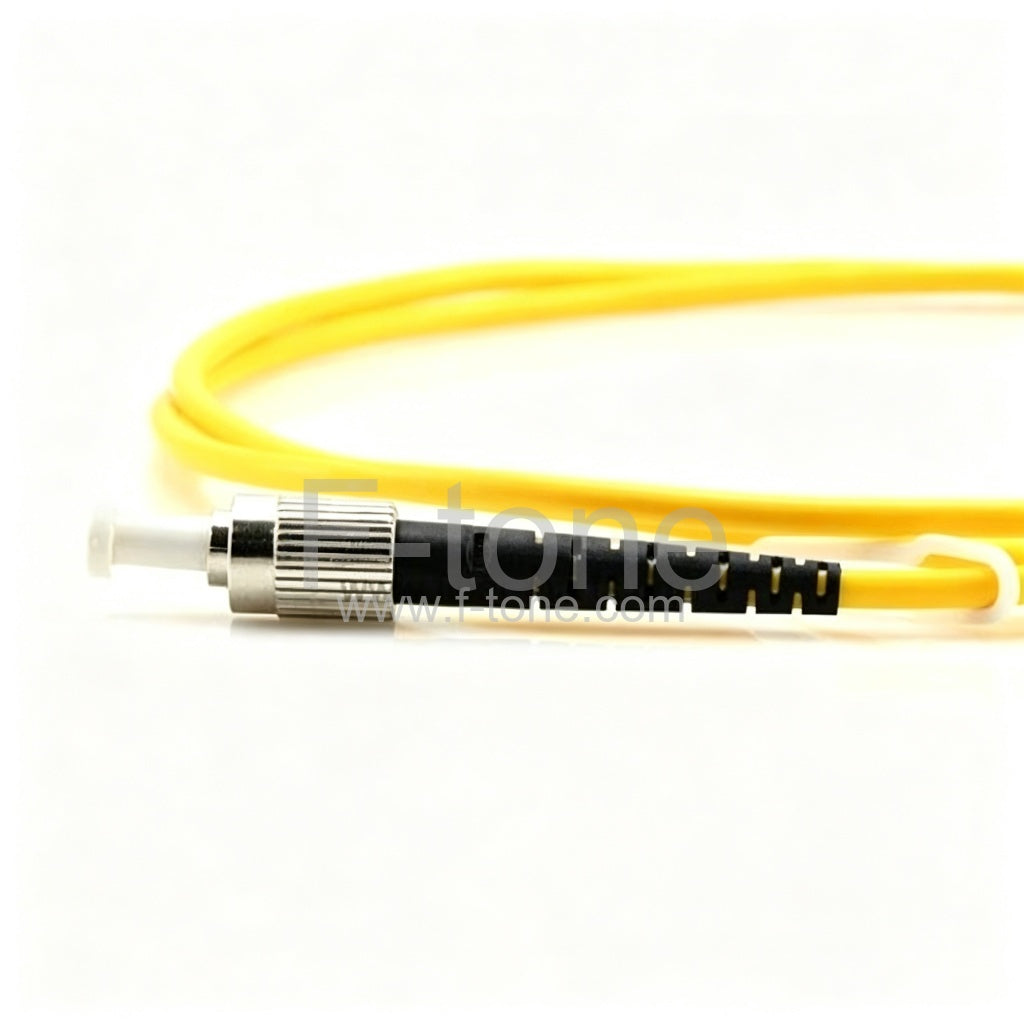

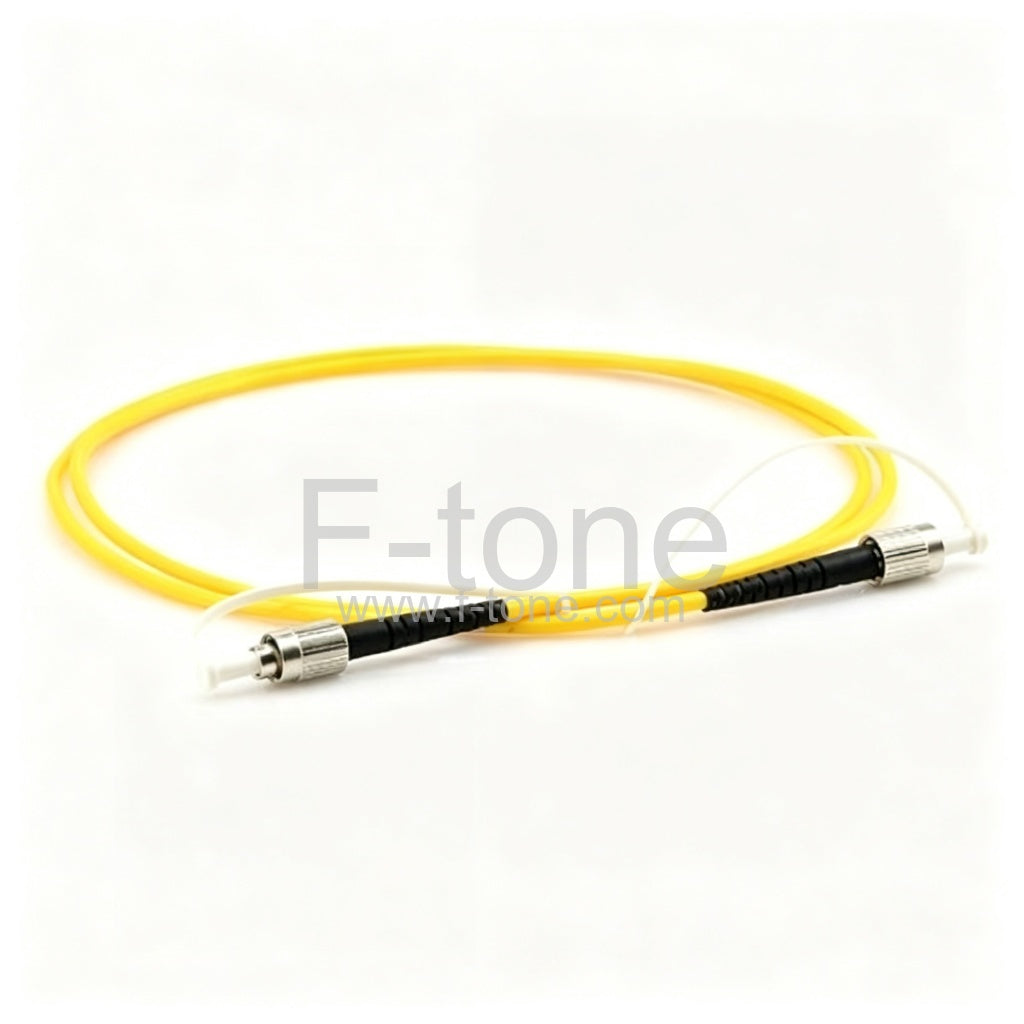

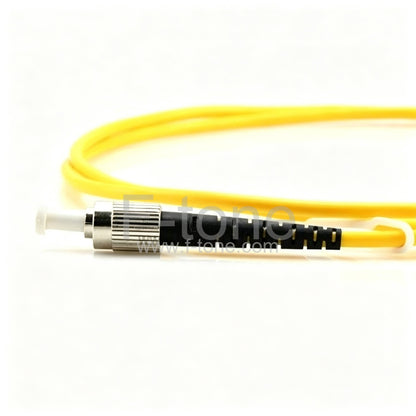

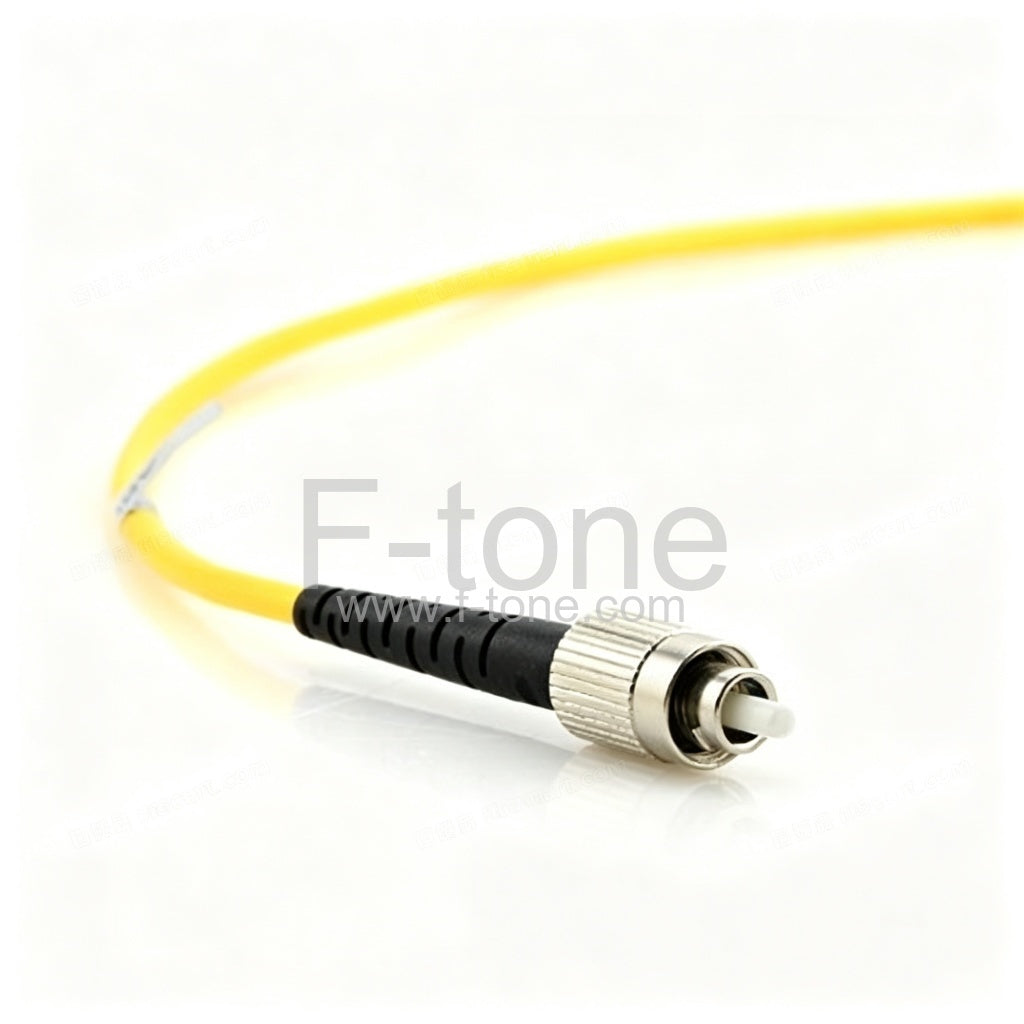

1550nm PM DCF FC/APC Polarization-Maintaining Dispersion-Compensating Fiber Patch Cable, 2M length
1550 nm PM DCF FC/APC Patch Cable
| Item # | Cable Fiber Typea | Cable Length | Operating Wavelength |
Cutoff Wavelength |
Extinction Ratio |
Insertion Lossb |
Total Dispersion | Compensated Fiber Type |
Compensated Length |
|---|---|---|---|---|---|---|---|---|---|
| PMDCA2 | PMDCF (PANDA) | 0.70 m | 1510 - 1620 nm | 1400 nm | >19 dB | <2.5 dB | -0.034 ± 0.004 ps/nm | PM1550-XP (PANDA) | 2 m |
| PMDCA5 | 1.20 m | -0.085 ± 0.009 ps/nm | 5 m |
- A short length of PM1550-XP fiber is spliced onto each end of the DCF to minimize coupling loss when connecting to PM1550-XP patch cables.
- Measured at the Test Wavelength of 1550 nm
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
