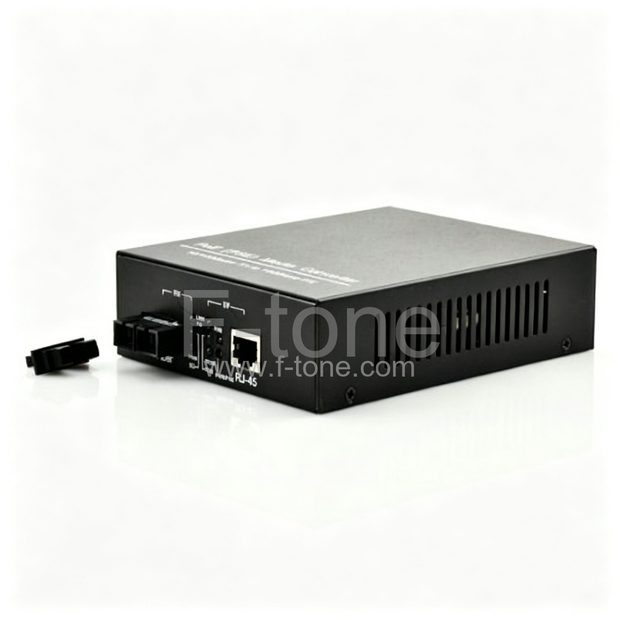

Mini 4E1+1*10/100M PDH Fiber Optical Multiplexers Singlemode Dual Fiber 20KM (with the orderwire phone)

Part Number: PDH-4E1-100M-Mini-P

Mini 4E1+1*10/100M PDH Fiber Optical Multiplexers Singlemode Dual Fiber 20KM (with the orderwire phone)

The Mini 4E1+10/100M PDH fiber optical multiplexer is a fiber media transport for 4E1 x E1 + 1 10/100BaseT transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC or FC. In single mode they are available in up to 120 km versions reach, which will provide the ability to transmit and receive data using only a single optical fiber pair. Special mini type version model can be used anywhere where space is limited, like outdoor boxes and cabinets, high equipment density populated areas and elsewhere!

Specifications

• Single mode dural optical port-4 channels of E1 ports
• 1 Enthernet port share 10M or 100M bandwidth
• Low power consumption
• ISO certification
• Optional Power redundancy to ensure stable system
• Optional function of ALS and SNMP
• Optional fiber redandancy are provided
• Optional orderwire phone are provided

Main Feature

• The 4E1 to fiber multiplexer
• 1 Enthernet port share 10M or 100M bandwidth
• Provide function of 4E1 remote loop,fiber local loop,and 1 interface phone
• Optional power 1+1 to ensure stable system
• Two fiber two direction and single fiber two direction
• 1+1 power,orderwire phone and the ALS and SNMP are optinal,Please state the requirement when in order
• 4E1 PDH multiplexer realizes 1~4E1 transmission over fiber
• E1 spur track loop back testing features, easy to be installed and maintenance
• External dimensions: The mini style
• Optical optional by customer 's requirement

Interface

Power Requirements

• Power Input: AC /DC optional
• AC180V~240V
• DC-36V~DC-72V
• DC+20V~DC+36V
• Power Consumption: <6Walt

Working Environment

• Operating Temperature: 0℃ ~+50℃
• Storage Temperature: -40℃ ~+70 ℃

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
