Part Number: PDH-4E1-19

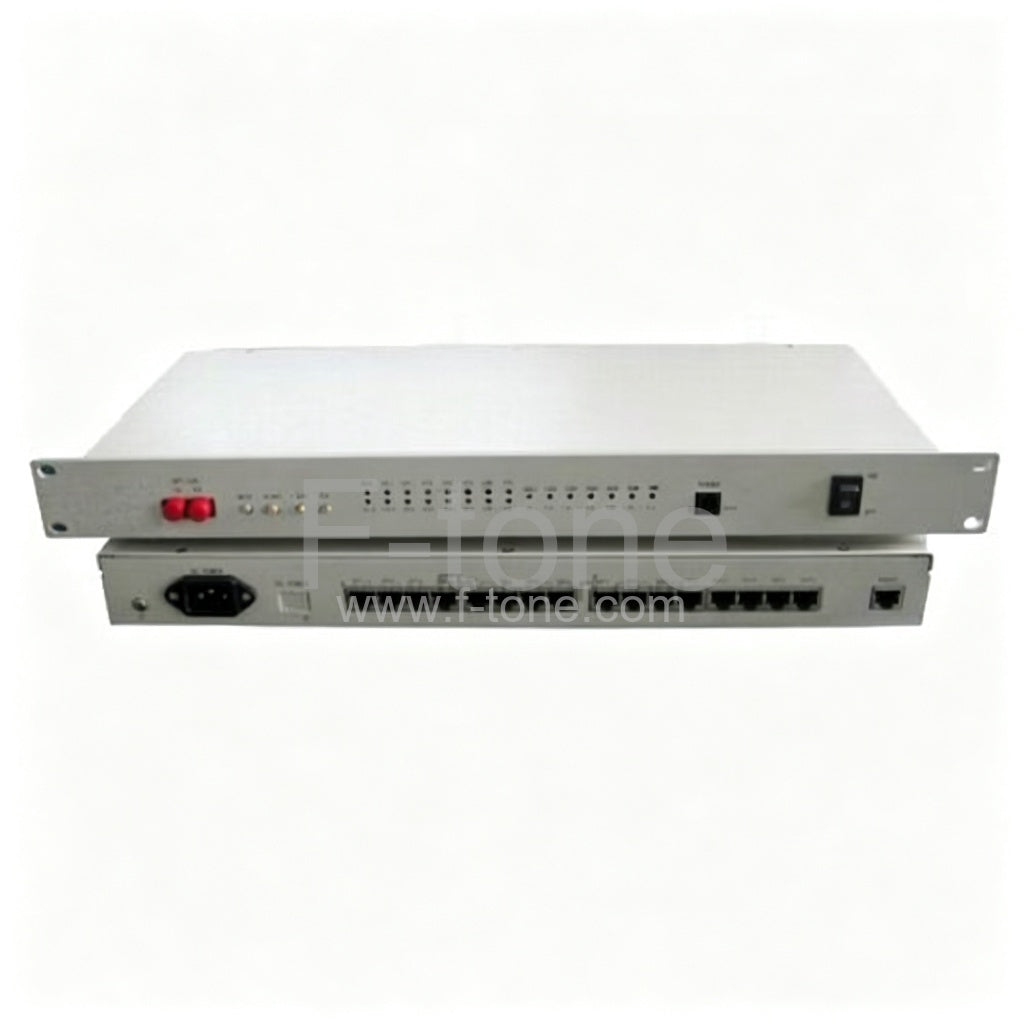

4E1 PDH Fiber Optical Multiplexers Singlemode Dual Fiber 20KM 19 Inch Rack
The 4E1 PDH fiber optical multiplexer is a fiber media transport for 4 x G.703 E1 transmission. The BNC model provides unbalanced 75 Ohm coaxial connections while the RJ-45 model provides balanced 120 Ohm connections over twisted pair wiring. All media converters are available with either multi-mode or single-mode optical tranceivers and with connectors for SC or FC.
Specifications
- Single mode dual optical port-4 channels of E1 ports
- Low power consumption
- ISO certification
- Optional fiber redandancy are provided
- Optional Power redundancy to ensure stable system
- Optional orderwire phone are provided
- Optional function of ALS and SNMP
Main Feature
- Provide 4E1 interface (120BG telephone channel)
- Provide function of 4E1 remote loop,fiber local loop,and 1 interface phone
- Optional 1+1 fiber,and order wirephone,and the ALS and SNMP,Please state the requirement when in order
- Two fiber two direction and single fiber two direction
- 4E1 PDH multiplexer realizes 1~4E1 transmission over fiber
- E1 spur track loop back testing features, easy to be installed and maintenance
- External dimensions: 19-inch rack (with distribution frames rack)
- Provide the 1+1 fiber back up
- Optical optional by customer 's requirement
Interface
| E1 interface | 4E1 interface for 4E1 |
|---|---|
| E1 rate: 2.048Mb/s±50ppm | |
| Code type: HDB3 | |
| E1 Style: Pinfet | |
| E1 comply with ITU-T G.703 | |
| Jitter compl y with ITU-T G.823 and G.742 | |
| E 1 with DB37. Be ab le to be with 75Ω (BNC) or 120Ω (RJ45) by adaptor in the accessory | |
| Fiber | Optical rate: 16.896Mbit/s |
| optical style:1B1H | |
| Default: dual fiber, single mode, 20km (40km optional) | |
| connector: FC /SC | |
| wavelength:1310nm | |
| Receiver sensitivity:≤ -38dBm(BER ≤ 10-11) |
Power Requirements
- Power Input: AC /DC optional
- AC180V~240V
- DC-36V~DC-72V
- DC+20V~DC+36V
- Power Consumption: <6Walt
Working Environment
- Operating Temperature: 0℃ ~+50℃
- Storage Temperature: -40℃ ~+70 ℃
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
