Part Number: PLC-BM-FT-C

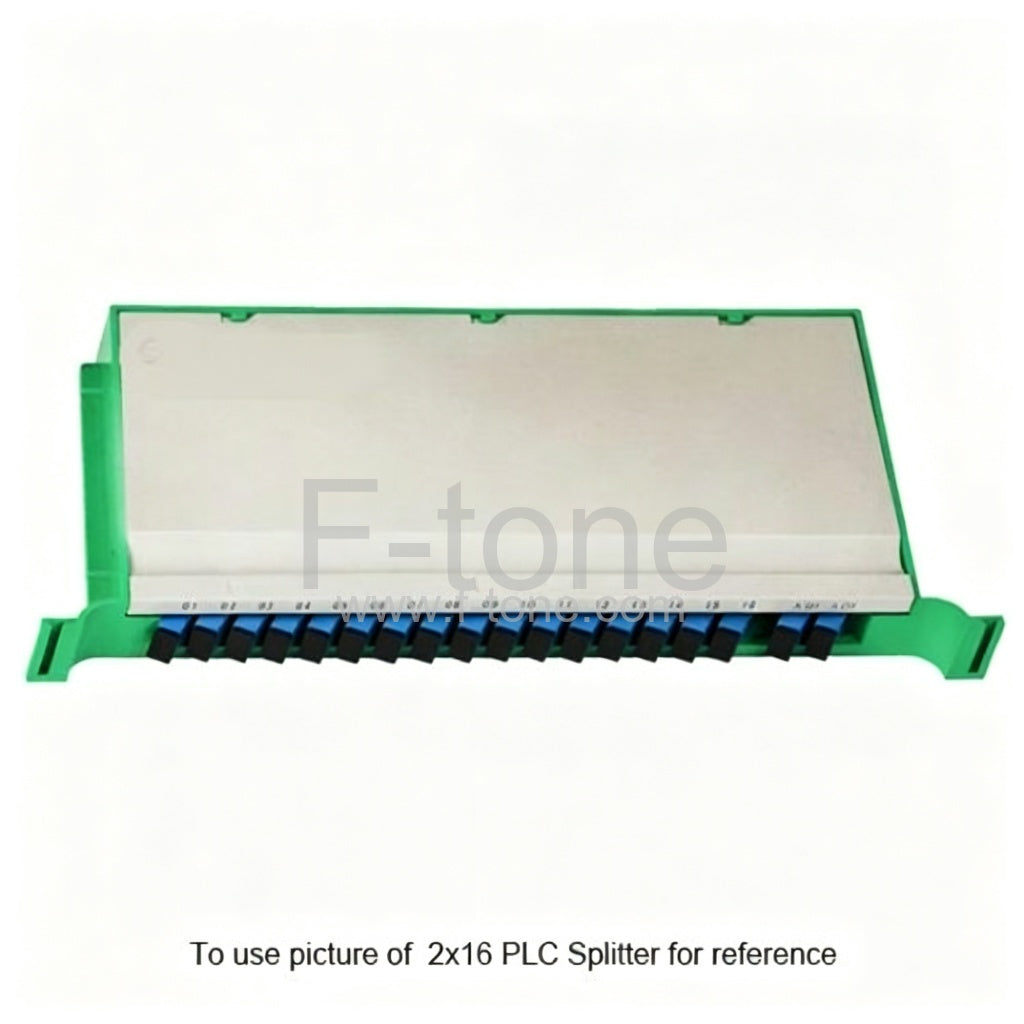

Blade Module Fiber Splitter 1xN,2xN, FC/ST, UPC/APC Custom
FTTH PLC Splitter Terminal Solution How does the optical singnal transmit from OLT to ONU via PLC splitter
Learn More
1/2×N Fiber PLC Splitter, Mini Plug-in Type, Singlemode
PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. F-tone.COM provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 Mini Plug-in type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
The 1/2×N Mini Plug-in Fiber PLC Splitter supports FC & ST connectors for choice.
| Port Configuration | 1/2XN | Fiber Type | G.657A |
|---|---|---|---|
| Connector Type | FC/ST in APC/UPC | Operating Wavelength | 1260~1650nm |
| Typical Insertion Loss | -- | Max. Insertion Loss | -- |
| Max. Loss Uniformity | -- | Min. Return Loss | 50dB |
| Max. PDL | -- | Min. Directivity | 55dB |
| Max. Wavelength Dependent Loss | 0.3dB | Max. Temperature Dependent Loss(-40~+85°C) | 0.5dB |
| Operating Temperature | -40~+85°C | Storage Temperature | -40~+85°C |
Features & Application
Accessories for Complete Outdoor 1/2xN PLC Splitter
Make to Order
Notes
1. When package style is ST, fiber diameter could be only 25=250um, connector could be only NO=none.
2. When package style is MM & FO, fiber diameter could be only 900um.
3. When package style is AB, fiber diameter could be 90=900um, 20=2.0mm, 30=3.00mm for optional.
4. When package style is MP, LGX, TR and 1U, "fiber diameter for input/output" & "pigtail length" could be left out, as the specific product would be made according to its configuration.
| PLC | Port Configutation | Package Style | Fiber Diameter(Input/Output) | Connector(Input/Output) | Pigtail Length |
|---|---|---|---|---|---|
| PLC=PLC Splitter | 102=1×2 | ST=Steel tube(bare fiber) | 25=250μm | NO=None | 15=1.5m |
| 104=1×4 | MM=Mini module | 90=900μm | SCA=SC/APC | 20=2.0m | |
| 108=1×8 | FO=With fan-out | 20=2.0mm | SCU=SC/UPC | 30=3.0m | |
| 116=1×16 | ABS=Pigtailed ABS box | 30=3.0mm | LCA=LC/APC | XX=Customized | |
| 132=1×32 | MP=Mini plug-in type | LCU=LC/UPC | |||
| 164=1×64 | LGX=Standard LGX | FCA=FC/APC | |||
| 202=2×2 | TR=Mounted on a Fiber Splice Tray | FCU=FC/UPC | |||
| 204=2×4 | 1U=1U 19” rack mount chassis | STA=ST/APC | |||
| 208=2×8 | STU=ST/UPC | ||||
| 216=2×16 | X=Customized | ||||
| 232=2×32 | |||||
| 264=2×64 |
Package & Mechanical Drawing
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
