Part Number: PLC-RM-FT-C
Fiber PLC Splitter 1xN 2xN, 1U Rack Mount Type, Singlemode
FTTH PLC Splitter Terminal Solution How does the optical singnal transmit from OLT to ONU via PLC splitter
Learn More
PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. F-tone.COM provides a various of 1 N and 2 N PLC splitters, including 1 2 to 1 32 and 2 2 to 2 32 1U Rack Mount type, 1 64 and 2 64 2U Rack Mount type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
The 1U Rack Mount type adopts 1U frame, or customize according to actual requirement. It can be installed in ODF canonically and syncretize with appreance of box/cabinet body via canonical fiber distribution. The 1/2 N 1U Rack Mount Fiber PLC Splitter supports SC, LC, FC & ST connectors for choice.
Product Details
| Package Style | Rack Mount | Configuration Type | 1/2xN |
|---|---|---|---|
| Fiber Type | Singlemode G.657A1 | Operating Bandwidth | 1260~1650nm |
| Connector Type | FC/ST | Polishing Type | UPC/APC |
| Operating Bandwidth | 1260~1650nm | Operating/Storage Temperature | -40~85C |
Product Highlights

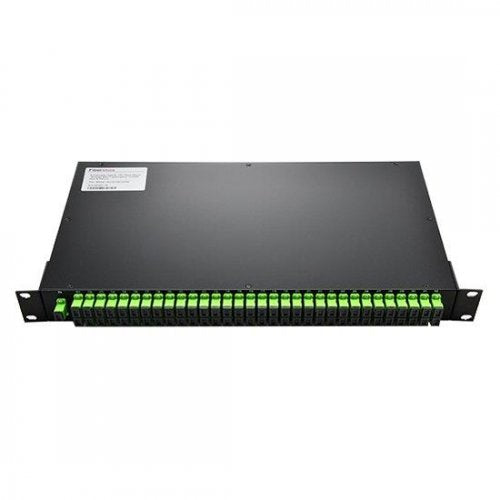

1U Rack Mount Type PLC Splitter
- 1/2xN PLC splitter,FC/ST connector
- Good channel-to-channel uniformity
- High polarization extinction ratio
Perfect Details of 1U Rack Mount Type PLC Splitter
Uniform Distribution of Optical Signal
Connecting the central office and terminal apparatus to realize uniform distribution of the optical signal.
High Environmental Stability
The outer material Alluminum alloy features excellent resilience and strength, keeping it low insertion loss.
Exquisite and Rugged Packaging
The design and packaging is exquisite to ensure the product in good condition.
Simple Mounting and Easy Connection
Loaded with a pigtailed ABS module, can be easily mounted in cabinet for uniform optical signal distribution
Various Applications of Rack Mount PLC Splitter
Important passive component in PON network
Widely used in CATV, LAN/MAN/WAN network, data communications, security monitoring system, optical communication system and testing equipment, etc.
Technical Parameter
| Parameter | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
|---|---|---|---|---|---|---|
| Fiber Type | G.657A | G.657A | G.657A | G.657A | G.657A | G.657A |
| Operating Wavelength (nm) | 1260~1650 | 1260~1650 | 1260~1650 | 1260~1650 | 1260~1650 | 1260~1650 |
| Typical Insertion Loss (dB) | 4.1 | 7.2 | 10.4 | 13.4 | 16.4 | 19.9 |
| Max Insertion Loss (dB) | 4.4 | 7.6 | 10.9 | 13.9 | 17.3 | 21.4 |
| Max Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Min Return Loss (dB) | 50 | 50 | 50 | 50 | 50 | 50 |
| Max PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Min Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Max Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 |
| Max Temperature Dependent Loss (-40~+85C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 |
| Operating Temperature (C) | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 |
| Storage Temperature (C) | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
