Part Number: PM-EDFA-17

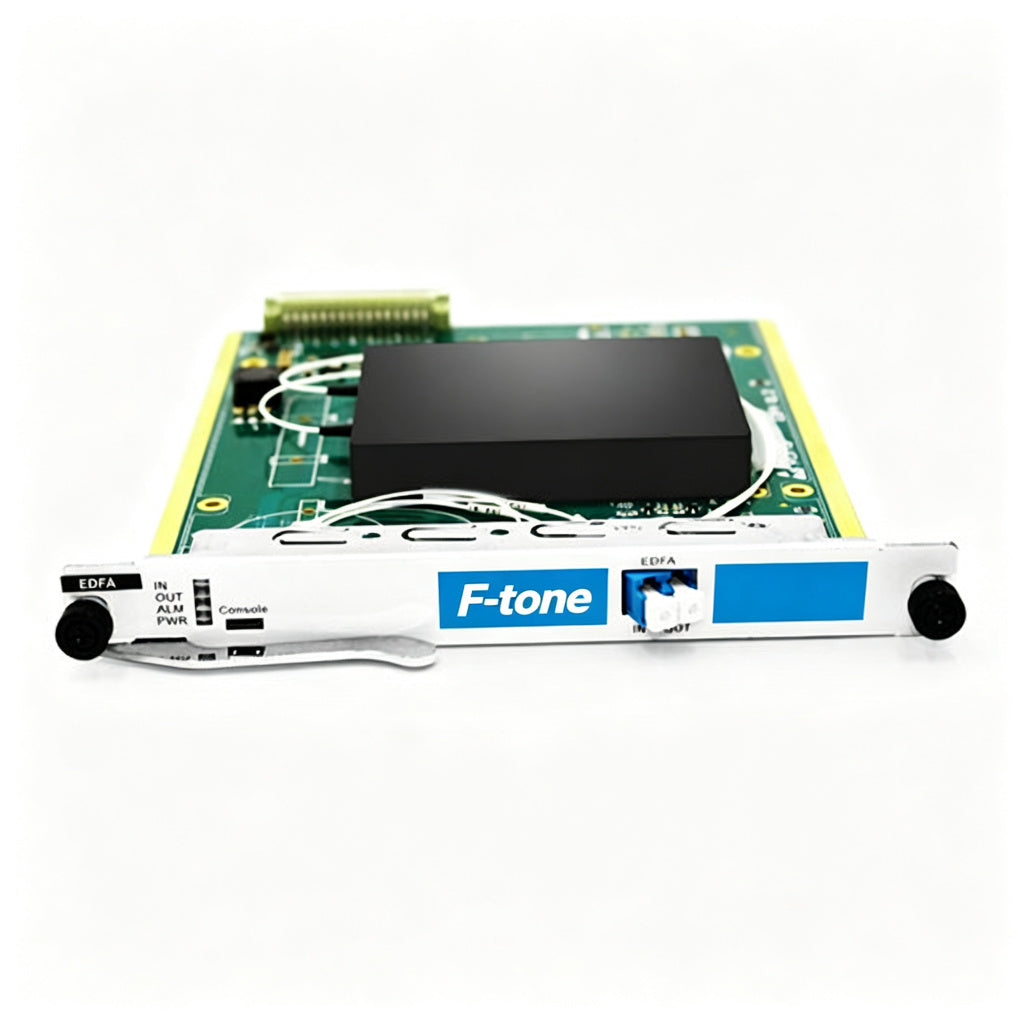

Polarization Maintaining EDFA Fiber Optic Amplifier 17dBm Output 1550nm
Description
This optical amplifier is high stability output Polarization Maintaining (PM) EDFA. The key components of the product are high reliability PUMP laser. A unique APC (Automatic Power Control) and ATC (Automatic Temperature Control) circuit insures the high stability and reliability output power,the unique optical circuit design ensures the excellent optical performance. The high stability and high precision MPU system to ensure the control, adjustment and monitor are intelligent and easy.
Features
- Output stability <0.1dB
- Single mode PM output
- High stability and reliability: MTBF＞100000 hours
- Perfect status monitoring interface: RS-485 and RS-232
- High precision AGC/APC circuit: power control accuracy typ ±0.05dB
- Intelligent temperature control system: power consumption and hot radiation reduce 30％ than common products
- Compact size and circuit
- OEM is optional
- Compatible with Bellcore GR-1312-CORE
Applications
1. PM fiber sensor
2. Coherent detection
3. Free space optical communication
4. Research and Design area
Mechanical Dimension
Module dimension: 150×125×19 (mm)
Order Information
| Category | Application | Input power | Output power | Output ports | Voltage | Interface |
|---|---|---|---|---|---|---|
| M:Module | 3: Polarization | 1：+10dBm | 15:15dBm | 1:1port | 7：5VDC | 1: SC/UPC |
| 1:1U | 9：other | 17：17dBm | 2:2ports | 8：3.3VDC | 2: SC/APC | |
| B:Benchtop | 22：22dBm | 3: FC/UPC | ||||
| 4: FC/APC | ||||||
| 5: LC/UPC | ||||||
| 6: LC/APC |
Optical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Wavelength | λ c | 1530 | 1550 | 1560 | nm |
| Output power | Po | ---- | ---- | 17 | dBm |
| Input Power | Pi | ---- | 10 | ---- | dBm |
| Gain | G | ---- | 20 | ---- | dB |
| Noise Figure 2 | NF | ---- | 5 | 5.5 | dB |
| Output power stability | Δ Po | ---- | ±0.05 | ±0.1 | dB |
| Return Loss | RL | ---- | ---- | -45 | dB |
| Output fiber | Polarization output |
Electric Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Power Supply | Vps | 3.0/4.5 | 3.2/5.0 | 3.5/5.5 | VAC |
| Consumption ※ | P | ---- | ---- | 100 | W |
※Actual consumption depend on the output power and environment temperature
Environmental Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating temperature | Tw | -5 | ---- | 60 | ℃ |
| Storage Temperature | Ts | -40 | ---- | 80 | ℃ |
| Humidity | ---- | 10 | ---- | 85 | % |
Note:Non-condensing
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
