Part Number: PMDWDM-32-1550-ABS

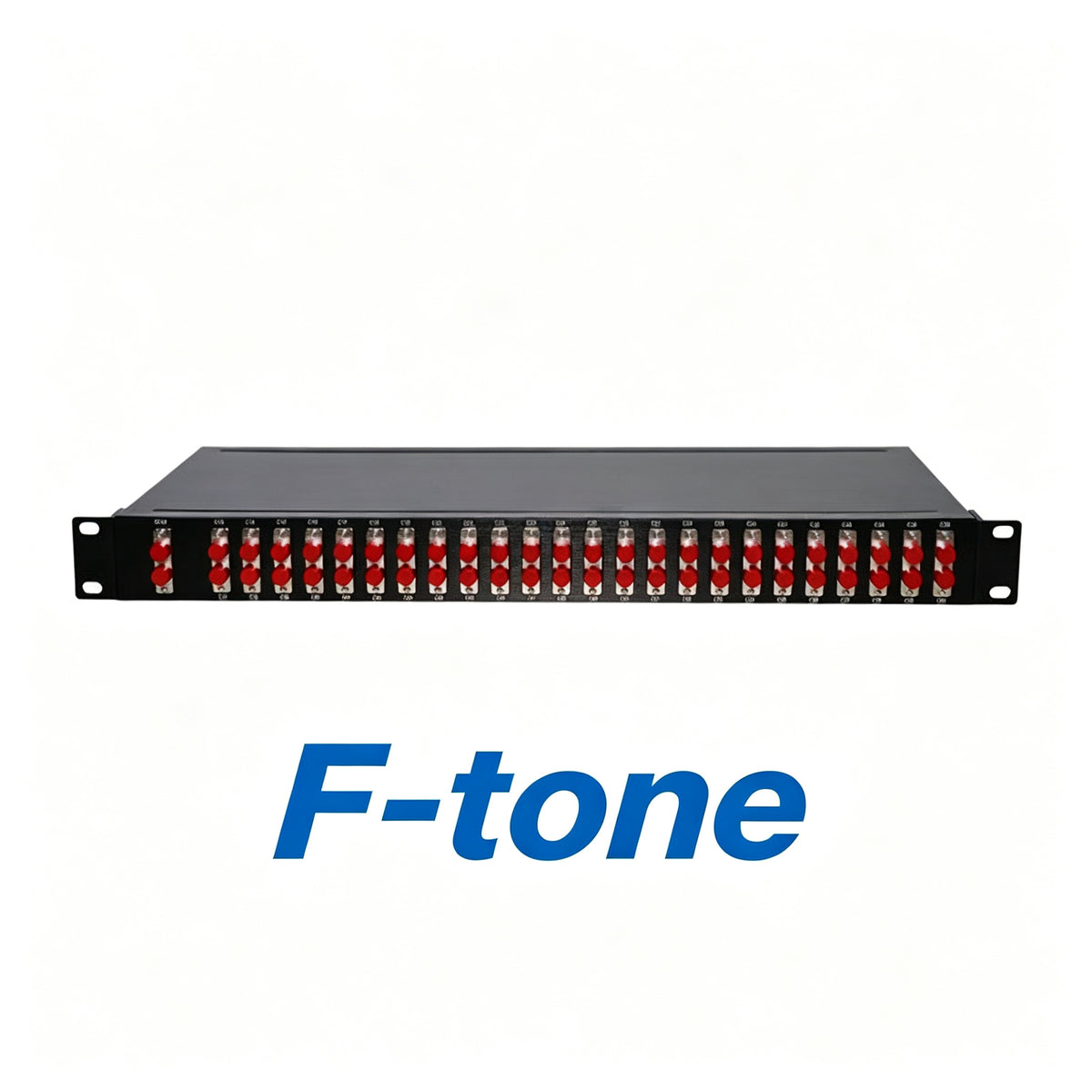

32 channels, PM1550 DWDM Mux & Demux Type A, Pigtailed Module Simplex BIDI, Athermal AWG PM Fiber
PM DWDM MUX & DEMUX AAWG
Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over one fiber.
PM DWDM Mux/Demux modules are part of a series of high performance products based on silica-on-silicon planar technology. The AWG chips F-tone.Com used for PM Fiber DWDM Mux/Demux are targeted for Long-Haul, Metro and access applications, where outstanding optical performance and low cost are paramount.
Athermal Arrayed Waveguide Grating (AAWG) DWDM Modules features of athermal packaging design require no electrical power, software or temperature control.
Thermal Arrayed Waveguide Grating (TAWG) DWDM Modules are designed for use within the C-band release of DWDM system. To decrease the power dissipation of the devices in different environmental conditions, the AWG package is special designed with selection of reliable thermal plastic with low thermal conduction, and the AWG operating temperature is controlled by using foil resist heater or Peltier TEC with thermistor temperature sensor.
The channel spacing for DWDM is 1.6/0.8/0.4 nm (200GHz/100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously much more information
Specifications
| Parameters | Specifications(Flat Top） | Unit | ||
| Min. | Typ. | Max. | ||
| Number of Channels | 32（C19-C50） | CH | ||
| Number Channel Spacing | 100 | GHz | ||
| Center Wavelength | C-band | nm | ||
| Center Wavelength Channel Passband | ±0.10 | nm | ||
| Wavelength Accuracy | ±0.06 | nm | ||
| 1dB Channel Bandwidth | 0.4 | nm | ||
| 3dB Channel Bandwidth | 0.58 | nm | ||
| 20dB Channel Bandwidth | 1.2 | nm | ||
| Insertion Loss | 4.5 | 5.5 | dB | |
| Ripple | 0.2 | 0.5 | dB | |
| Uniformity | 0.8 | 1.5 | dB | |
| Adjacent Channel Isolation | 25 | 28 | dB | |
| Non-Adjacent, Channel Isolation | 30 | 35 | dB | |
| Total Crosstalk | 21 | dB | ||
| Directivity | 45 | dB | ||
| Return loss | 40 | dB | ||
| Extinction ratio | 15 | dB | ||
| Polarization Mode Dispersion | 0.5 | ps | ||
| Chromatic Dispersion | -20 | +20 | ps/nm | |
| Maximum Input Power | 300 | mW | ||
| Operating Temperature | -10 | +70 | C | |
| Storage Temperature | -40 | 85 | C | |
| Fiber Type | PM1550,900um | / | ||
| Fiber Length | 1 | m | ||
| Connector | FC/APC | / | ||
| Package size | 120X70X10 | mm | ||
Mechanical Dimensions
Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
