Part Number: PMOSW-1x3-X

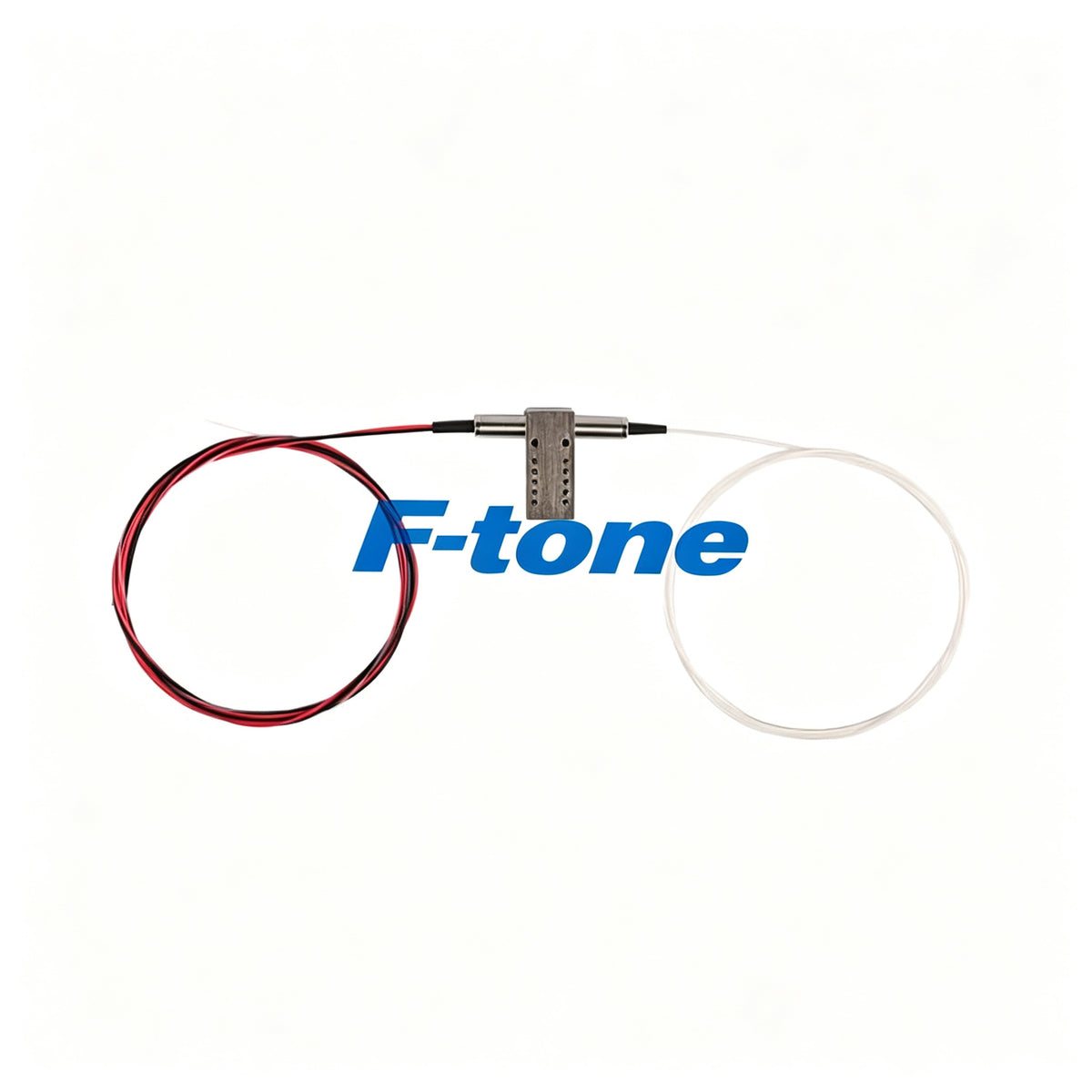

1x3 Mini Polarization Maintaining Optical Switch PM Switch 1550nm 5V Non-Latching 900um
F-tone Polarization Maintaining Optical Switch (PM Fiber Switches) is a passive component possessing two or more ports that selectively transmits, redirects or blocks optical signals from a given input port to a given output port in an optical fiber transmission line. F-tone’s polarization maintaining (PM) fiber switches are fabricated from PM panda fibers and high-quality connectors that are compatible with industry standards. They are able to maintain a well-defined state of polarization (SOP) of the light.
Features
- Low Insertion Loss
- Wide Wavelength Range
- Low Crosstalk
- High Stability, High Reliability
- Epoxy-free on Optical Path
- Latching and Non-latching
Application
- Metropolitan Area Network
- R&D in Laboratory
- System Monitoring
- Configurable OADM
Dimension
Performance
| Parameters | PMOSW-1X3 | ||
|---|---|---|---|
| Fiber type | nm | PM630 | PM 1310 PM1550 |
| Testing Wavelength | nm | 630 | 1310 1550 |
| Insertion Loss | dB | Typ:1.0,Max:1.3 | Typ:1.0 ,Max:1.2 |
| Return Loss | dB | ≥30 | ≥50 |
| Crosstalk | dB | ≥35 | ≥50 |
| ER | dB | 18.00 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power supply | v | 3.0 or 5.0 | |
| Lifetime | Cycle | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operation Temperature | ℃ | -40~+85 | |
| Storage Temperature | ℃ | -40~+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)33×(W)26×(H)8.5(±0.2) | |
Pins
| Latching | Relay1 | Relay2 | Relay1 | Relay2 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pin1 | Pin5 | Pin6 | Pin10 | Pin1 | Pin5 | Pin6 | Pin10 | 2-3,8-9 | 3-4,7-8 | 2-3,8-9 | 3-4,7-8 | |
| Port0-Port1 | V+ | GND | -- | -- | -- | -- | GND | V+ | Open | Close | Close | Open |
| Port0-Port2 | V+ | GND | -- | -- | V+ | GND | -- | -- | Open | Close | Open | Close |
| Port0-Port3 | -- | -- | GND | V+ | V+ | GND | -- | -- | Close | Open | Open | Close |
| Port0-Port4 | -- | -- | GND | V+ | -- | -- | GND | V+ | Close | Open | Close | Open |
| NON-Latching | Relay1 | Relay2 | Relay1 | Relay2 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pin1 | Pin5 | Pin6 | Pin10 | Pin1 | Pin5 | Pin6 | Pin10 | 2-3,8-9 | 3-4,7-8 | 2-3,8-9 | 3-4,7-8 | |
| Port0-Port1 | V+ | -- | -- | GND | -- | -- | -- | -- | Open | Close | Close | Open |
| Port0-Port2 | V+ | -- | -- | GND | V+ | -- | -- | GND | Open | Close | Open | Close |
| Port0-Port3 | -- | -- | -- | -- | V+ | -- | -- | GND | Close | Open | Open | Close |
| Port0-Port4 | -- | -- | -- | -- | -- | -- | -- | -- | Close | Open | Close | Open |
Ordering Information：PMOSW－1X4－A － B－C－D－E－F－G
| A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|
| Fiber Mode | Wavelength | Voltage | Control Model | Fiber Diameter | Fiber Length | Connector |
| P13:PM1310 P15:PM1550 |
85: 850nm 13: 1310nm 14: 1490nm 15: 1550nm 162: 1625nm 165: 1650nm 13/15:1310/1550nm |
3: 3V 5: 5V |
L: Latching N:Non-Latching |
25:250um 90:900um |
05:0.5m 10:1.0m 15:1.5m |
OO: None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
