Part Number: PPWS-LC-2F-FM

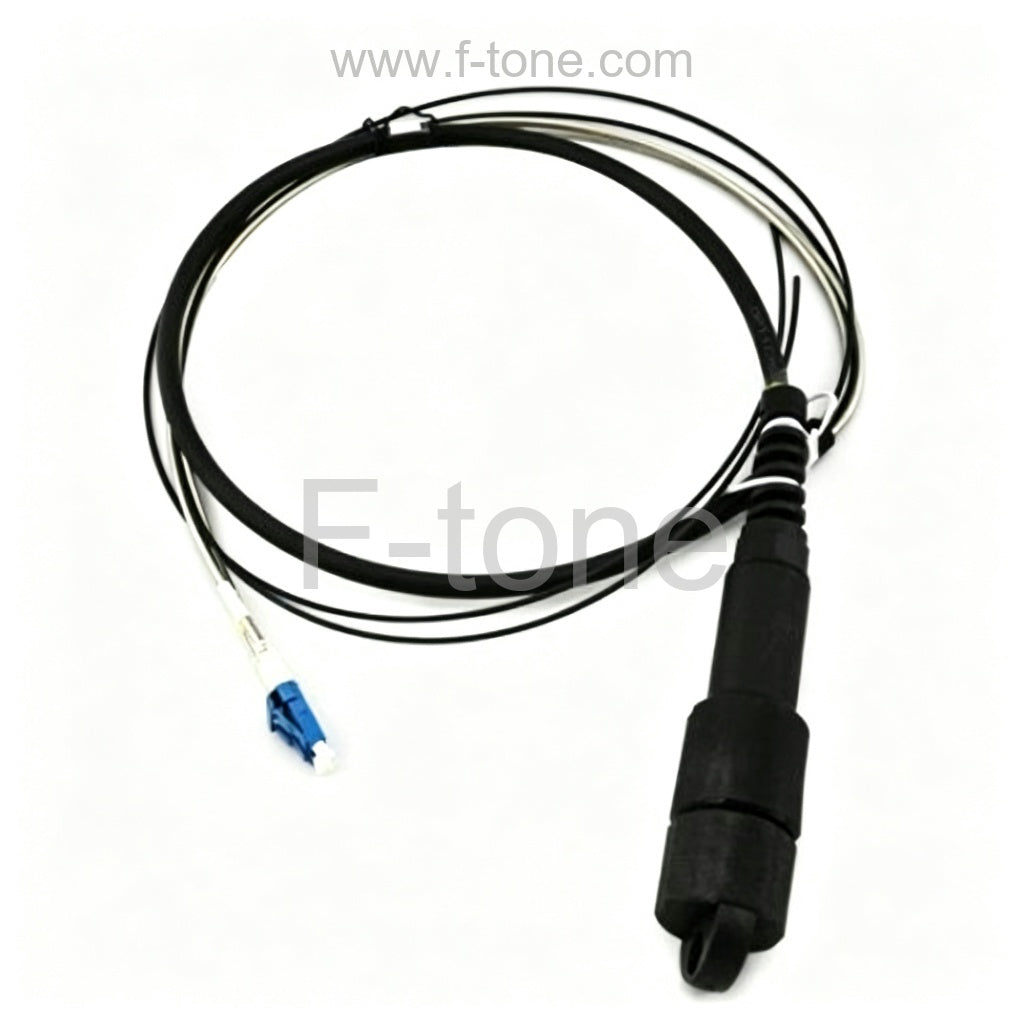

IP67 Waterproof Fiber Optic Patch Cable, Waterproof Type (Socket) to LC/SC/FC/ST, Duplex
The waterproof fiber optic patch cable features connectors with self-locking system, which can provide a secure mating way in mission-critical applications. It provides compact outdoor rated solutions for a safe shock-and-vibration-resistant connection. Renowned worldwide for its easy and quick mating and features, the self-latching system can provide absolute security against vibration, shock or pull on the cable, and facilitates operation in a very limited space. It possesses a lot of excellent characteristics, like small connection loss, high reliability, rugged, waterproof, dustproof and resistant to harsh environments, etc.
In F-tone, we can provide simplex, 2 fibers, 4 fibers and a variety of multi-core electrical connectors, other models can also be designed and manufactured according to customer's needs.
| Product Type | Waterproof Cable | Fiber Type | Duplex |
|---|---|---|---|
| Connector1 | Waterproof Type Socket | Connector2 | LC/SC/FC/ST |
| Connector Polish | UPC | Locking system | Self-latching |
| Protection Rating | IP67 | Shell Material | chrome-plated brass |
| Durability | 5000 cycles | Operating Temperature | -55°C-200°C |
Cable Structure
Features
Safe Locking and Easy Installation
Compared to a traditional screw-thread mechanism, our patch cable is with unique, easy to use, push-pull locking system, which can reduce the time taken to achieve a robust connection. The push and pull system allows the connector to be mated by simply pushing the plug axially into the socket. Once firmly latched, connection cannot be broken by pulling on the cable or any other release sleeve.
Original High Performance Push-pull Connectors
In F-tone, the waterproof fiber optic patch cable are execellent for using in all kinds of outdoor waterpoof conditions, such as emergency repair quick connect system, radio and television industry, military exercise communications devices, power industry emergency communication system, etc. They are used externally on equipment that requires the cables to be cycled many times over the machine or system's lifespan.
Kindly Remind
As plug should work with socket, this product should be ordered together with the first item Waterproof Type (Plug) to LC/SC/FC/ST Waterproof Duplex Fiber Optic Patch Cable(Part Number: PPWP-LC-2F-FS), thus not to order individually. 1 fibers, 4 fibers waterproof plug and socket are also available.
Push-Pull Fiber Optic Patch Cable
| Item | Parameter |
|---|---|
| Fiber Count | 2 fibers |
| Fiber Mode | Singlemode/Multimode |
| Cable Diameter | 5.0mm |
| Shell Material | chrome-plated brass |
| Locking System | Self-latching |
| Protection Rating | IP68 |
| Endurance | > 5000 cycles |
| Humidity | up to 95%at 60° C |
| Temperature Range | -55° C-200° C |
| Resistance to Vibrations | 10-2000 Hz/15 g |
| Shock Resistance | 100g/6ms |
| Salt Spray Corrosion Test | > 1000h |
| Climatical Category | 50/175/21 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
