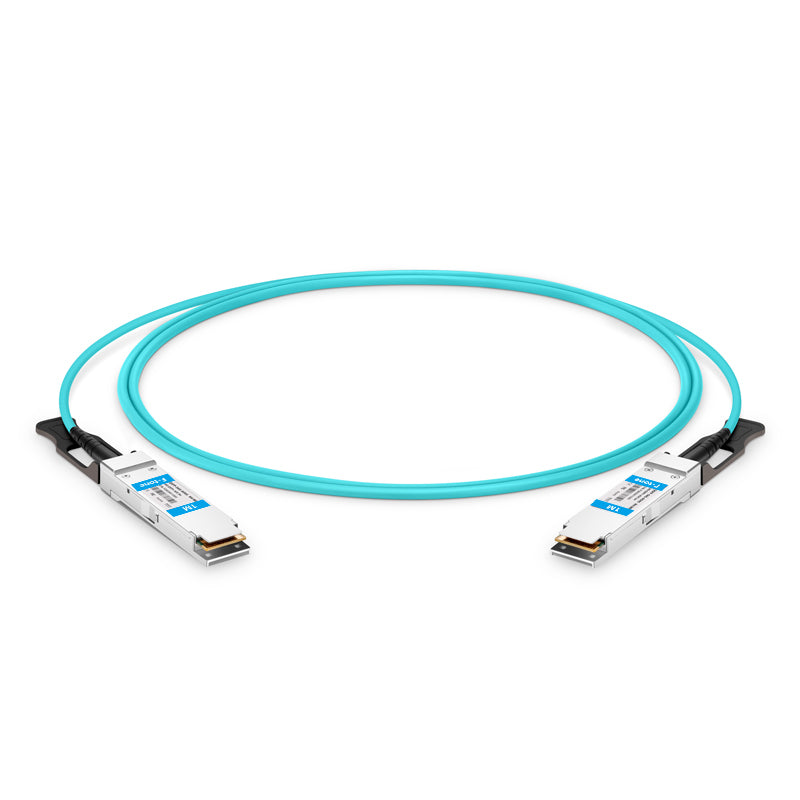

Custom 56G QSFP+ AOC Active Optical Cable

Custom 56G QSFP+ AOC Active Optical Cable

View full details

Part Number: QSFP-56G-AOC-XFM

Custom 56G QSFP+ AOC Active Optical Cable

Part Number QSFP56-AO02 Vendor Name F-tone
Connector Type QSFP+ to QSFP+ Data Rate FDR 56Gbps
Minimum Bend Radius 7.5mm Cable Length Custom
Jacket Material OFNP/LSZH Temperature 0 to 70°C (32 to 158°F)
Protocols 56G InfiniBand , 4x FDR, Fibre Channel

Datasheet

Part Number Data Rate Fibers Port
10GSFP-AOC-XFM 10G OM2/OM3 SFP+
SFP28-25G-AOC-XFM 25G OM2/OM3 SFP28
QQ-AOC-XFM 40G OM3 QSFP+
QSFP4S-AOC-XFM 40G OM3 QSFP+ to SFP+
QSFP-8X-AOC-XFM 40G OM3 QSFP+ to LC
QSFP-56G-AOC-XFM 56G OM3 QSFP+
QSFP-100G-AOC-XFM 100G OM3/OM4 QSFP28
QSFP28-AOC-4SFP28-XFM 100G OM3/OM4 QSFP28 to SFP28
Quality Testing Program

Take a look at our optics test program and see what truly sets us apart.

Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Platform Support

Having been individually tested on a large amount of branded switches and servers, F-tone generic compatible transceivers break free of vendor lock-in and guarantee continued flawless interoperability and compatibility with third party vendors as below.


ADVA BarnfindInteno Synology Atto Hirschmann NetScout QSAN MilanSAGEM Palo Alto Networks Allnet Cyberroam RAD Lanner Coriant SolarflareGnoda TP Link Long haul Amer Networks Transition Networks Gigamon MRVUbiquiti CTC UnionIMC Networks
DeltaSource PhotonicsD-LinkRuijieEricssonASGAN-TRONBlackmagicNetonixMcAfeeAgilent-AvagoOmnitronFujitsuEmulexRaiscomAerohive SR2148PDCNFibroLANJDS UniphaseOpnextScientific AtlantaTellabsOptoneSpeedntSUN Fortigate




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.
