Customized 40GBASE-SR Bi-Directional Duplex LC Transceiver for MMF

Customized 40GBASE-SR Bi-Directional Duplex LC Transceiver for MMF

View full details

Part Number: QSFP-BD-40G

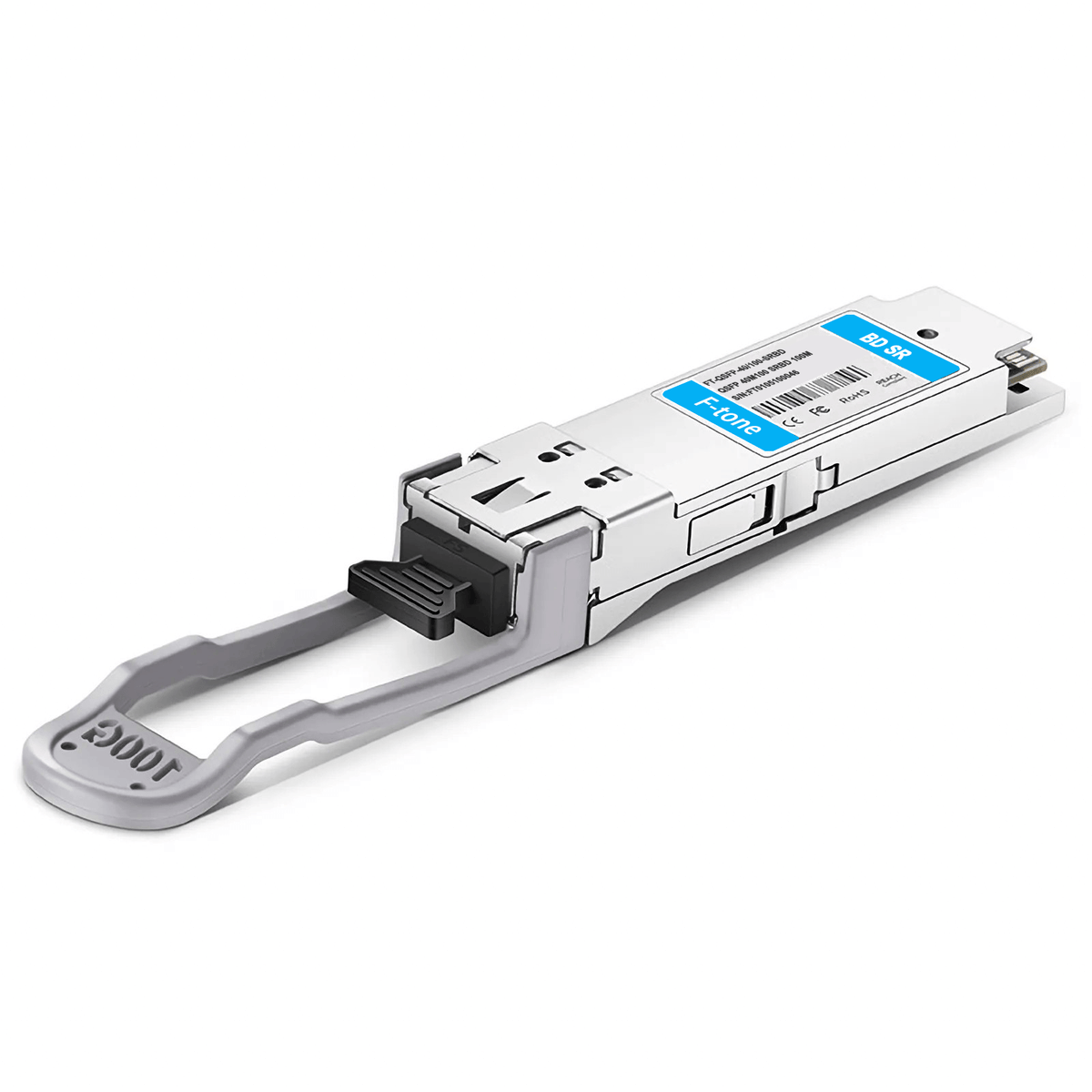

Cisco QSFP-40G-SR-BD Compatible 40GBASE-SR-BiDi QSFP+ Optical Transceiver Module for Ethernet and Data Center (MMF, 832nm - 918nm, 150m, LC)


The Cisco QSFP-40G-SR-BD compatible QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 150m over OM4 multimode fiber (MMF) using a wavelength of 832nm to 918nm via an LC connector. It provides high-density and low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications. It is fully compliant with the QSFP+ MSA, IEEE 802.3ba-2010 40GBASE-ER4.
Product Specifications
Cisco Compatible QSFP-40G-SR-BD Vendor Name F-tone
Form Factor QSFP+ Max Data Rate 40Gbps
Wavelength 832nm - 918nm Max Cable Distance 150m@OM4/100m@OM3/30m@OM2
Connector LC duplex Media MMF
Transimitter Type VCSEL 850/900nm Receiver Type PIN
DDM/DOM N/A Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -4~5dBm Receiver Sensitivity <-6dBm
Power Consumption 3.5W Extinction Ratio 3.5dB
Modulation Format NRZ CDR None
Transmit and Dispersion Penalty 4dB Powerbudget 6dB
Packaging Technology COB (chip on board) Packaging FEC Function Supported
Protocols 40G Ethernet, IEEE802.3ba-2010, MSA Compliant Application 40 Gigabit Ethernet interconnects, Data Center

Datasheet

Part Number Distance Fibers Port
QSFP-SR4-40GFM 150m MMF MTP/MPO
QSFP-40G85-1MFM 150m/2km SMF/MMF LC
QSFP-40G-LR4-2FM 2km SMF LC
QSFP-40G-PLR4-2FM 2km SMF MTP/MPO
QSFP-LR4-40GFM 10km SMF LC
QSFP-PLR4-40GFM 10km SMF MTP/MPO
QSFP-ER4-40GFM 40km SMF LC

Quality Testing Program


Take a look at our optics test program and see what truly sets us apart.

Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
