Part Number: QSFP-DD-200G-LR4-FM

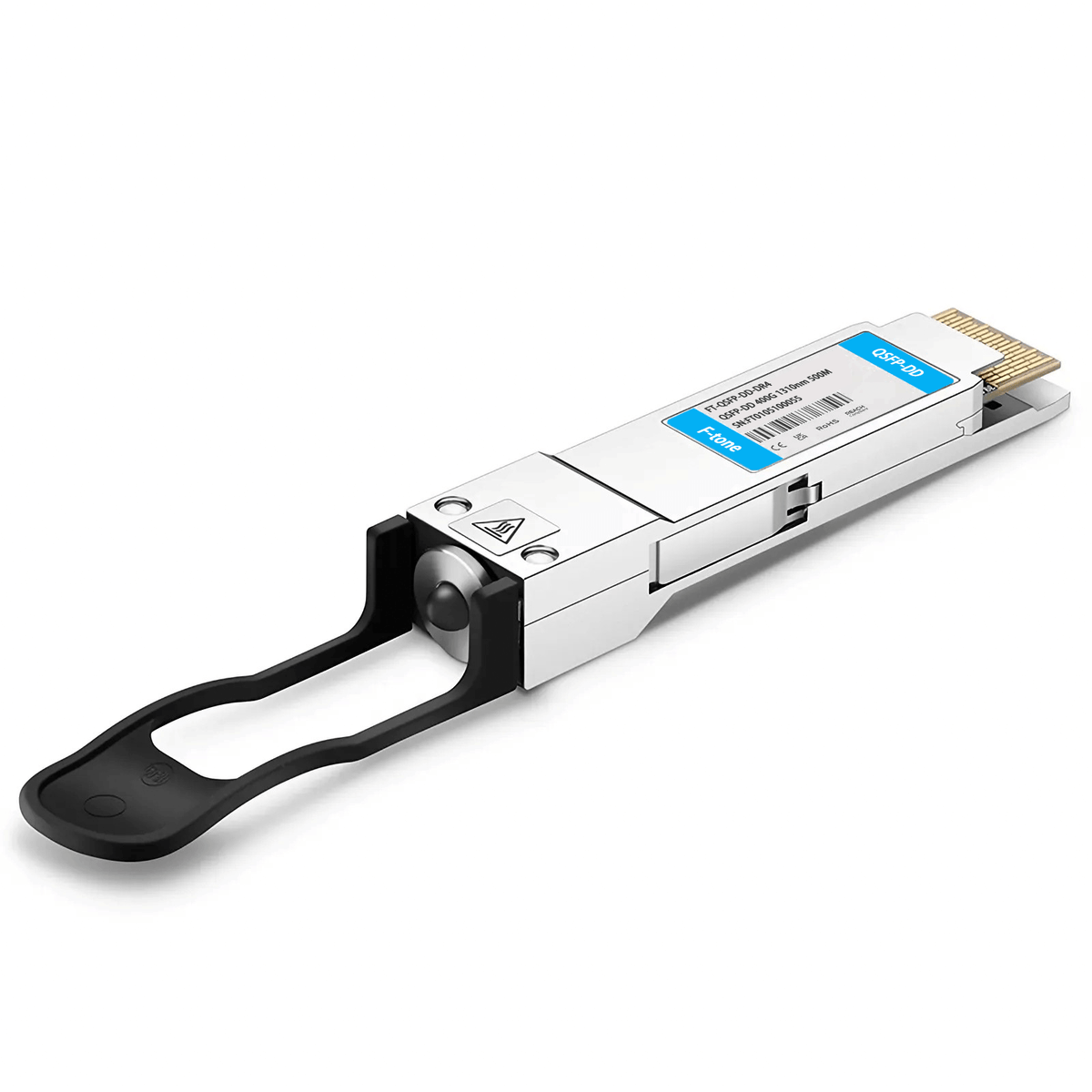

200G QSFP-DD LR4 PAM4 LWDM4 Lanes MUX/DEMUX Design 10km Optical Transceiver Module (1295.56nm 1300.05nm 1304.58nm 1309.14nm LC SMF 10km with FEC DDM)
This product supports link lengths of up to 40 kilometers over SMF (single-mode fiber) using a duplex LC connector for 200Gb/s (PMA4) optical transmission. It is compliant with QSFP-DD MSA and IEEE 802.3bs, whic is for 5G Network, 200G Ethernet, Enterprise Networking application.
Product Details
| F-tone Part Number | QSFP-DD-200G-LR4 | Vendor Name | F-tone |
|---|---|---|---|
| Form Factor | QSFP-DD | Max Data Rate | 212.5Gbps |
| Wavelength | 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm | Max Distance | 10km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Duplex LC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | EML LWDM4 | Receiver Type | PIN |
| TX Power | -3.4~+5.3dBm | Receiver Sensitivity | < -7.7dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 10.8W |
| Protocols | QSFP-DD MSA, IEEE 802.3bs | Application | 200G Ethernet, Data Center Interconnect |
Quality Assurance
Excellent quality is the foundation of F-tone's survival and development. Our operation team is an expert with many years of experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
