Part Number: QSFP28-BLR4-100GFM

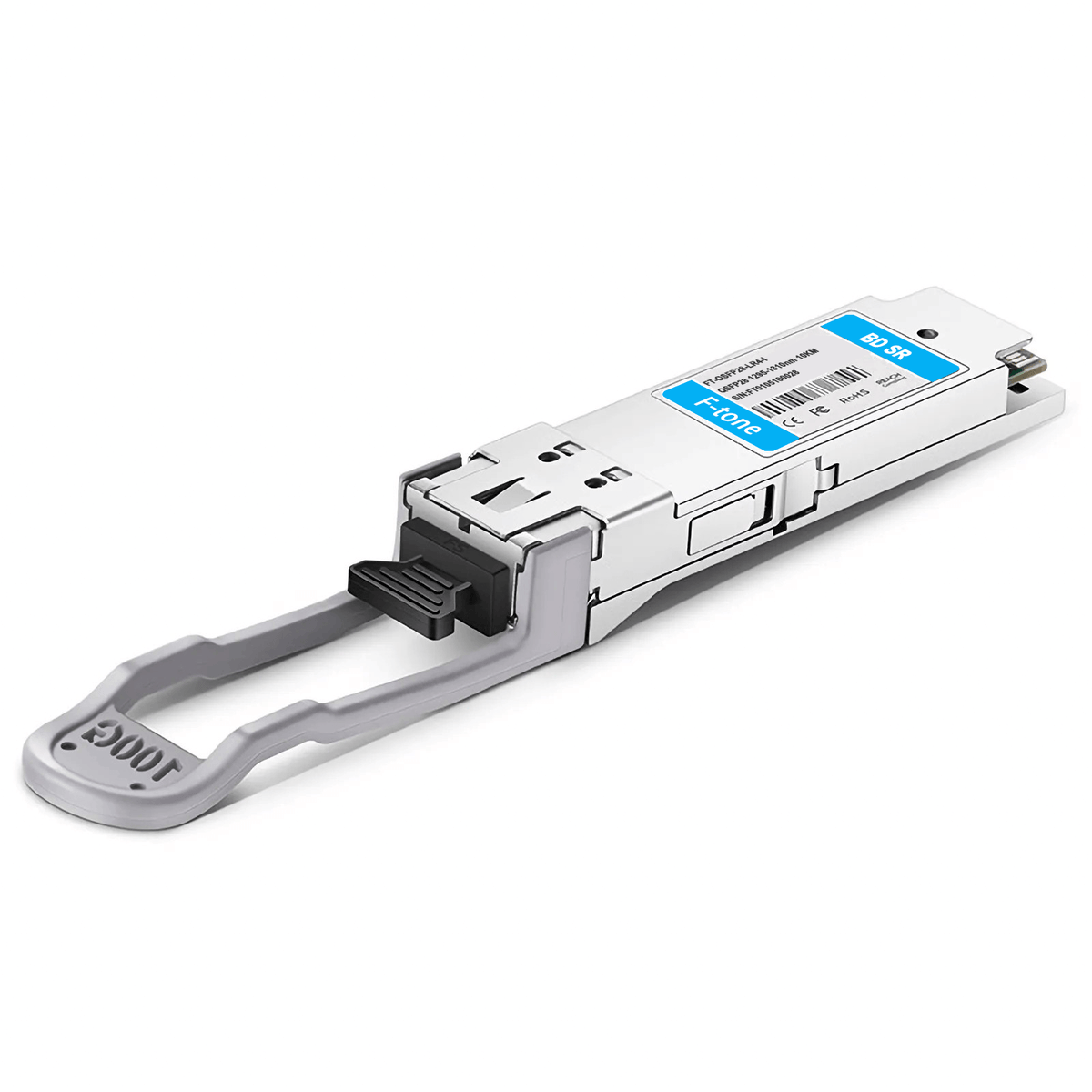

Generic Compatible 100GBASE-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
The QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.
Spotlights
- BOX Packaging, DFB+PIN, Built-in Dual CDR
- ≤3.5W Low Power Consumption
- Fully Compatible with 200+ Vendors
- For Data Center and Telecom Applications
- Hot Pluggable QSFP28 MSA Compliant
Description
| Part Number | QSFP28-BLR4-100G | Vendor Name | F-tone |
|---|---|---|---|
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps (4x 25.78Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | LC Duplex | Cable Type | SMF |
| Transmitter Type | 4 x LAN WDM DML (DFB) | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -4.3~4.5dBm | Receiver Sensitivity | <-10.6dBm |
| Powerbudget | 6.3dB | Receiver Overload | 4.5dBm |
| Power Consumption | ≤3.5W | Extinction Ratio | >4dB |
| Modulation Format | NRZ | CDR (Clock and Data Recovery) | TX & RX Built-in CDR |
| Packaging Technology | BOX Packaging | Host FEC | Supported |
| EMC (Electro Magnetic Compatibility) | Supported | Bit Error Ratio (BER) | 1E-12 (without FEC) |
| Protocols | IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 | MTBF | 5,000,000 Hours |
| Application | Telecom, Data Center, 100G Ethernet, 5G Wireless Network | Warranty | 5 Years |
