100GBASE-LR QSFP28 Single Lambda 1310nm 10km DOM LC SMF Fiber Transceiver

100GBASE-LR QSFP28 Single Lambda 1310nm 10km DOM LC SMF Fiber Transceiver

View full details

Part Number: QSFP28-LR-100G-FM

100GBASE-LR Single Lambda QSFP28 PAM4 Optical Transceiver Module (Single Lambda, SMF, 1310nm, 10km, LC, DOM)

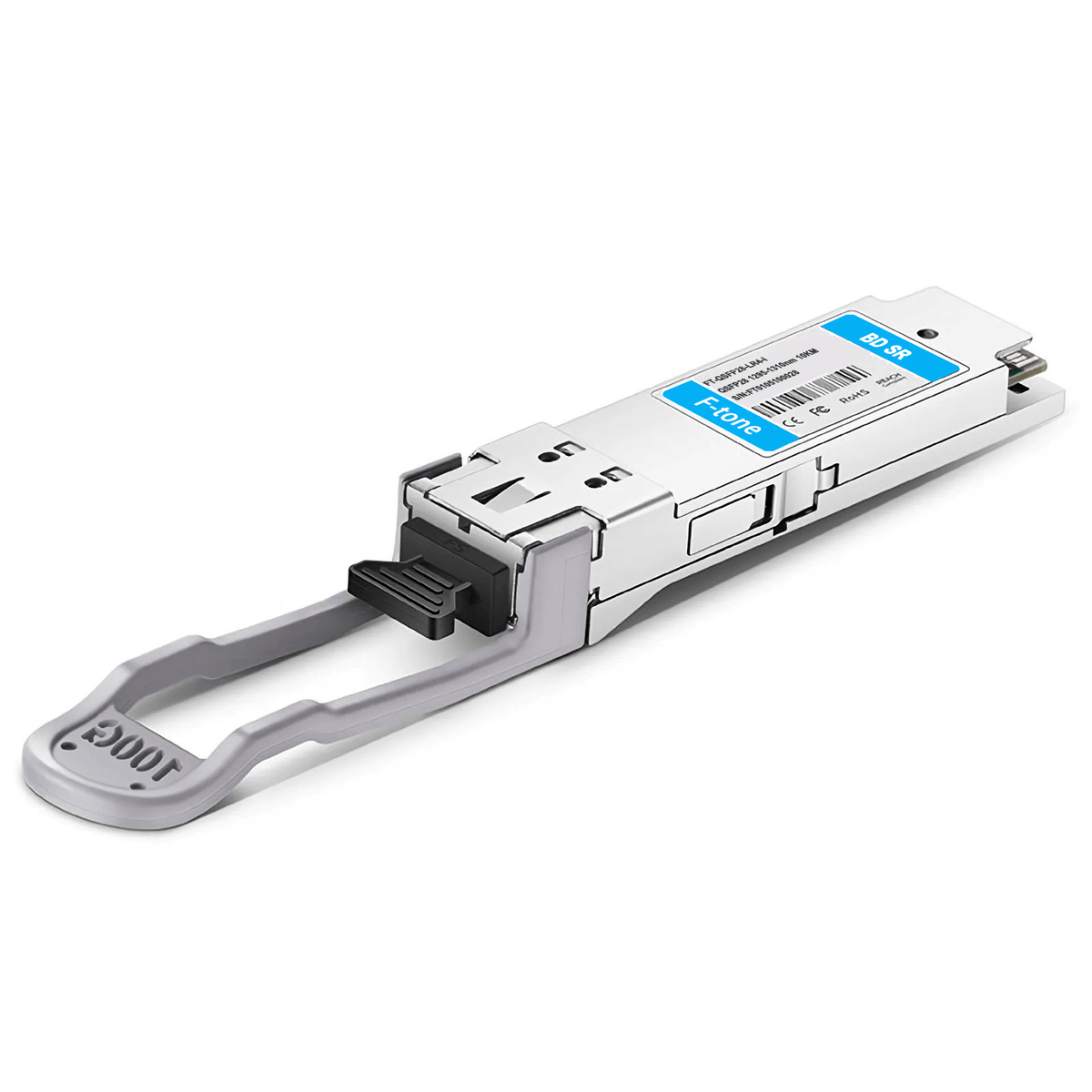

The 100GBASE-LR Single Lambda QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. The transceiver includes a gearbox chip to convert the 4x25G NRZ electrical signals to a 1x100G PAM-4 optical signal. This transceiver is compliant with QSFP28 MSA, IEEE 802.3cd and 100G Lambda MSA standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as Data Center, 100G Ethernet, 400G to 100G breakout applications.

Spotlights

  • Single Lambda, EML+PIN, Built-in Dual CDR
  • ≤4.5W Low Power Consumption
  • Fully Compatible with 200+ Vendors
  • For Data Center, 100G Ethernet, 400G to 100G Breakout Applications
  • Hot Pluggable QSFP28 MSA Compliant

Description

Part Number QSFP28-LR-100G Vendor Name F-tone
Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
Wavelength 1310nm Max Cable Distance 10km
Connector LC Duplex Cable Type SMF
Transmitter Type EML Receiver Type PIN
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -1.4~4.5dBm Receiver Sensitivity <-7.7dBm
Powerbudget 6.3dB Receiver Overload 4.5dBm
Power Consumption ≤4.5W Extinction Ratio >3.5dB
Modulation Format PAM4 CDR (Clock and Data Recovery) TX & RX Built-in CDR
Packaging Technology COB (Chip on Board) Packaging Host FEC Supported
EMC (Electro Magnetic Compatibility) Supported Bit Error Ratio (BER) 2.4x10-4
TDECQ (Transmitter and Dispersion Eye Closure Quaternary) 3.4dB Protocols 100G Lambda MSA 100G-LR Specification compliant
Application 100GBASE Ethernet, Data Center Warranty 5 Years
