Part Number: QSFP28-LR4-100GFM

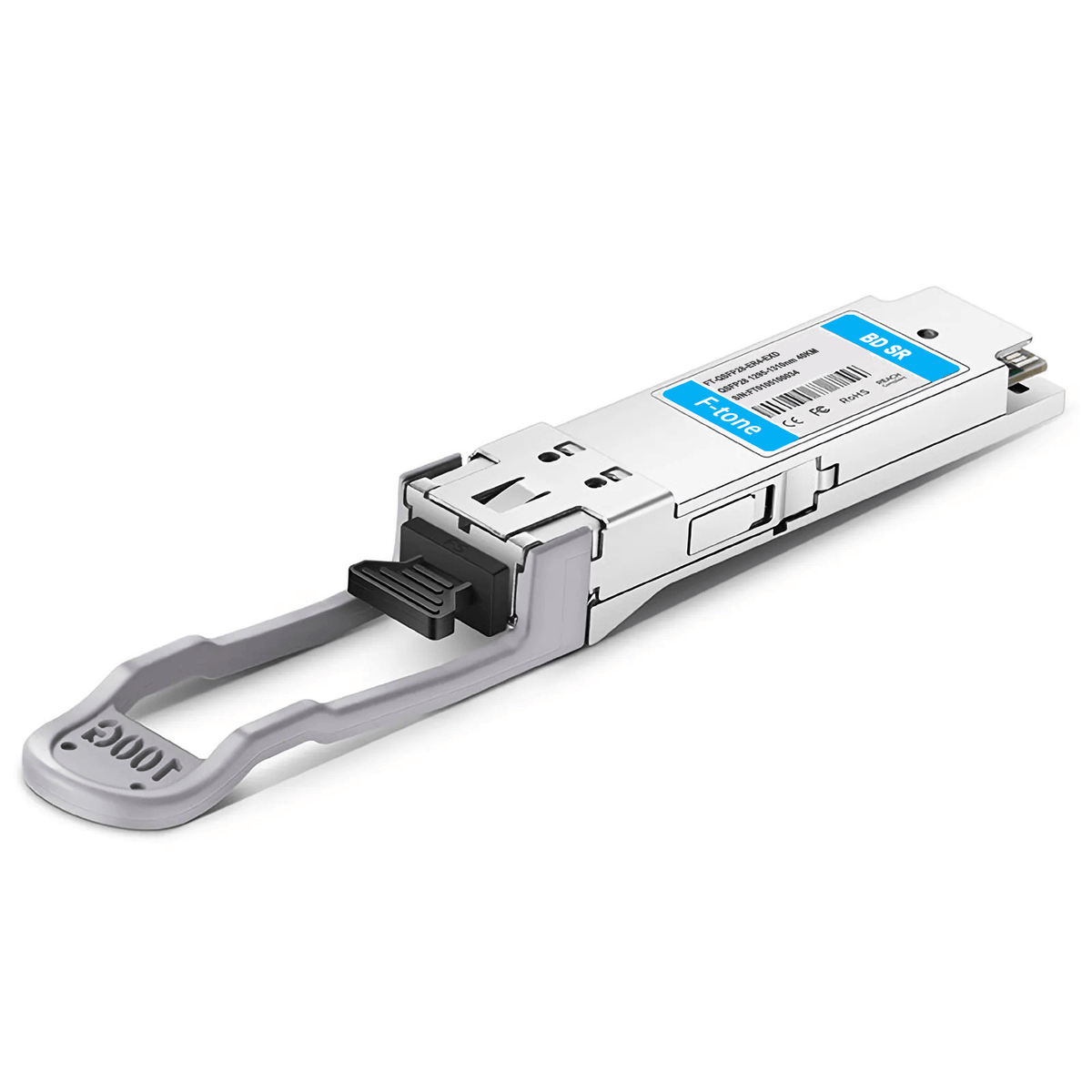

Cisco QSFP-100G-LR4-D Compatible 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate Optical Transceiver Module for Telecom (SMF, 1310nm, 10km, LC, DOM)
| Cisco Compatible | QSFP-100G-LR4-D | Vendor Name | F-tone |
|---|---|---|---|
| Form Factor | QSFP28 | Data Rate | Dual Rate 103.1Gbps and 112Gbps |
| Wavelength | 1310nm* | Max Cable Distance | 10km@SMF |
| Connector | LC duplex | Media | SMF |
| Transmitter Type | 4 x LAN WDM DML TOSA | Receiver Type | 4 x PIN ROSA |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power(100G) | -4.3~4.5dBm | Receiver Sensitivity(100G) | <-8.6dBm |
| TX Power(112G) | -0.6~4dBm | Receiver Sensitivity(112G) | <-8.4dBm |
| Power Consumption | 3.5W | Extinction Ratio | 4dB |
| Modulation Format | NRZ | CDR | TX and RX |
| Transmit and Dispersion Penalty | 2.2dB | Powerbudget | 6.3dB |
| Packaging Technology | BOX Packaging | FEC Function** | Supported |
| Protocols | 100G Ethernet, 25G Ethernet, OTN OTU4 4I1-9D1F | Application | 100GBASE Ethernet, Telecom, 5G Network Mid/Backhaul |
Please Note:
* 1310nm wavelength range include L0 1295.56nm(1294.53-1296.59nm), L1 1300.05nm(1299.02-1301.09nm), L2 1304.58nm(1303.54-1305.63nm), L3 1309.14nm(1308.09-1310.09nm)
** It does not employ the use of FEC, complied with the IEEE 100GBASE-LR4 specification.
