Part Number: QSFPDD-800G-PC50CM-FM

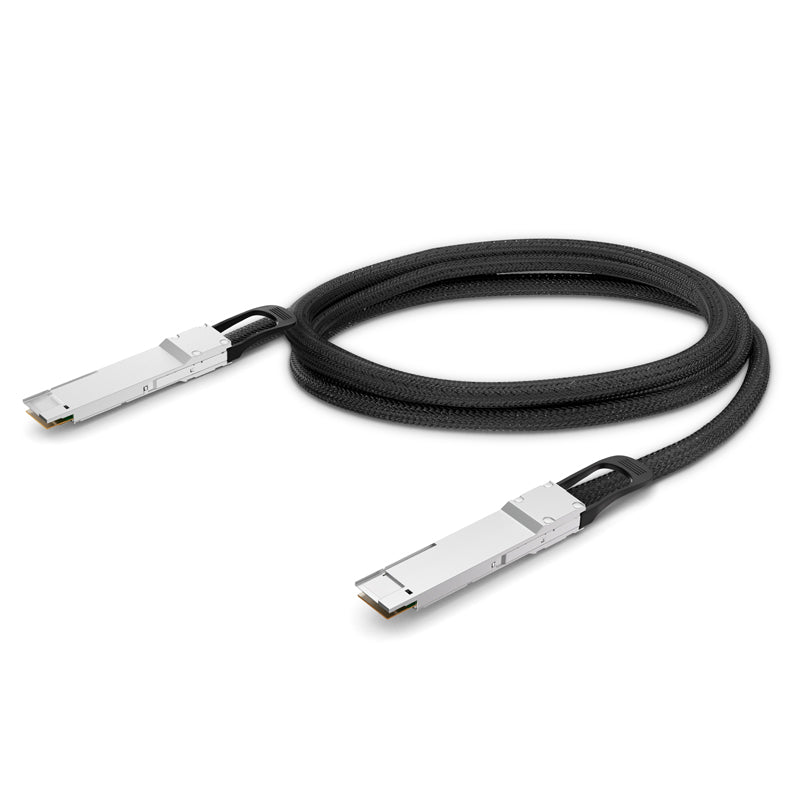

800G QSFP-DD DAC (QSFP-DD to QSFP-DD QSFP-DD800 PAM4 Direct Attach Cable 26AWG 0.5-meter)
F-tone 800G Passive Direct Attach Copper Cable is compliant with the QSFP-DD-MSA and IEEE802.3ck, it’s high-performance & cost-effective I/O solutions for LAN, HPC, and SAN. The high-speed cable assemblies meet and exceed 800G Ethernet, InfiniBand EDR /HDR, and temperature requirements for performance and reliability.
Product Details
| F-tone P/N | QSFPDD-800G-PC50CM | Vendor Name | F-tone |
|---|---|---|---|
| Connector | QSFP-DD to QSFP-DD | Max Data Rate | 800Gb/s |
| Wire Gages | AWG 26 | Cable Length | 50cm (1.6ft) |
| Jacket Material | PVC (OFNR) | Minimum Bend Radius | 55mm |
| Operation Temperature | 0~ 70 ～C (32 to 158～F) | Modulation Format | PAM4 |
| Protocols | IEEE 802.3bj and IEEE 802.3cd | Application | 800G Ethernet and InfiniBand EDR |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
