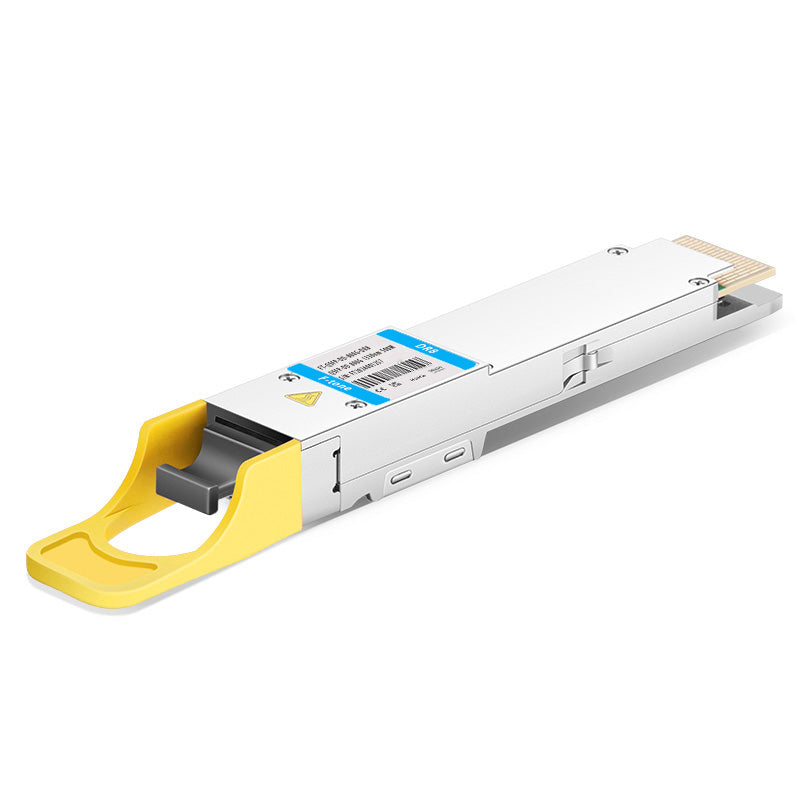

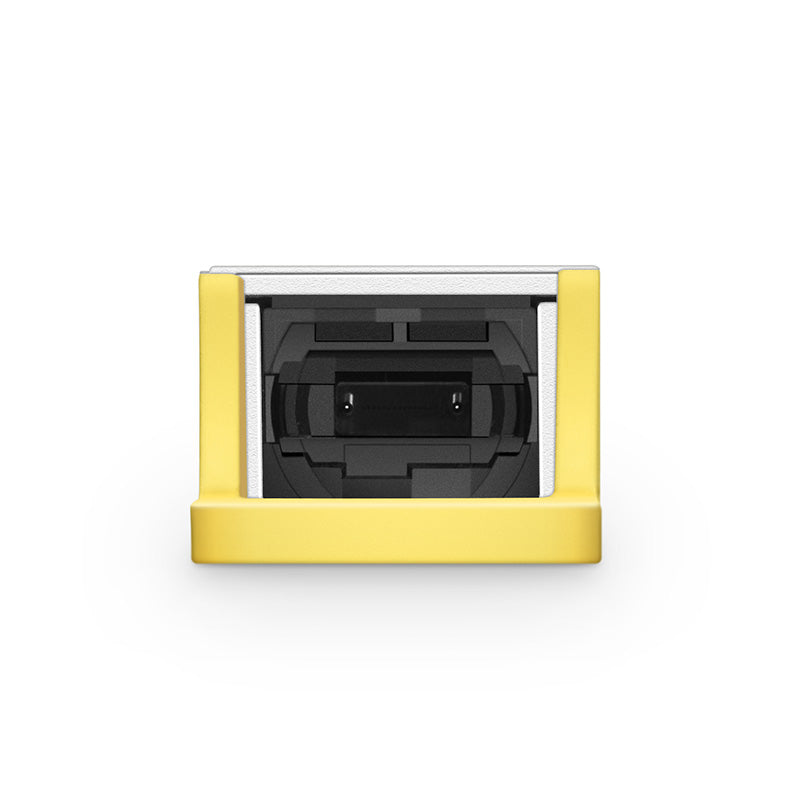

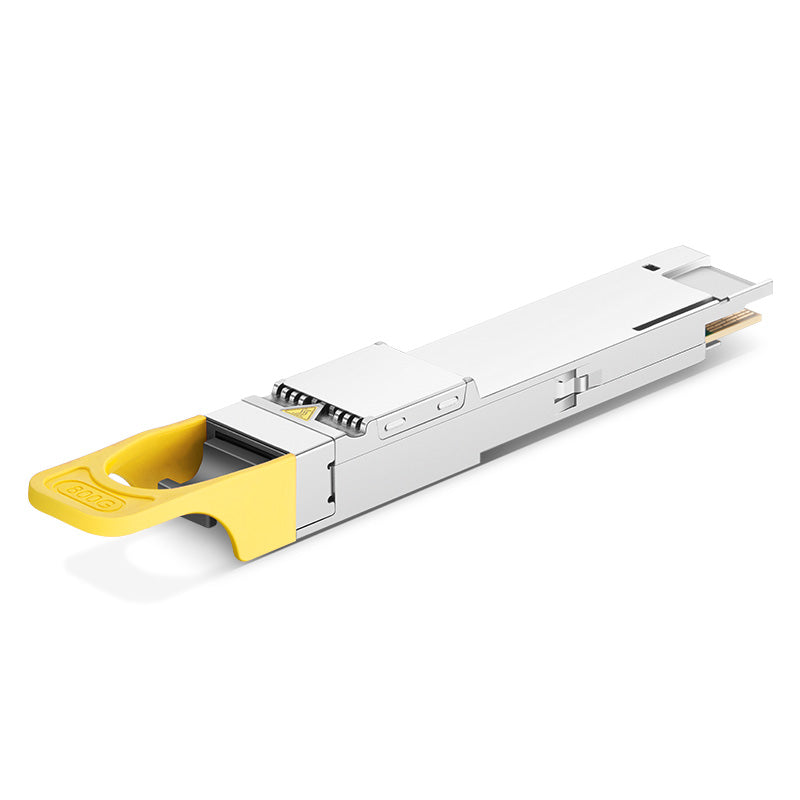

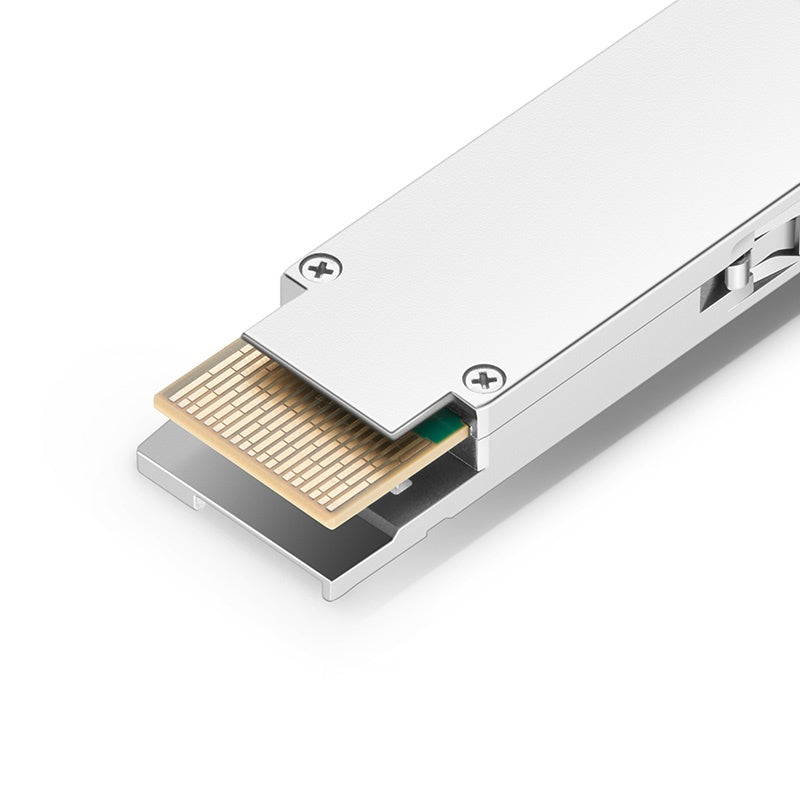

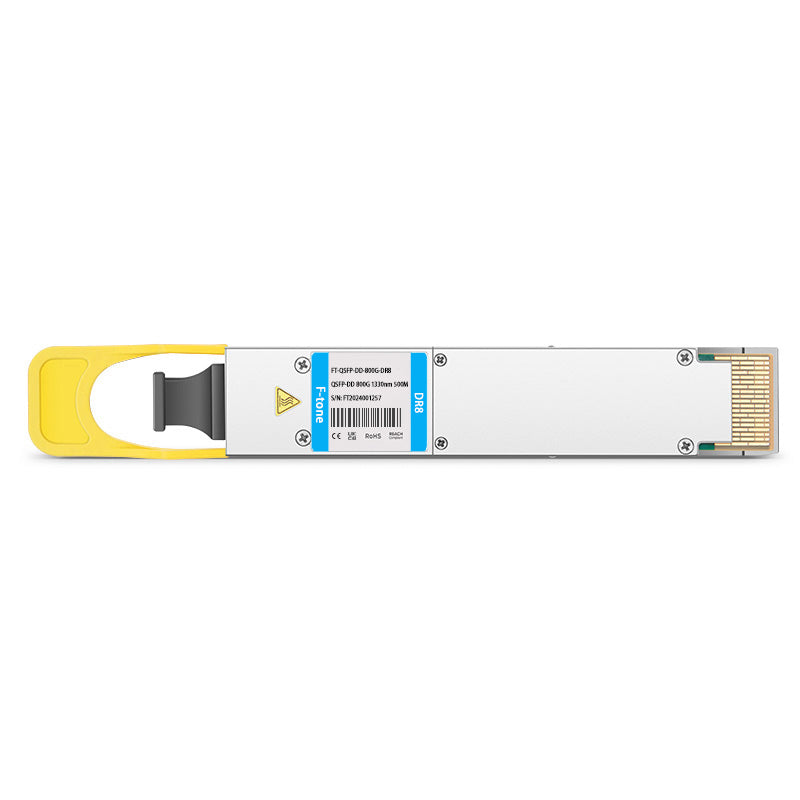

The 800GBASE-DR8 QSFP-DD Optical Transceiver Module is designed for 800GBASE Ethernet throughput up to 500m over singlemode fiber (SMF) with MPO-16 connectors. This transceiver is compliant with IEEE P802.3ck, IEEE 802.3cu, QSFP-DD MSA. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 800G Ethernet, Data Center, Breakout 2x 400G DR4 or 8x 100G DR application.
| Part Number | QSFPDD-DR8-800G | Vendor Name | F-tone |
|---|---|---|---|
| Form Factor | QSFP-DD | Max Data Rate | 850Gbps |
| Wavelength | 1310nm | Max Cable Distance | 500m |
| Connector | MTP/MPO-16 | Media | SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| Electric Signal | 8x100G | Optical Signal | 8x100G |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -2.9~4dBm | Receiver Sensitivity | <-7.9dBm |
| Power Consumption | <16.5W | Extinction Ratio | 3.5dB |
| Modulation Format | PAM4 | DSP | TX and RX |
| Transmitter and Dispersion Eye Closure Quaternary | 4.5dB | Powerbudget | 1.9dB |
| Packaging Technology | COB (chip on board) Packaging | FEC Function* | Not Supported |
| Protocols | IEEE 802.3cu, IEEE P802.3ck, QSFP-DD MSA HW Rev 6.01, CMIS5.0 | Application | 800GBASE Data Center |
Please Note:
* FEC in host is required to be turned on to increase the reliability of transmission.
* FEC in host is required to be turned on to increase the reliability of transmission.
