Part Number: QSFPDD-FR4-400GFM

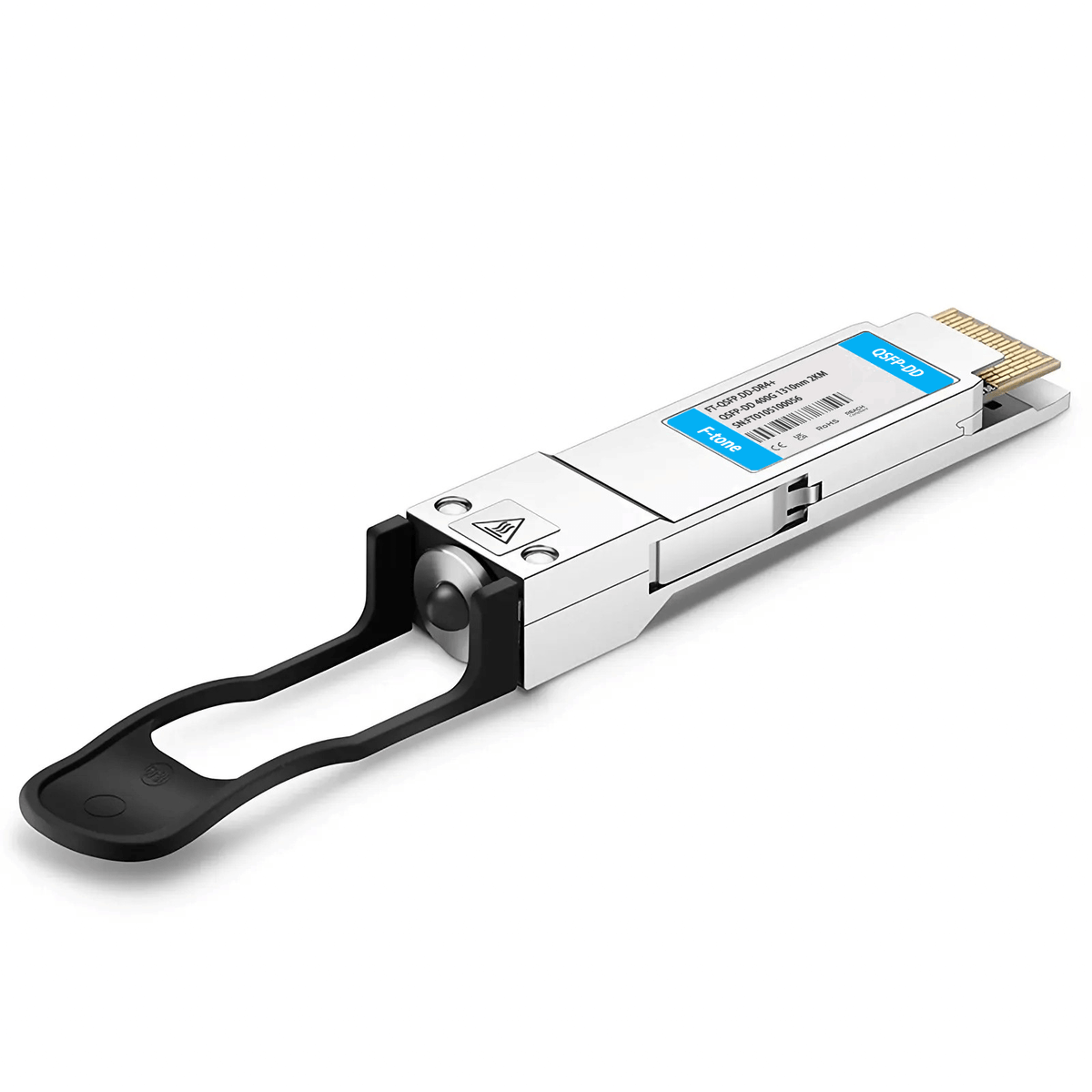

Cisco QDD-400G-FR4-S Compatible 400GBASE-FR4 QSFP-DD PAM4 1310nm 2km DOM Optical Transceiver Module (SMF, 1310nm, 2km, LC, DOM)
The 400GBASE-FR4 module supports link lengths of up to 2km SMF with duplex LC connector. It is compliant to IEEE 802.3bs, 400GBASE-FR4 Spec of 100G Lambda MSA group, and 400GAUI-8/CEI-56G-VSR-PAM4 standards. The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.
| Cisco Compatible | QDD-400G-FR4-S | Vendor Name | F-tone |
|---|---|---|---|
| Form Factor | QSFP-DD | Max Data Rate | 400Gbps |
| Wavelength | 1310nm | Max Cable Distance | 2km |
| Connector | LC Duplex | Media | SMF |
| Transmitter Type | EML CWDM4 | Receiver Type | PIN |
| Electric Signal | 8x50G | Optical Signal | 4x100G |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -3.3~3.5dBm | Receiver Sensitivity | <-7.3dBm |
| Power Consumption | <12W | Extinction Ratio | 3.5dB |
| Modulation Format | PAM4 | DSP | TX and RX |
| Transmitter and Dispersion Eye Closure Quaternary | 3.4dB | Powerbudget | 4dB |
| Packaging Technology | COB (chip on board) Packaging | FEC Function* | Not Supported |
| Protocols | QSFP-DD MSA Compliant | Application | 400GBASE Data Center |
* FEC in host is required to be turned on to increase the reliability of transmission.
