Part Number: QSFPDD-LR8-400GFM

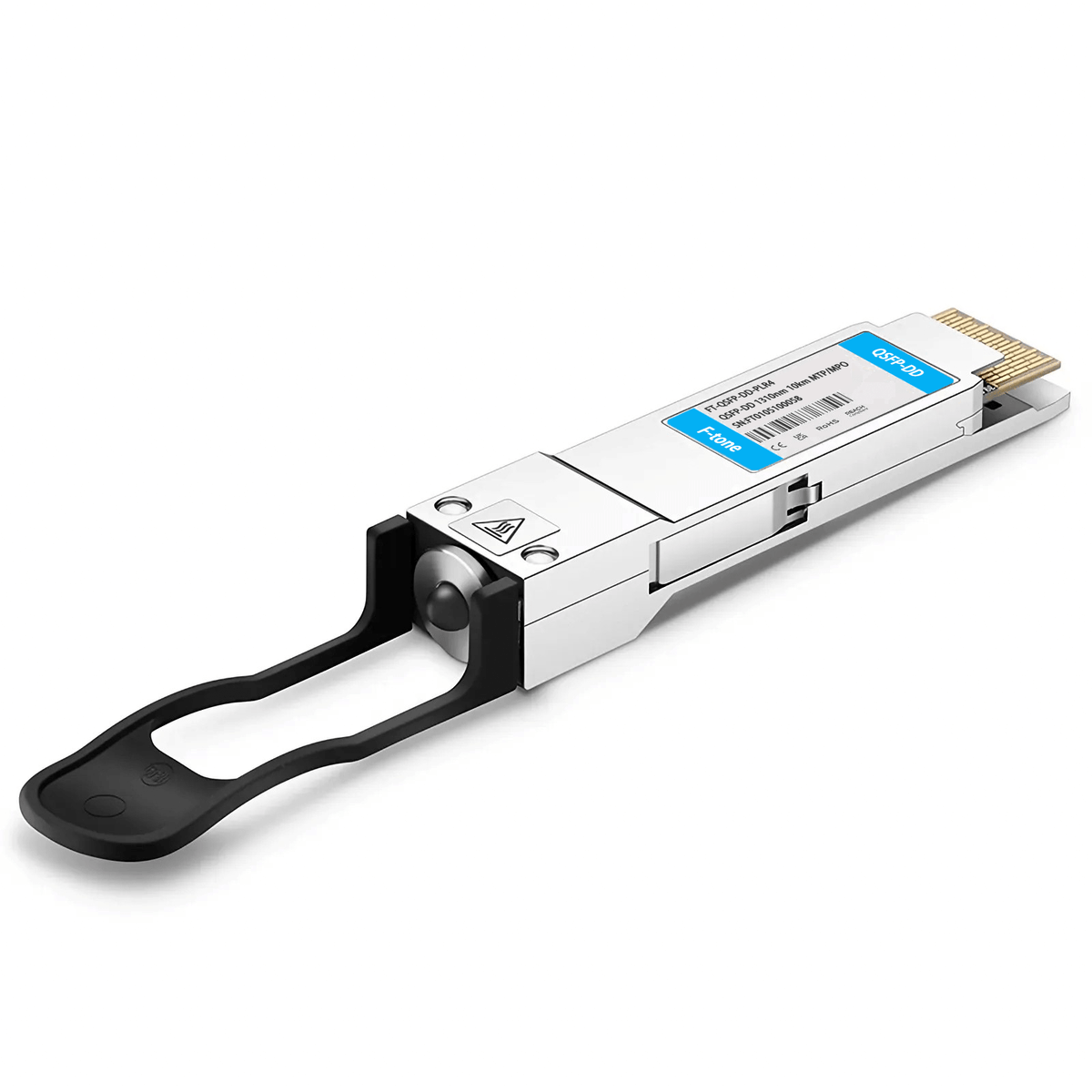

Generic Compatible 400GBASE-LR8 QSFP-DD PAM4 1310nm 10km DOM Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
The 400GBASE-LR8 module supports link lengths of up to 10km over a standard pair of G.652 single mode fiber (SMF) with duplex LC connectors. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device.
| Part Number | QSFPDD-LR8-400G | Vendor Name | F-tone |
|---|---|---|---|
| Form Factor | QSFP-DD | Max Data Rate | 425Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | LC Duplex | Media | SMF |
| Transmitter Type | EML CWDM4 | Receiver Type | PIN |
| Electric Signal | 8x50G | Optical Signal | 8x50G |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -2.8~5.3dBm | Receiver Sensitivity | <-9.1dBm |
| Power Consumption | <14W | Extinction Ratio | 3.5dB |
| Modulation Format | PAM4 | DSP | TX and RX |
| Transmitter and Dispersion Eye Closure Quaternary | 3.3dB | Powerbudget | 6.3dB |
| Packaging Technology | BOX Packaging | FEC Function* | Not Supported |
| Protocols | QSFP-DD MSA Compliant | Application | 400GBASE Data Center |
Please Note:
* FEC in host is required to be turned on to increase the reliability of transmission.
Product Tree
Direct Connection for 400GBASE-LR8 QSFP-DD Transceivers
Quality Testing Program
Quality Certifications
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
