Part Number: S326

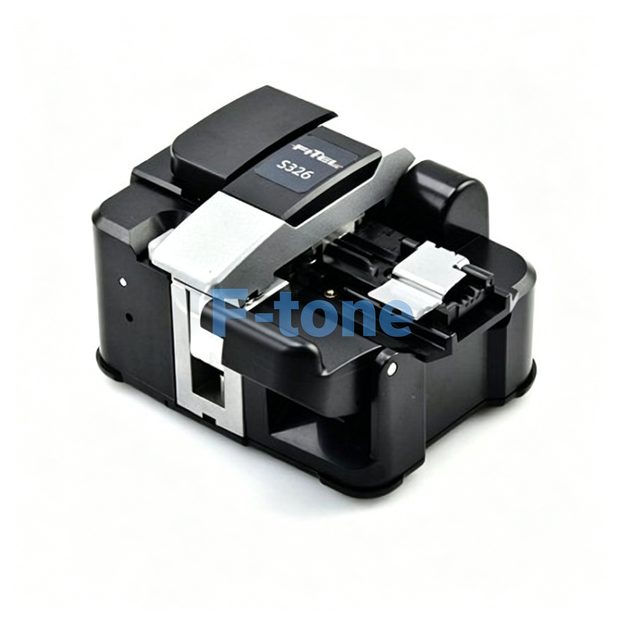

Furukawa S326 Hand-held High Precision Cleaver
Features
One-step action
Cleave anywhere- in your palm or on your desktop
Easy fiber loading
Simple operation
High capacity waste fiber collection
Durable design
Easy Maintenance on-site
| SPECIFICATIONS | |
| Fiber types | All fiber types, single to 12-fiber ribbons |
| Clad Diameter | 0.125mm |
| Coating Diameter | 0.25mm and 0.9mm for single fiber; 0.3mm to 0.4mm thickness for ribbons |
| Cleave length | Single fiber: Fixed length-10 & 16mm Variable length – 3 to 20mm Ribbon fiber: 10mm Fixed length |
| Dimensions/Weight | 93W x 68D x 52H (mm); 330g |
| Standard Package | ||
| Model | Item | Qty |
| S326 | Main body | 1 |
| Soft carrying case | 1 | |
| Operation manual | 1 |
Fiber optic cleaver is used to cut the fiberglass to make a good end face, and it is very important in the fiber splicing process, it works together with the fusion splicer to meet the end needs. F-tone supply all kinds of high precision fiber cleaver, if you need this Furukawa S326 Hand-held High Precision Cleaver at a large quantity, welcome to contact us, we will provide you a special discount.
| SPECIFICATIONS | |
| Fiber types | All fiber types, single to 12-fiber ribbons |
| Clad Diameter | 0.125mm |
| Coating Diameter | 0.25mm and 0.9mm for single fiber; 0.3mm to 0.4mm thickness for ribbons |
| Cleave length | Single fiber: Fixed length-10 & 16mmVariable length – 3 to 20mmRibbon fiber: 10mm Fixed length |
| Dimensions/Weight | 93W x 68D x 52H (mm); 330g |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
