Part Number: S3800-24T4S-FT-S
24x 100/1000Base-T with 4x 10GB SFP+ Network Switch S3800-24T4S
S3800-24T4S high performance Metro Ethernet switch is designed to meet the demand of cost-effective Gigabit access or aggregation for enterprise networks and operators. High performance and low power processor, 10Gbps wired speeds, physical stacking technology and diverse management features. It supports up to 4 switches stack for network simplification, and up 96 Gigabit ports and 8 10G SFP+ ports per physical stack, providing up to 512Gbps total switching capacity for the network.
S3800-24T4S supports multiple configuration modes to make it easy for network management and maintenance. It offers flexible port combination form to facilitate user operations so that you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch. The switch comes with a four-year limited warranty, including any quality problems during the free maintenance.
Product Details
| Switch Ports | 24x 100/1000Base-T, 4x 10GB SFP+ Ports | Switch Chip | BCM53346 |
|---|---|---|---|
| SDRAM Memory | 512MB | Switching Capacity | 128Gbps |
| Flash Memory | 16MB | Forwarding Rate | 95Mpps |
| Jumbo Frames | 12K | VLANs | 4K |
| Power Consumption (Full-loaded) | ≤40W | MAC Address Table | 16K |
| Power Supply | 100-240VAC, 50/60Hz | Warranty | 4 Years |
Quality Certification
Quality and standards are the foundation of F-tone.COM. We are dedicated to providing customers with the outstanding, standards-compliant products and services.F-tone.COM has passed many quality system verification, like ISO9001, CE, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
- This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
- This product was produced under the requirements of CE to indicate conformity with the essential health and safety. Please contact us to learn more.
- This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
Product Highlights
How to stack S3800-24T4S Switch
Carrier-class Equipment Stability and Network Resilience
Adopt NGBN independent intellectual property rights operating system Support VRRP/GARP/MSTP/smart link
Perfect Security Mechanism
Use the hardware-based packet-by-packet forwarding mechanism, the feature packets are effectively detected and filtered Support CPU over current protection and VRRP Support DHCP snooping /IPv4 & IPv6 source Guard/802.1X Support BFD, FlexLink, dynamic link aggregation, and Ethernet ring
Rich Business Characteristics
Support DHCP Server and DHCP Relay Support L2 - Tunneling transparent encapsulation network edge service protocol Support Ethernet OAM
Strong QoS Capability
Support two-speed tri-colorcontrolled traffic management policies Support CAR to achieve precise rate limits based on ports and streams Support various traffic classification and QoS flow control to guarantee the transmission of high priority packets Support SP / WRR and other priority algorithms to protect the transmission of multimedia services
Supported Optical Transceivers and Cables
1G SFP, 1G BIDI SFP, 1G CWDM SFP, 1G DWDM SFP, 1GBASE-T 10G SFP+, 10G BIDI SFP+, 10G CWDM SFP+, 10G DWDM SFP+, 10GBASE-T 10G DAC, 10G AOC
High Performance Switch for Enterprise Networks
Build and expand network with flexible port combination form.
Provide high bandwidth aggregation connectivity for multiple switches in network to enhance network capacity.

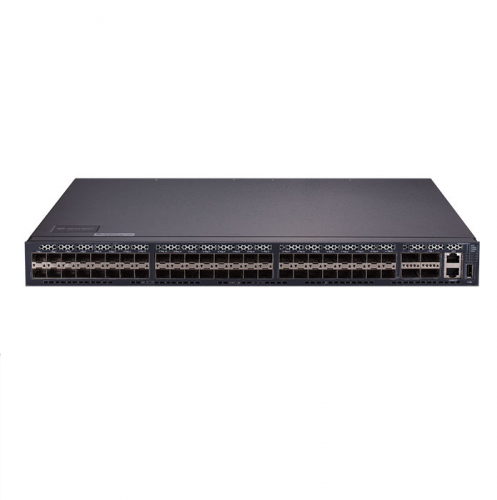

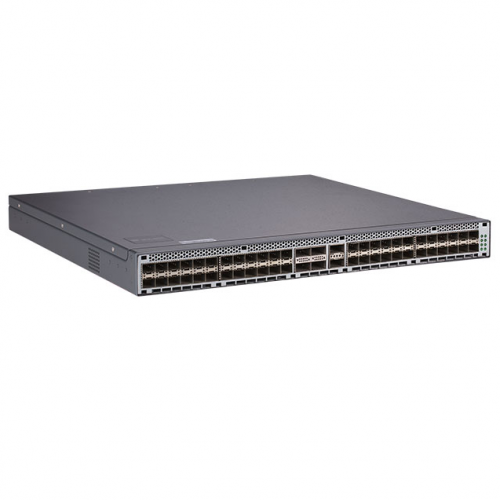

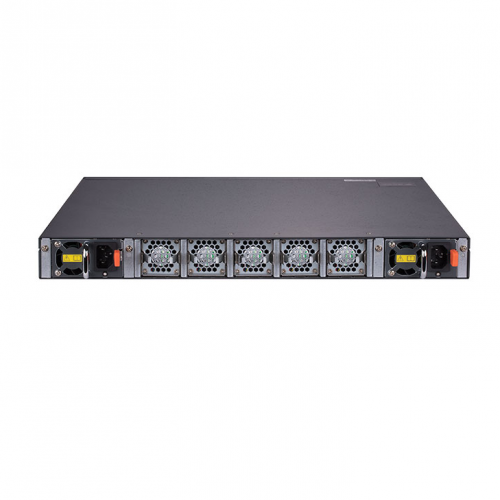

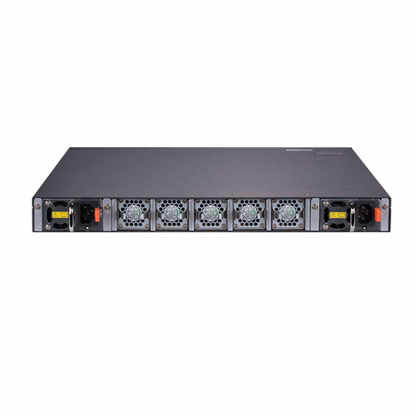

Front and Rear Panel Overview
Flexible Access Switches for Converged Enterprise Networks
Port Indicators and System Status Indicators
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
