Part Number: S5800-8TF12S-FM

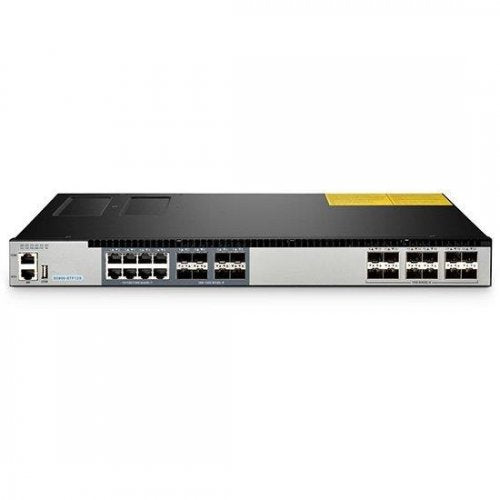

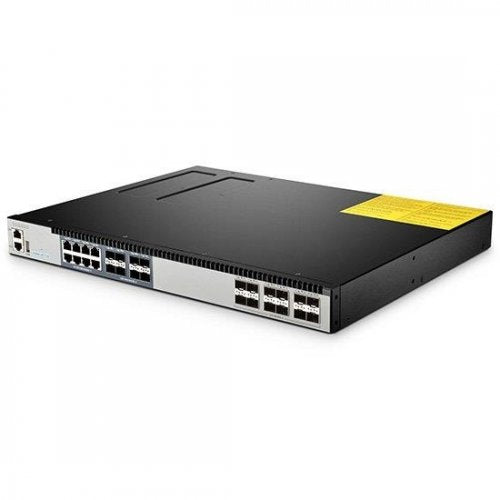

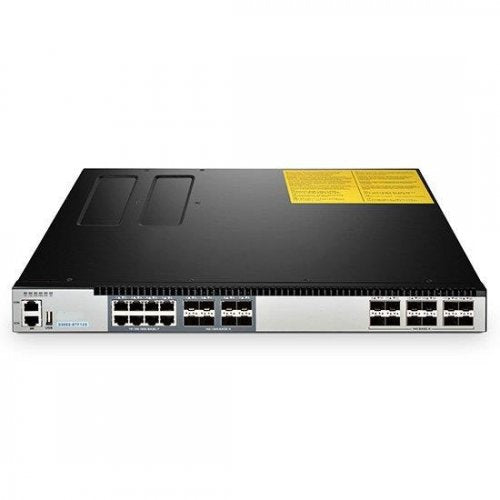

S5800-8TF12S 12-Port 10Gb SFP+ L2/L3 Switch with 8 Gigabit RJ45/SFP Combo Ports for Hyper-Converged Infrastructure
The S5800-8TF12S is a high performance Ethernet switch to meet the next generation Metro, Data Center and Enterprise network requirements. The S5800-8TF12S comes with the complete system software with comprehensive protocols and applications to facilitate the rapid service deployment and management for both traditional L2/L3/IPv6 networks. With support for advanced features, including MLAG, SFLOW, SNMP etc, this switch is ideal for traditional or fully virtualized data center.
The S5800-8TF12S which provides high availability port with 8-port 1Gb RJ45 combo and 8-port 1Gb SFP combo and 12-port 10Gb uplink in a compact 1RU form factor is cost-effective Ethernet access platform to Metro, Data Center and Enterprise application.
| Networking Interfaces | 8x 1 Gbps Combo Ports 12x 10 Gbps SFP+ Ports | Switching Capacity | 240 Gbps |
|---|---|---|---|
| CPU | Freescale PowerPC P1010 533MHz | Throughput | 178.57 Mpps |
| Jumbo frames | 9600 Bytes | Flash Storage Memory | 2GB |
| MAC Address Table | 64K | Max power consumption | 65W |
| Latency | 2.8us | Warranty | 5 Years |
High-performance 10G Switch for Hyper-converged Infrastructure
12x 10G SFP+ ports for uplink connections, 8x 1G combo ports for access networks, which is ideal for hyper-converged infrastructure. Powered by self-developed chip, S5800-8TF12S provides a low-cost, low-latency and low-power value solution for HCI.
| Item No. | ID# | Description |
|---|---|---|
| 1 | 29122 | S5850-32S2Q 32-Port 10Gb SFP+ L2/L3 Data Center Leaf Switch with 2 40G QSFP+ Uplinks |
| 2 | 69404 | S5800-8TF12S 12-Port 10Gb SFP+ L2/L3 Switch with 8 Gigabit RJ45/SFP Combo Ports for Hyper-Converged Infrastructure |
| 3 | 73997 | RS-7188 2U, 2-Socket Rack Server with Two Intel Xeon Silver 4112 for Data Base Workloads in SMB |
Product Highlights
How to Configure MLAG (Multi-Chassis Link Aggregation)
Data Center Grade Hardware Design
Specially for Hyperconverged Infrastructure, 10G SFP+ uplink ports, 1G console ports, no waste Support 2 (1+1 redundant) hot-swap Power Supplies and 4 Fans High quality electronic components Very low system power consumption
Data Center and Metro Ethernet
Support MLAG and VARP Support NVGRE Open API interfaces to achieve SDN MEF9/14 Service Compliant ITU-T G.8031, G.8032 Ethernet OAM: IEEE 802.1ag(CFM)
L2/L3 Packet Processing
STP/RSTP/MSTP(BPDU Filter/BPDU Guard/Root Guard) Partitioned STP and BPDU tunnel IEEE 802.1q VLANs and QinQ Static Link Aggregation/LACP Address Resolution Protocol (ARP) IGMP Snooping v1/v2/v3 Full IPv4 & IPv6 Routing including RIP/OSPF/BGP/ECMP Access Control List (ACL) L2-L4 classification Up to 64K MAC/8K IP LPM Flexible ingress/egress counter pools
Traffic Visibility and Trouble-shooting Oriented Design
CPU Traffic Rate Limit Integrated High Performance Smart Buffer Memory Storm Control (unicast, broadcast, multicast) IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Class of Service (CoS): 802.1p or DSCP Telnet/SSH/FTP/TFTP/Ping(Fast Ping)/TraceRoute
Supported Optical Transceivers and Cables
1G SFP, 1G BIDI SFP, 1G CWDM SFP, 1G DWDM SFP, 1GBASE-T 10G SFP+, 10G BIDI SFP+, 10G CWDM SFP+, 10G DWDM SFP+ 10GBASE-T 10G DAC 10G AOC
Powerful Enterprise DC Switch
The S5800-8TF12S offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, this switch supports up to 178.57Mpps.

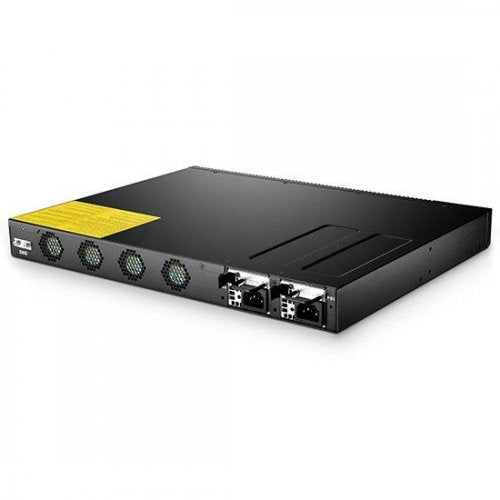

High Availability Hardware Design
S5800-8TF12S adopts hot swappable dual-power supplies and 4 redundant fans. The switch can detect faults in power supplies, and will if any such faults are found, respond with an alarm. It can automatically adjust fan speed according to the temperature.
Excellent Manageability
S5800-8TF12S makes switch management with ease with the support of SNMP/CLI/WEB and so on. With CLI and Telnet switch management is made easier. And with SSH encryption, switch management security is enhanced.
S5800-8TF12S Switch Performance Validation
S5800-8TF12S switch is valid for the IETF RFC2544 standard, which provides to evaluate the performance of network devices. The throughput test determines how well suited a device is to applications in which minimal frame loss is critical.

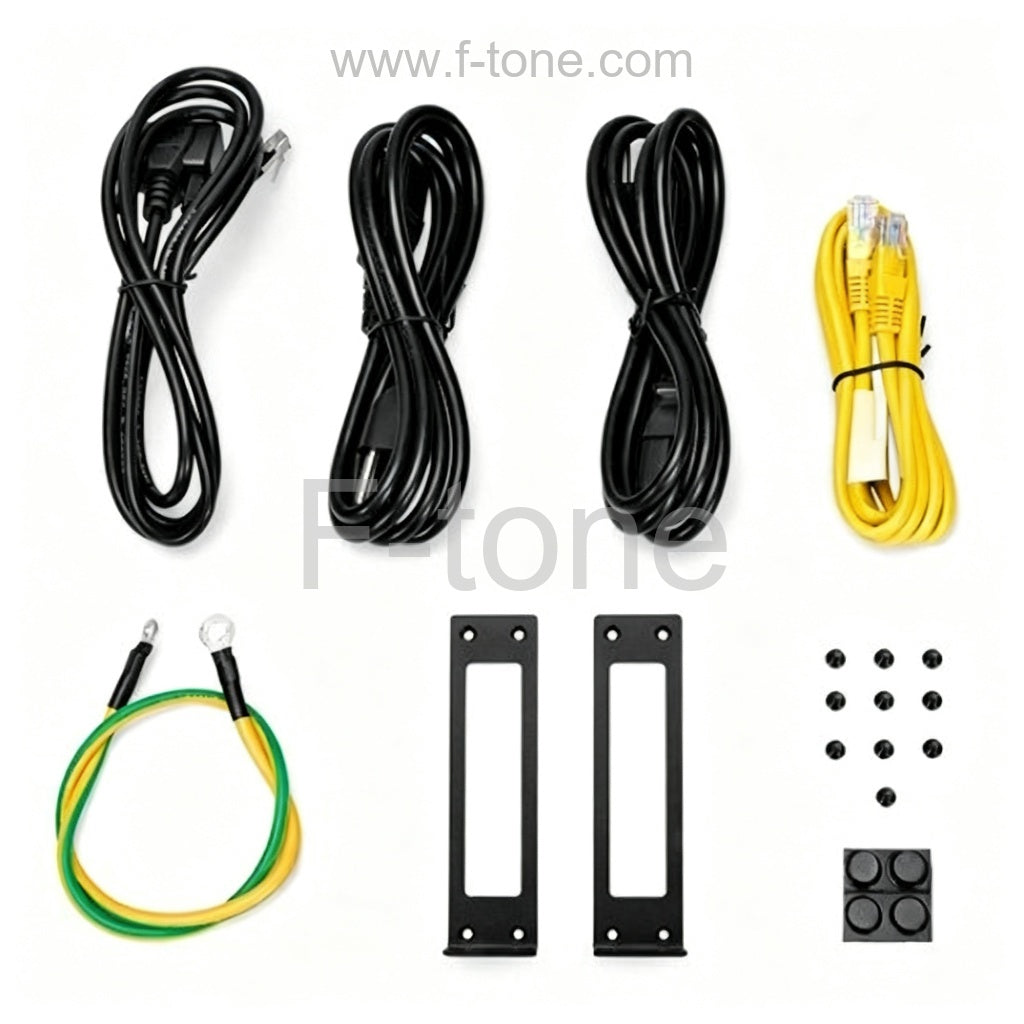

Accessories List
The S5800-8TF12S switch is shipped with the following stuff, make sure you get all those things before installing your switch.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
