OM3 Multimode Simplex Tight Buffer Round Riser Indoor Fiber Optic Cable

OM3 Multimode Simplex Tight Buffer Round Riser Indoor Fiber Optic Cable

View full details

Part Number: SFC-OM3R

OM3 50/125μm Multimode Simplex Tight Buffer Round Riser Indoor Fiber Optic Cable

This is a 50/125/900µm fiber optic indoor cable, could be used as patch cords and pigtails, could be a interconnection of fiber optic equipment.

The fiber is coated with 250µm soft plastic, and then covered with a 900µm tight buffer thick layer of hard plastic, which add some fiber protection.
The Kevlar yarn material ensure a good performance of tensile strength. And the Flame retardant outer jacket could be used in Riser environment.The cable diameter is 2.0mm,3.0mm optional.

Item Details

  • Fiber Count: 1 Fiber
  • Fiber Type: 50/125μm Multimode
  • Out Jacket: Riser Rated
  • Cable DIA.: 2.0mm, 3.0mm Optional
  • Fiber Color: Aqua

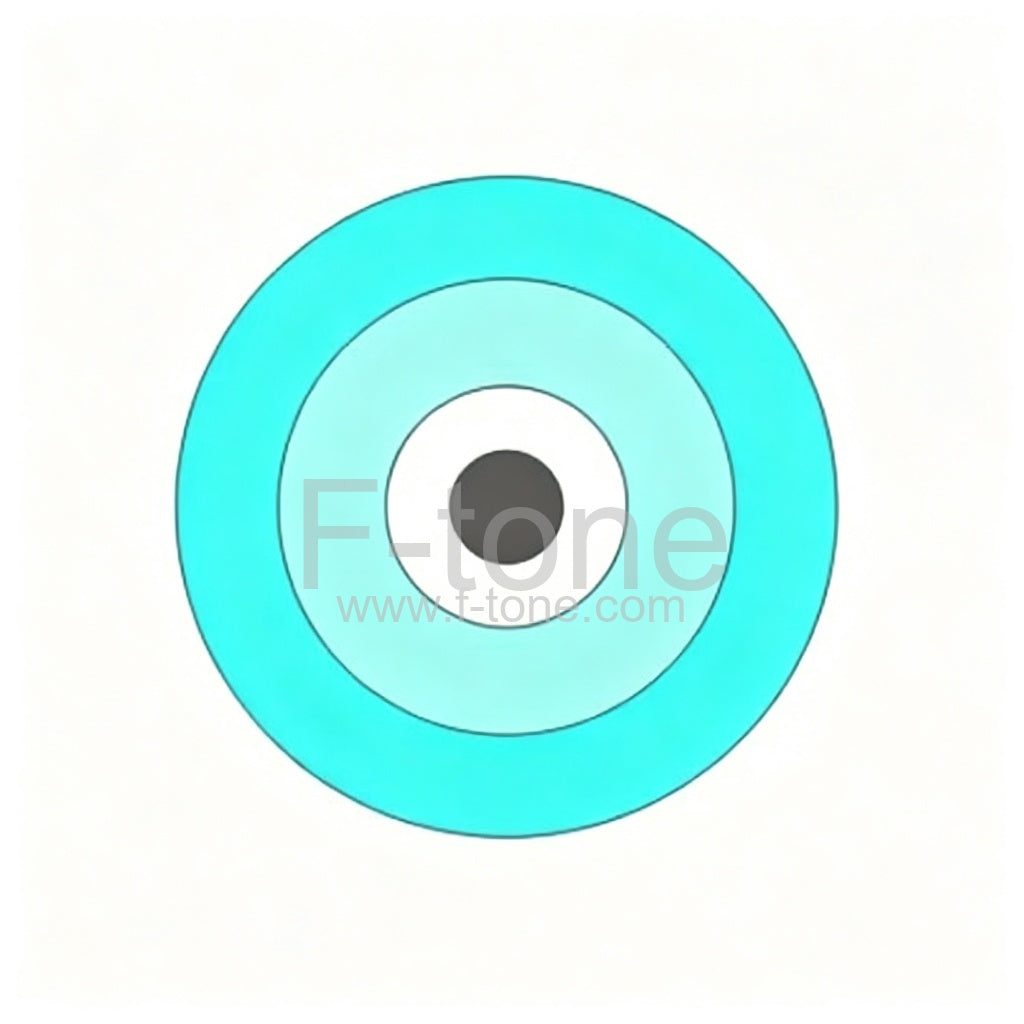

Cable Structure

Caractéristiques Doux, flexible et facile à faire décapage, épissage et câblage Bonnes caractéristiques mécaniques et environnementales Les caractéristiques mécaniques et physiques de la gaine extérieure répondent aux exigences des normes pertinentes Le fil de Kevlar assure une bonne résistance à la traction Un tampon étanche de 900 μm protège bien la fibre
Application
  • Single core round tight buffered indoor fiber optical cable applications
  • Used in patch cords and pigtails
  • Interconnection of fiber optic equipment

Package

Package 1
Package 2
Paquete 1: generalmente para cable de interior, cables livianos. Paquete 2: generalmente para cables para exteriores, cables pesados Por lo general, para cada rollo, la longitud del cable es de 2 km, pero podríamos proporcionar un paquete personalizado para diferentes longitudes de cable.

Mark

Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX

Cable production throughout the chart

Tight buffer Diameter Out Sheath
Diameter		 Weight Minimum Allowable Tensile Strength
(N)		 Minimum Allowable Crush Load
（N/100mm)		 Minimum Bending Radius
(MM)		 Storage
Temperature
（MM) （MM) （KG) short term long term short term long term short term long term （℃）
0.6 1.6 3.5 150 80 500 100 20D 10D -20+60
0.6 1.8 4 150 80 500 100 20D 10D -20+60
0.9 2 5 150 80 500 100 20D 10D -20+60
0.9 2.4 6 150 80 500 100 20D 10D -20+60
0.9 2.8 7 150 80 500 100 20D 10D -20+60
0.9 3 8 150 80 500 100 20D 10D -20+60

G.652 50/125µm 62.5/125µm
Attenuation
(+20°C) (dB/km)		 @850nm ≤3.0 ≤3.0
@1300nm ≤1.0 ≤1.0
@1310nm ≤0.36
@1550nm ≤0.22
Bandwidth (Class A) (MHz·km) @850nm ≥600 ≥200
@1300nm ≥1200 ≥600
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc (nm) ≤1260


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
