The SFP28 transceiver provides 10/25GBase-SR throughput up to 100m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. It provides connectivity option for 25G Ethernet, 10G Ethernet and data center. It is fully compliant with the SFP28 MSA, SFF-8431, SFF-8432, SFF-8472 and IEEE802.3by standard.
Part Number: SFP-10/25G-CSR-S=FM

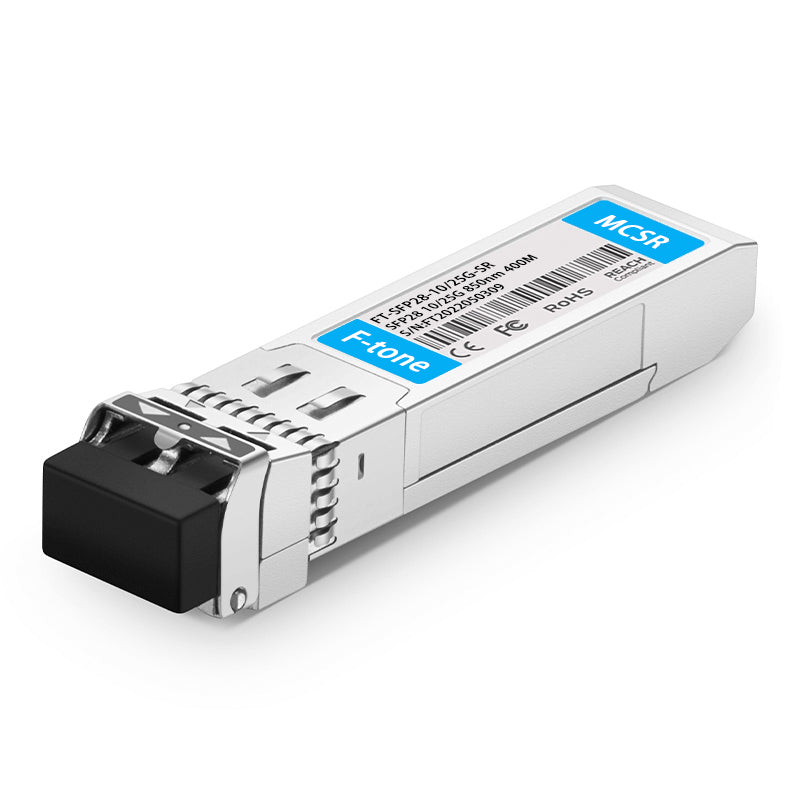

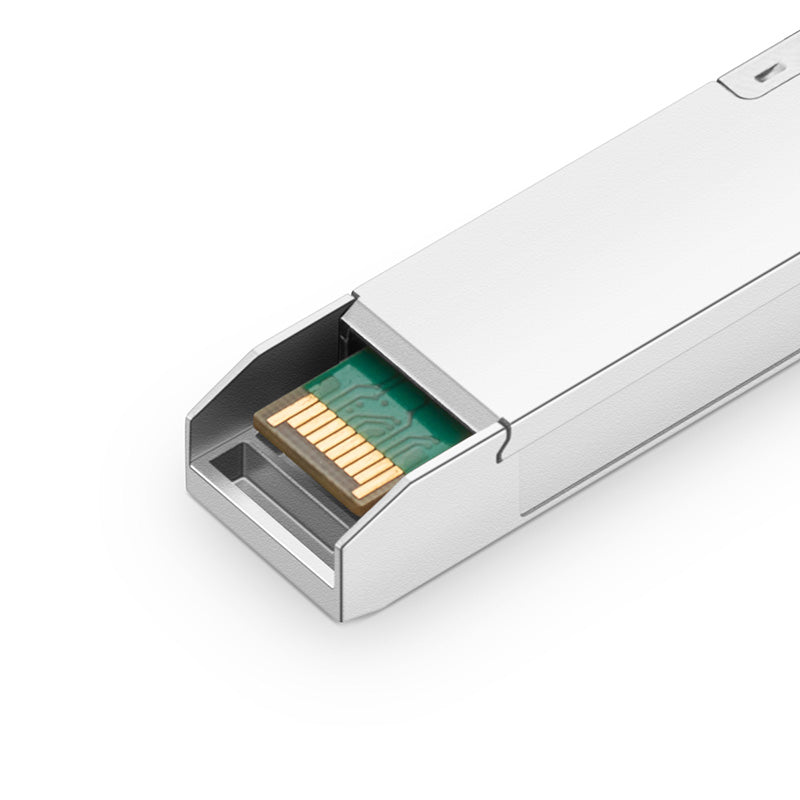

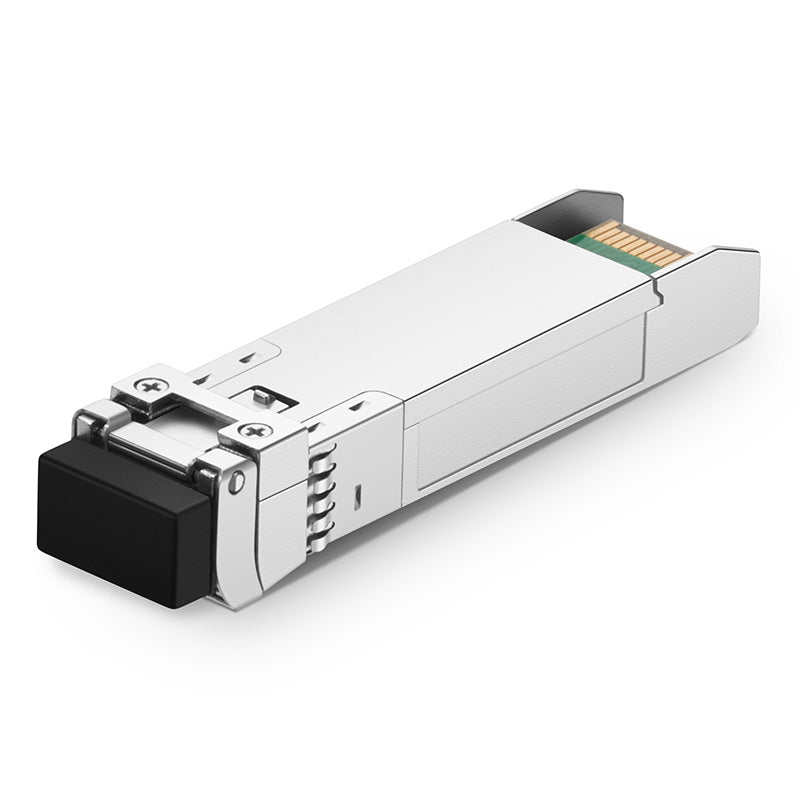

Cisco SFP-10/25G-CSR-S Compatible 10/25GBASE-SR SFP28 DOM Optical Fiber Transceiver Module for Data Center (MMF, 850nm, 400m, LC, DOM)
Spotlights
- Dual-rate 10G/25G, VCSEL+PIN, Built-in CDR
- Fully Compatible with 200+ Vendors
- EMC Support, Anti Electro-Static Discharge and Radiation Resistant
- For 25GBASE Ethernet, 10GBASE Ethernet Applications
- Class 1 Laser Safety
- Up to 100m/70m over OM4/OM3 (Support RS-FEC, FC-FEC)
Description
| Part Number | SFP-10/25GSR-85 | Vendor Name | F-tone |
|---|---|---|---|
| Form Factor | SFP28 | Max Data Rate | Dual Rate 10Gbps and 25.78Gbps |
| Wavelength | 850nm | Max Cable Distance | 400m@OM4/70m@OM3 at 25G 400m@OM3 at 10G |

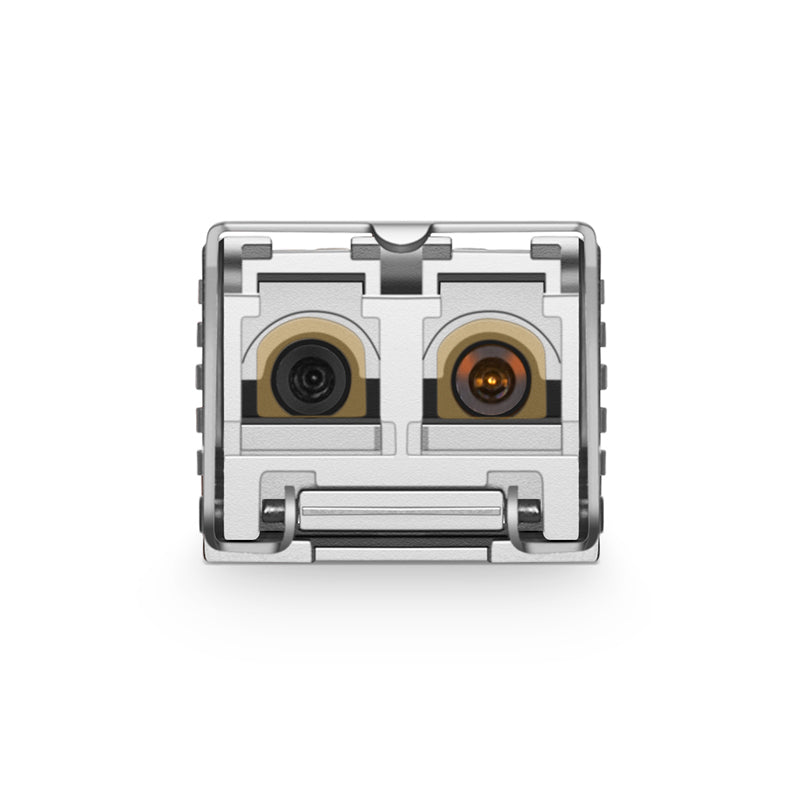

| Connector | LC Duplex | Cable Type | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -5~2.4dBm | Receiver Sensitivity | ＜-10.3dBm |
| Powerbudget | 5.3dB | Receiver Overload | 2.4dBm |
| Power Consumption | ＜1W | Extinction Ratio | 2dB |
| Modulation Format | NRZ | CDR | TX & RX Built-in CDR |
| Transmit and Dispersion Penalty | 3dB | FEC Function | Support RS-FEC, FC-FEC |
| Packaging Technology | COB (chip on board) Packaging | EMC (Electromagnetic Compatibility) | Supported |
| Protocols | IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, eCPRI | MTBF | 200,000 Hours |
| Application | 25GBASE Ethernet, Data Center, Campus, Enterprise | Warranty | 5 Years |
Datasheet
| Part Number | Distance | Fibers | Port |
|---|---|---|---|
| SFP-25G-SR-SFM | 100m | MMF | LC Duplex |
| SFP28-25GLR-31FM | 10km | SMF | LC Duplex |
| SFP28-25G-BXFM | 10km | SMF | LC Simplex |
| SFP28-25G-BXFMI | 10km | SMF | LC Simplex |
| CWDM-SFP25G-40SFM | 40km | SMF | LC Duplex |
Product Spotlights
High Performance and Reliability
Macom 25G Chip, VCSEL+PIN
Low power consumption＜1W, saving power
Stainless steel material, anti-corrosion, and salt spray resistance
Macom 25G Chip, VCSEL+PIN
Low power consumption＜1W, saving power
Stainless steel material, anti-corrosion, and salt spray resistance
Wide Application
Fully compatible with almost all Cisco devices
Easily upgrade from 10G to 25G architectures, and also interoperate with 40G and 100G optical breakouts
Suitable for Data Center, Campus, Enterprise and other network environments
Fully compatible with almost all Cisco devices
Easily upgrade from 10G to 25G architectures, and also interoperate with 40G and 100G optical breakouts
Suitable for Data Center, Campus, Enterprise and other network environments
Protocols and Safety Standards
Class 1 laser safety compliant
Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant
Compliant with IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, SFF-8431, SFF-8402
Class 1 laser safety compliant
Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant
Compliant with IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, SFF-8431, SFF-8402
Quality Certifications
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
