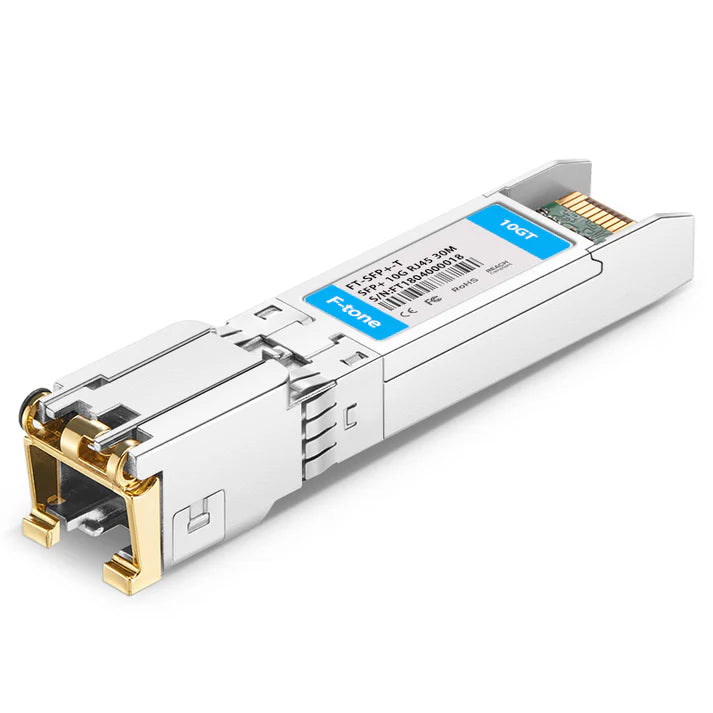

10GBASE-T SFP+ Copper RJ-45 30m Transceiver Module

10GBASE-T SFP+ Copper RJ-45 30m Transceiver Module

View full details

Part Number: SFP-10G-T-FM

10GBASE-T SFP+ Transceiver Module (Copper, 30m, RJ-45)

10GBASE-T SFP+ compatible SFP+ transceiver provides 10GBase-T throughput up to 30m over cat6a/cat7 copper cable via RJ-45 connector. This transceiver is compliant with IEEE 802.3an, IEEE 802.3az, SFF-8431 and SFP+ MSA. Each SFP+ transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, this easy to install, hot swappable 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and different other networking places using cooper connections.

Spotlights

  • High Quality Marvell Chip
  • Up to 30m via Cat6a/Cat7 or Better
  • ≤2.3w Low Power Consumption
  • Fully Compatible with 200+ Vendors
  • Hot Pluggable SFP+ MSA Compliant

Part Number

Form Factor SFP+ Data Rate 10Gbps
Power Consumption ≤2.3W Cable Distance 30m@Cat6a/Cat7 or Better
Connector RJ-45 Cable Type Copper
DDM/DOM Not Supported EMC (Electro Magnetic Compatibility) Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F) MTBF 5,000,000 Hours
Protocols IEEE 802.3an, IEEE 802.3az, SFP+ MSA, SFF-8431 Warranty 5 Years

Datasheet

Part Number Distance Fibers Port
SFP-10G-T-FM 30m Cat6a/7 RJ-45
SFP-10G-LRM31FM 220m SMF/MMF LC
SFP-10G-SR85FM 300m MMF LC
DSFP-1/10G-SX85 300m MMF LC
SFP-10G-LRM2-31 2km MMF LC
DSFP-1/10G-LX31 10km SMF LC
SFP-10G-LR31FM 10km SMF LC
SFP-10G-2LR31FM 20km SMF LC
SFP-10G-ER31FM 40km SMF LC
SFP-10G-ER55FM 40km SMF LC
SFP-10G-ZR55FM 80km SMF LC
SFP-10G-ZR100FM 100km SMF LC

Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Compatibility Matrix

Having been individually tested on a large amount of branded switches and servers, F-tone generic compatible transceivers break free of vendor lock-in and guarantee continued flawless interoperability and compatibility with third party vendors as below.

ADVA Chelsio A10 Networks Cumulus Linux Gnoda Harting Hitachi Hillstone
D-Link Emulex EdgeCore F5 Networks Hirschmann IMC Networks Ixia Infinera
MRV Palo Alto Networks Nokia Q-logic Inteno JDS Uniphase ISIS Linksys
Solarflare TP Link SMC UniFi Long haul Lanner LevelOne LCSI
Ubiquiti ZYXEL ZTE AOM-CTG-i1SM Milan McAfee Mikrotik Myricom
ASGA Atto Accedian Networks Axis NetScout N-TRON Netscaler NEC
Agilent-Avago Allnet Allied Telesis Altera Stratix Netonix Omnitron Nimble Storage Optelian
Amer Networks Actelis Asante Allen Bradley Stratix Optone Opnext Orckit Optech
Aerohive SR2148P Alaxala Apple Avid ISIS Storage PENo ENto Networks Planet Penguin Arctica PicoLight
Barnfind Blackmagic Broadcom Ceragon QSAN RAD QNAP Redback
Coriant Cyberroam CTCUnion Compaq Ruijie Raiscom Ruggedcom RiverStone
CTC Union Centec Check Point Digital Scientific Atlanta Synology Siemens Seven solution
DCN Delta DATACOM Engenius SAGEM Source Photonics Sixnet Sonnet
Ericsson ELINX EMC ECI Speednt SUN SDN Sophos
FibroLAN Fujitsu Fortinet Fluke Network Telco Transition Networks Tejas TRENDnet
Fortigate Gigamon Fiberhome Gigalight Tellabs Xilinx Vixel XMC20 Keymile


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests

About F-tone Networks

F-tone Networks is now a world leader in development of optical transceivers and provide a wide range of high-speed optical solutions for optical communication networking, especially for AI, Data Center, enterprise data networking, Industry, aerospace, mining, shipbuilding, railway, metro, long haul transport networking, and mobile access networking applications
F-tone Networks invested in foundational photonics technologies and extensive product development and engineering with global presence in many area also.
