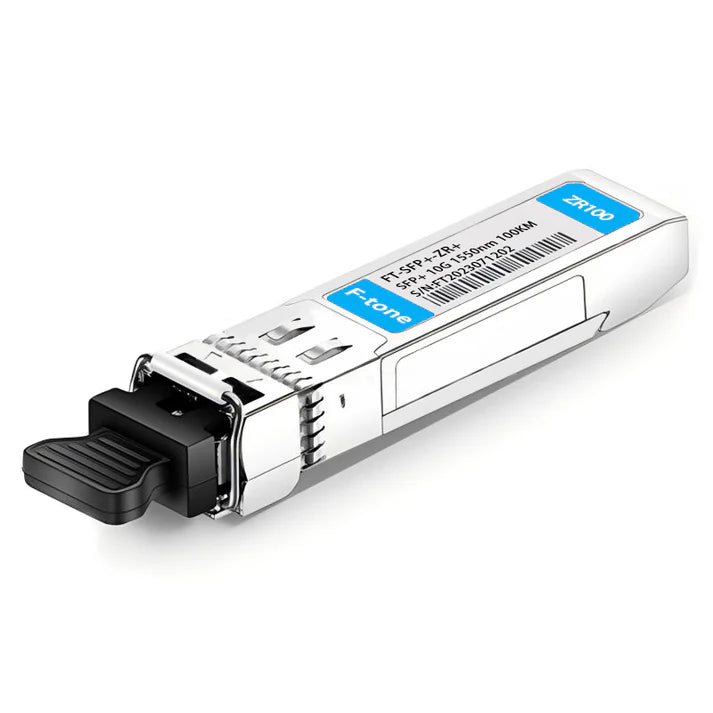

10GBASE-ZR SFP+ 1550nm 100km DOM Transceiver Module SFP-10G-ZR100

10GBASE-ZR SFP+ 1550nm 100km DOM Transceiver Module SFP-10G-ZR100

View full details

Part Number: SFP-10G-ZR100FM

Cisco SFP-10G-ZR100 Compatible 10GBASE-ZR SFP+ Transceiver Module (SMF, 1550nm, 100km, LC, DOM)

Sfp+ 100km, Product Details

Part Number SFP-10G-ZR100 Vendor Name F-tone.COM
Form Type SFP+ Max Data Rate 10Gbps
Wavelength 1550nm Max Cable Distance 100km
Interface LC duplex Optical Components EML 1550nm
Cable Type SMF DOM Support Yes
TX Power 0~4dBm Receiver Sensitivity < - 25dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) Protocols MSA Compliant

Datasheet

Part Number Distance Fibers Port
SFP-10G-T-FM 30m Cat6a/7 RJ-45
SFP-10G-LRM31FM 220m SMF/MMF LC
SFP-10G-SR85FM 300m MMF LC
DSFP-1/10G-SX85 300m MMF LC
SFP-10G-LRM2-31 2km MMF LC
DSFP-1/10G-LX31 10km SMF LC
SFP-10G-LR31FM 10km SMF LC
SFP-10G-2LR31FM 20km SMF LC
SFP-10G-ER31FM 40km SMF LC
SFP-10G-ER55FM 40km SMF LC
SFP-10G-ZR55FM 80km SMF LC
SFP-10G-ZR100FM 100km SMF LC

Quality Certification

Quality and standards are the foundation of F-tone.COM. We are dedicated to providing customers with outstanding, standards-compliant products and services. F-tone.COM has passed many quality system verifications, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Lifetime Warranty

All the fiber optic products in F-tone.COM are fully warranted against defects in material and workmanship with a lifetime guarantee. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and sfp+ 100km materials over extended time and use.

Quality Control System:

Our Test Assured ProgramTake a look at our optics test program and see what truly sets us apart.

Demonstration

Cisco Nexus 9300 Series (Switch/Module : N9K-C9396PX; Uplink Module : N9K-M12PQ )
Cisco ASR 9000 Series (Modular Line Card : A9K-MPA-8X10GE)


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
