Part Number: SFP-1G55-80-D

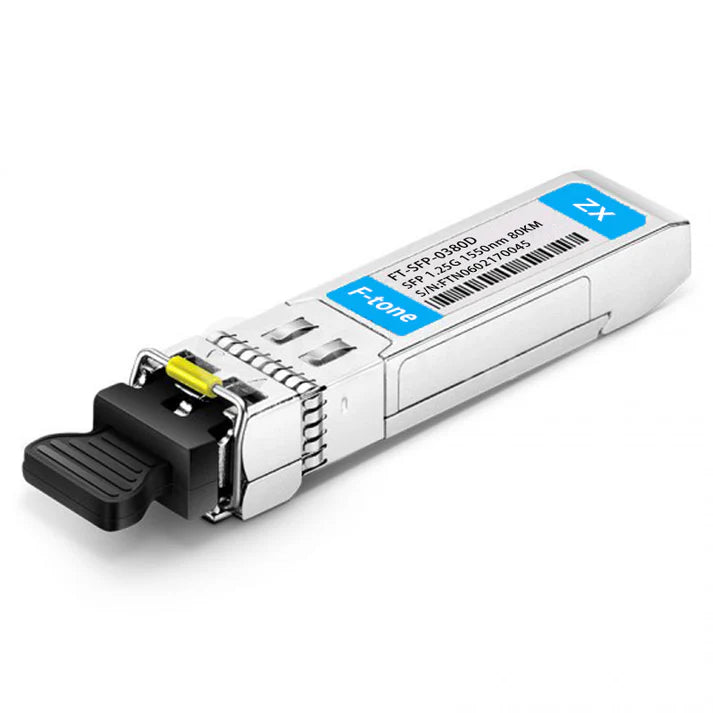

1000BASE-ZX SFP 1550nm 80km Transceiver Dell 430-4586 Compatible
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 80km transmission distance with SMF. This 1000base-zx SFP offers the same function with Dell 430-4586 and it is fully compatible with Dell devices.The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Key Features
- Data-rate of 1.25Gbps/1.063Gbps operation
- 1550nm DFB laser and APD photodetector for 80km transmission
- 80km with 9/125 µm SMF
- Hot-pluggable SFP footprint duplex LC connector Interface
- Class 1 FDA and IEC60825-1 Laser Safety Compliant
- Compatible with SFP MSA
- Compatible with SFF-8472
- +3.3V single power supply
- Average Output Power:0~ 5dBm
- Receiver Sensitivity:-24dBm
Applications
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Ordering Information
| Part No. | Dell Genuine | Data Rate (Gbps) | Wavelength (nm) | TX Power (dBm) | Re Sens. (dBm) | Transmission Distance | Fiber Type | Connector Type | Temp. Range | Digital Diagnostics |
|---|---|---|---|---|---|---|---|---|---|---|
| SFP-1G85-5M | 320-2881 | ≤1.25 | 850nm | -9.5~-3 | ﹤-17 | 550m | MMF | LC | Com./Ex./Ind. | Yes/No |
| SFP-1G85-5MA | 407-10435 | ≤1.25 | 850nm | -9.5~-3 | ﹤-17 | 550m | MMF | LC | Com./Ex./Ind. | Yes/No |
| SFP-1G85-5MB | 790-10070 | ≤1.25 | 850nm | -9.5~-3 | ﹤-17 | 550m | MMF | LC | Com./Ex./Ind. | Yes/No |
| SFP-1G31-10 | 320-2879 | ≤ 1.25 | 1310 | -9.5~-3 | ﹤ -21 | 10km | SMF | LC | Com./Ex./Ind. | Yes/No |
| SFP-1G31-10A | 790-10071 | ≤ 1.25 | 1310 | -9.5~-3 | ﹤ -21 | 10km | SMF | LC | Com./Ex./Ind. | Yes/No |
| SFP-1G31-10B | 407-10436 | ≤ 1.25 | 1310 | -9.5~-3 | ﹤ -21 | 10km | SMF | LC | Com./Ex./Ind. | Yes/No |
| SFP-1G55-80 | 430-4586 | ≤ 1.25 | 1550 | 0~5 | ﹤ -24 | 80km | SMF | LC | Com./Ex./Ind. | Yes/No |
| SFP-1GT-1M | 310-7225 | ≤ 1.25 | - | - | - | 100m | SFP | RJ45 | Com. | Yes/No |
Packaging
- Antistatic bag
- Packed on pallets in a box(Default Customer Options)
- Specific Labels as Request
- Seperate white Box for each transceiver
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, F-tone provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for F-tone in the world.
- OEM/ODM order is available
- We can supply SFP-1G55-80 according to your requirements, and design SFP-1G55-80 label and packaging for your company. We welcome any inquiry for customized 100M & 1G SFP optical transceiver.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ([email protected]) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying 10G XENPAK From Original Manufacturer F-tone Directly.
F-tone is an professional manufacturer & supplier of 100M & 1G SFP transceivers. All of our 100M & 1G SFP transceivers are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee 100M & 1G SFP transceivers to work in your system and all of our 100M & 1G SFP transceivers come with a lifetime advance replacement warranty. If you have questions about 100M & 1G SFP optics, please feel free to contact us at [email protected].
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
