Part Number: SG-SFP-550E3

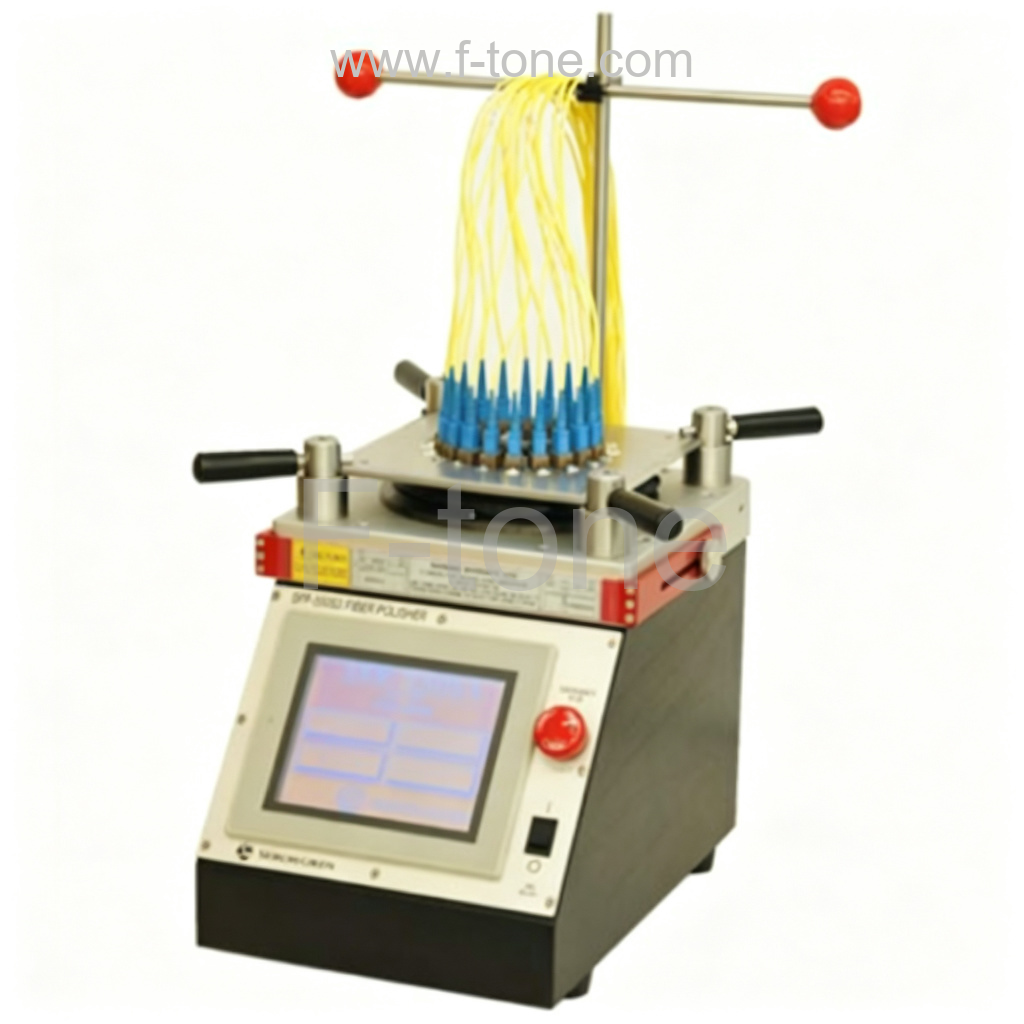

SFP-550E3 High Capacity Programable Polisher with standard package includes
SELKOH GIKEN SFP-550C MASS PRODUCTION POLISHING MACHINE
This high-performance polish machine offers superior quality and maximum throughput at a very affordable price. Utilizing a patented, high speed rotation and revolution method, this polisher prepares connectors which exceed Telcordia GR-326 requirements for end face geometry. Standard capacity 18 connectors, up to 48 LC/MU.
FEATURES
• Compatible with all existing
SFP series I.P.C. Holders
• Increased turntable speed
• Exceeds all requirements for
GR-326 End-Face Geometry
requirement
| Description | Part # |
|---|---|
| SFP-550C Polisher with standard package | SFP-550C |
| SFP-550E3 High Capacity Programable Polisher with standard package | SFP-550E3 |
| FC/PC Polish Fixture (20 position) | PH55-FP-20 |
| FC/APC Polish Fixture (18 position) | PH55-FP8RC-18-1 |
| SC/PC Polish Fixture (20 position) | PH55-CP-20 |
| SC/APC Polish Fixture (18 position) | PH55-CP8C-18 |
| ST/PC Polish Fixture (20 position) | PH55-SP-20 |
| LC Polish Fixture (24 position) | PH55-PL-24 |
| MT/PC Fixture, 24 Position (1mm Protrusion Type) | PH55-MT-24S1 |
ACCESSORIES FOR SFP-550C
| Description | Part # |
|---|---|
| 30µm Silicon Carbide Adhesive Removal Film | GA5D |
| 9µm Diamond Rough Polish Film | DR5D-9U |
| 5µm Diamond Rough Polish Film | DG5D-5U |
| 3µm Diamond Middle Polish Film | DH5D-3U |
| 1.5µm Diamond Middle Polish Film | DI5D-1.5U |
| 1µm Aluminum Oxide Final Polish Film | SF5D |
| 0.5µm Silica Final Polish Film | XF5D |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
